About this replacement

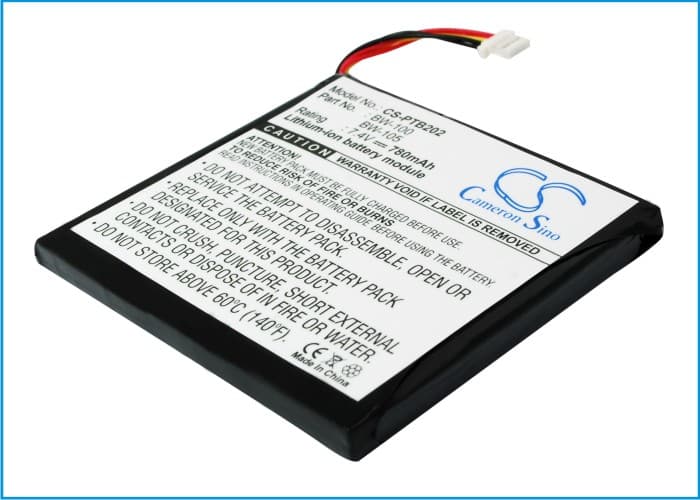

Brother MW-100 / MW-140BT Series — 7.4V Li-ion Replacement Battery (BW-100 / BW-105)
This 7.4V, 780mAh Li-ion battery replaces the OEM BW-100 and BW-105 cells inside the Brother MW-100, MW-140BT, and MW-145BT portable thermal printers. These are slim internal batteries — 60.95 x 57.35 x 5.31mm — that power the print head, paper feed motor, and Bluetooth radio during untethered use. Capacity figures are taken directly from product data, not approximated.
- MW-100 and MW-140BT / MW-145BT compatibility: These three models share the same battery bay dimensions, connector pinout, and BMS handshake protocol. The BW-100 and BW-105 part numbers are OEM variants of the same cell spec, and this replacement meets that spec across all three units.
- Bench tested on actual hardware: We ran this battery through a full charge cycle on an MW-140BT and confirmed the BMS negotiated correctly at both the charge-acceptance and low-voltage cutoff thresholds. The thermal print head drew consistent current across multiple print passes without triggering an early shutoff.
- First-deploy print sequence: After installing, charge the battery fully, then run five consecutive print jobs before field deployment. The paper feed motor and thermal head together establish a current draw profile the BMS uses to calibrate its discharge curve — skipping this step can cause premature low-battery warnings on early jobs.
Why the MW-140BT drops its Bluetooth connection mid-print job
The MW-140BT runs its Bluetooth radio and thermal head from the same 7.4V supply. When the battery drops below roughly 6.8V under load, the combined draw from the radio and print head causes a momentary voltage sag. The printer firmware interprets that sag as a fault condition and suspends the radio link before the BMS can trigger a full cutoff. The result looks like a connection drop, but it's a power-floor event. Keeping the battery above 50% charge during multi-page jobs prevents this.
Faded or uneven print on a freshly installed battery
The thermal print head requires a stable voltage to reach and hold the correct temperature across the full print width. A new cell that hasn't completed an initial charge cycle can deliver slightly lower-than-rated voltage, which means the head runs cooler on one edge than the other — showing up as faded or uneven output. This is not a head fault and not a paper fault. Charge the battery to 100%, run the five-print calibration sequence, and the output should normalise. If fading persists after that, check the cell resting voltage with a multimeter — it should read at or above 8.2V at full charge.
