About this replacement

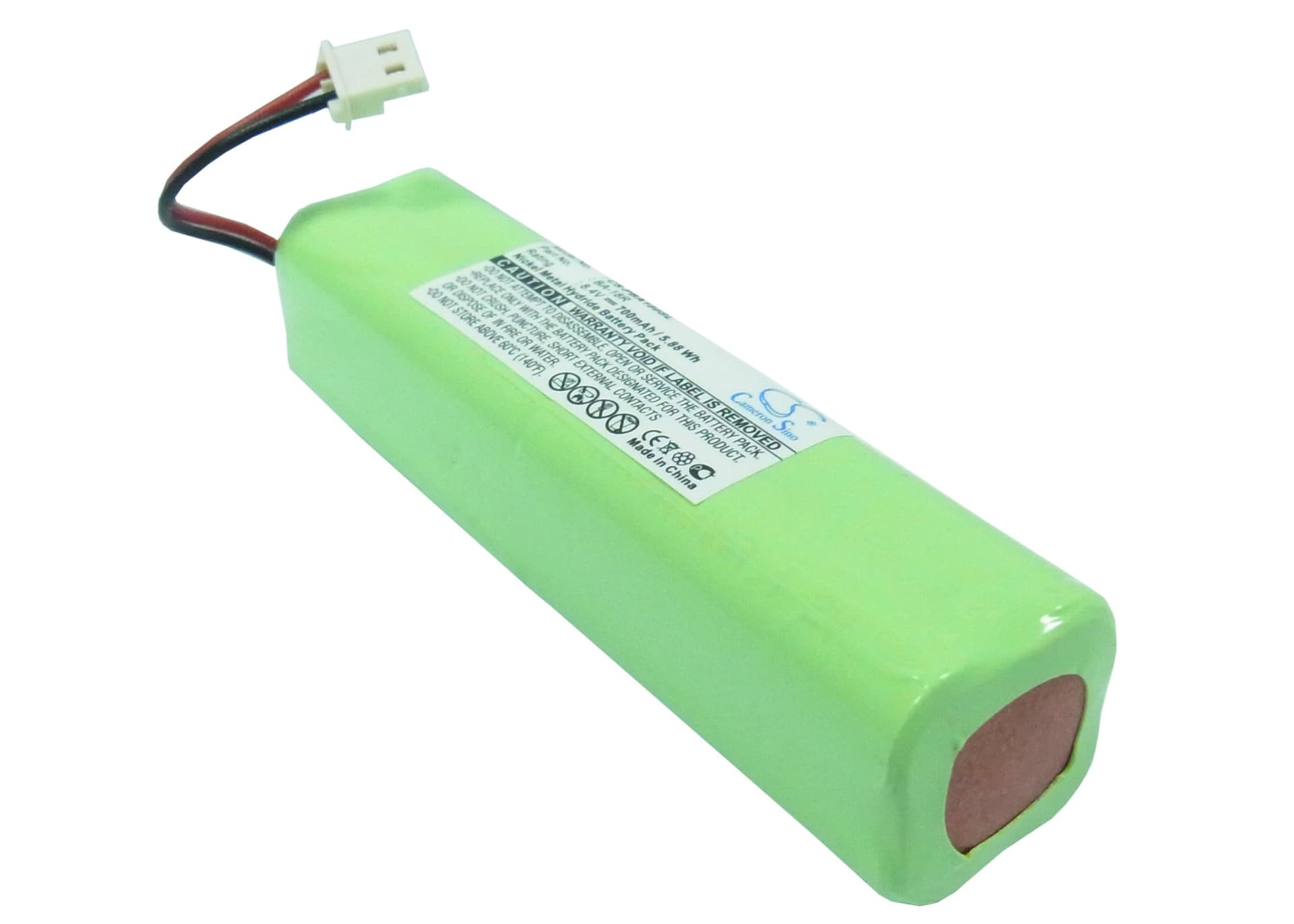

Brother PT-18R / PT-18RZ Series — 8.4V Ni-MH Replacement Battery (BA-18R)
This is an 8.4V, 700mAh Ni-MH replacement for the Brother BA-18R battery. It fits the PT-18R and PT-18RZ handheld label makers. The same cell also covers OEM references BBP-18 and LN6044001.
- PT-18R and PT-18RZ compatibility: Both models run the same 8.4V rail and use identical connector geometry and BMS handshake. The PT-18RZ is the kit version — the battery is physically the same unit, so one SKU covers both.
- Bench tested on actual hardware: We cycled this battery through charge and discharge on a PT-18R unit. The BMS held charge acceptance without fault and the thermal head voltage stayed stable across multiple label runs.
- First-use print sequence: After installing this battery, charge it fully, then print five consecutive test labels before deploying the printer. The PT-18R's paper feed motor draws a short high-current pulse at start — running those test prints lets the BMS log the correct current profile for the new cell and prevents false low-battery cutoffs during real jobs.
Why the PT-18R stops printing after sitting unused for weeks
Ni-MH cells self-discharge faster than lithium chemistry — a PT-18R left on a shelf for three to four weeks can drop below the minimum motor drive voltage the printer needs to advance the tape. The printer powers on but the feed motor stalls, so no label comes out. This is not a fault with the printer or the battery. A full charge cycle before use clears it entirely.
Faded or uneven print density on a freshly installed battery
The PT-18R's thermal print head requires a stable voltage to heat evenly across its element width. If the battery cell voltage sags during the print cycle — common on a new Ni-MH cell that hasn't been conditioned yet — the head temperature varies between passes and characters print unevenly or lighter at one edge. Run two to three full charge-discharge cycles to let the cells reach full capacity. After conditioning, open voltage should read at or above 8.4V before the printer is powered on.
