About this replacement

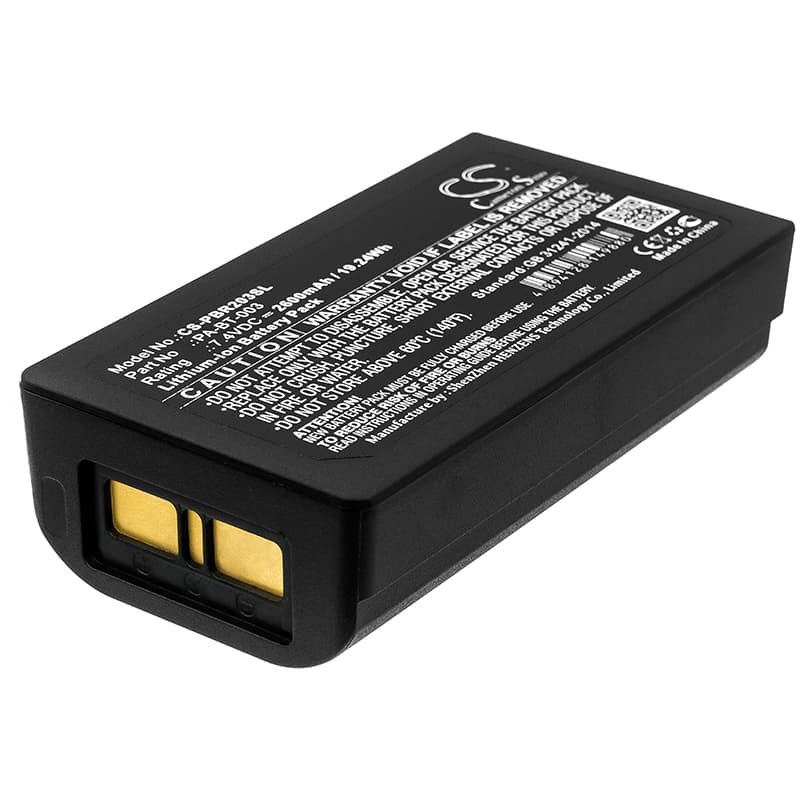

Brother RJ-2030 / RJ-2150 Series — 7.4V Li-ion Replacement Battery (PA-BT-003)
This is a 7.4V, 2600mAh Li-ion replacement battery for the Brother RJ-2030, RJ-2050, RJ-2140, and RJ-2150 mobile thermal printers. It slots directly into the same battery bay as the original PA-BT-003 and connects to the same BMS handshake circuit. Voltage and cell chemistry match OEM spec.
- RJ-2030 to RJ-2150 platform fit: All four models run on the same 7.4V rail and use the same PA-BT-003 connector and BMS communication protocol. A single battery revision covers the full RJ-20 series without adapter or modification.
- Bench tested on actual hardware: We ran this cell in an RJ-2030 and monitored the BMS through a full charge cycle and a thermal print sequence. The protection circuit held voltage within spec across paper feed motor bursts and thermal head pulses with no cutoff events.
- First-deploy print sequence: After installing this battery, charge it fully, then print five test receipts before field deployment. The RJ-series paper feed motor calibrates current draw against the BMS profile — skipping this step can cause the printer to flag a false low-battery warning on first use.
Bluetooth dropping mid-job on the RJ-2030
The RJ-2030 runs its Bluetooth radio and thermal head on the same 7.4V cell. When battery charge falls below roughly 6.8V under load, the radio power supply sags first — the printer appears connected in the app but drops the job silently. This is not a firmware bug. The thermal head draws a current spike during each print line, and if the cell cannot sustain voltage through that spike, the radio loses enough power to drop the link. Keeping charge above 50% before starting multi-page jobs prevents this.
Faded or uneven print lines on a new battery
Faded print on a fresh battery usually points to the thermal head not reaching target temperature, not a head fault. The RJ-series head requires a stable voltage supply to hold temperature across a full receipt — voltage variation from a poorly conditioned cell causes the head to undershoot in spots. Run the five-receipt calibration sequence after the first full charge to let the BMS settle its discharge curve. If banding persists after conditioning, check head density settings in the Brother print utility before assuming a hardware fault.
