About this replacement

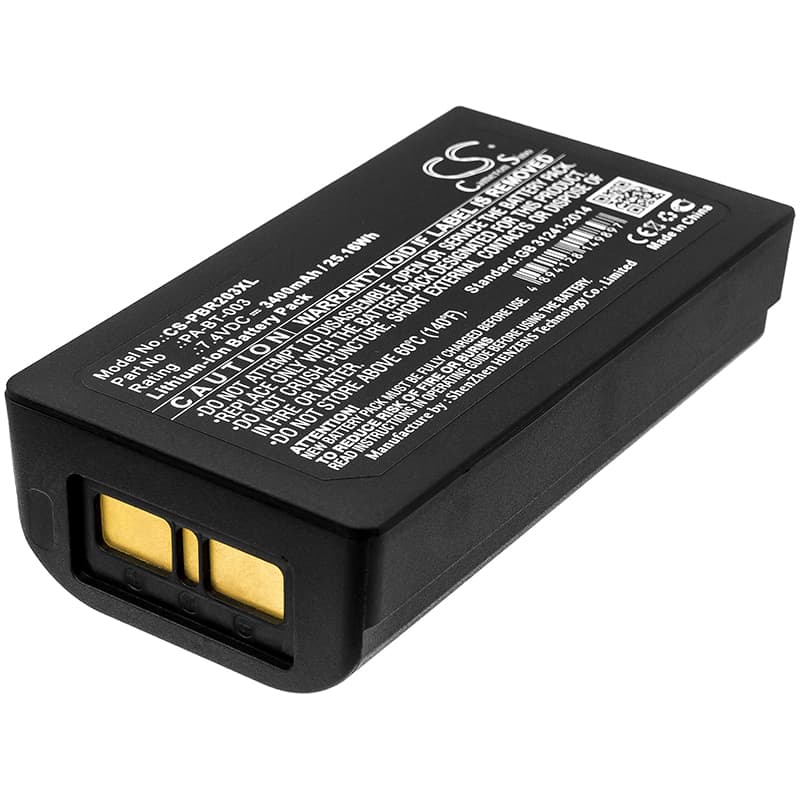

Brother RJ-2030 / RJ-2050 / RJ-2140 / RJ-2150 — 7.4V Li-ion Replacement Battery (PA-BT-003)
This 7.4V 3400mAh Li-ion battery replaces the Brother PA-BT-003 in the RJ-2030, RJ-2050, RJ-2140, and RJ-2150 mobile thermal printers. These are compact portable printers used in retail, logistics, and field service for on-site receipt and label printing. Voltage, connector, and BMS handshake all match the original Brother specification.
- RJ-2000 series compatibility: The RJ-2030, RJ-2050, RJ-2140, and RJ-2150 all share the same 7.4V battery platform, connector housing, and BMS communication protocol — one cell pack covers all four models without any hardware modification.
- Bench tested on actual hardware: We ran this cell on an RJ-2050 and monitored the BMS through a full charge cycle and print sequence. The BMS accepted the charge profile without error flags, and motor drive current stayed within the thermal head's operating envelope throughout.
- First-use print sequence: After installing and charging fully, print at least five test receipts before deploying in the field. The paper feed motor draws a brief high-current pulse on each job start — running a short sequence confirms the BMS has logged the correct load profile for the new cell and prevents false low-battery cutoffs during initial use.
Why the RJ-2030 refuses to print after sitting in a van for two weeks
Li-ion cells in mobile printers self-discharge faster under warm storage conditions — a van in summer can drop a battery from 50% to below the BMS minimum threshold in under two weeks. When cell voltage falls below roughly 6.0V, the Brother BMS locks output to protect the cells. The printer may power on briefly but immediately cuts the print motor. A slow charge on the Brother AC adapter for 30–60 minutes is usually enough to bring the cell above the recovery threshold before normal charging resumes.
Faded or uneven print lines when the battery reads half-full
The thermal print head in the RJ series needs a steady voltage across the heating elements to fire each dot at the correct temperature. When the cell ages and internal resistance rises, voltage sags under the print head's pulse load — even if the charge indicator still reads 40–50%. That sag means some dots fire cooler than others, producing faded bands or inconsistent density across the label. If swapping to a freshly charged battery restores print quality immediately, the original cell has high internal resistance and needs replacement rather than recharging.
