About this replacement

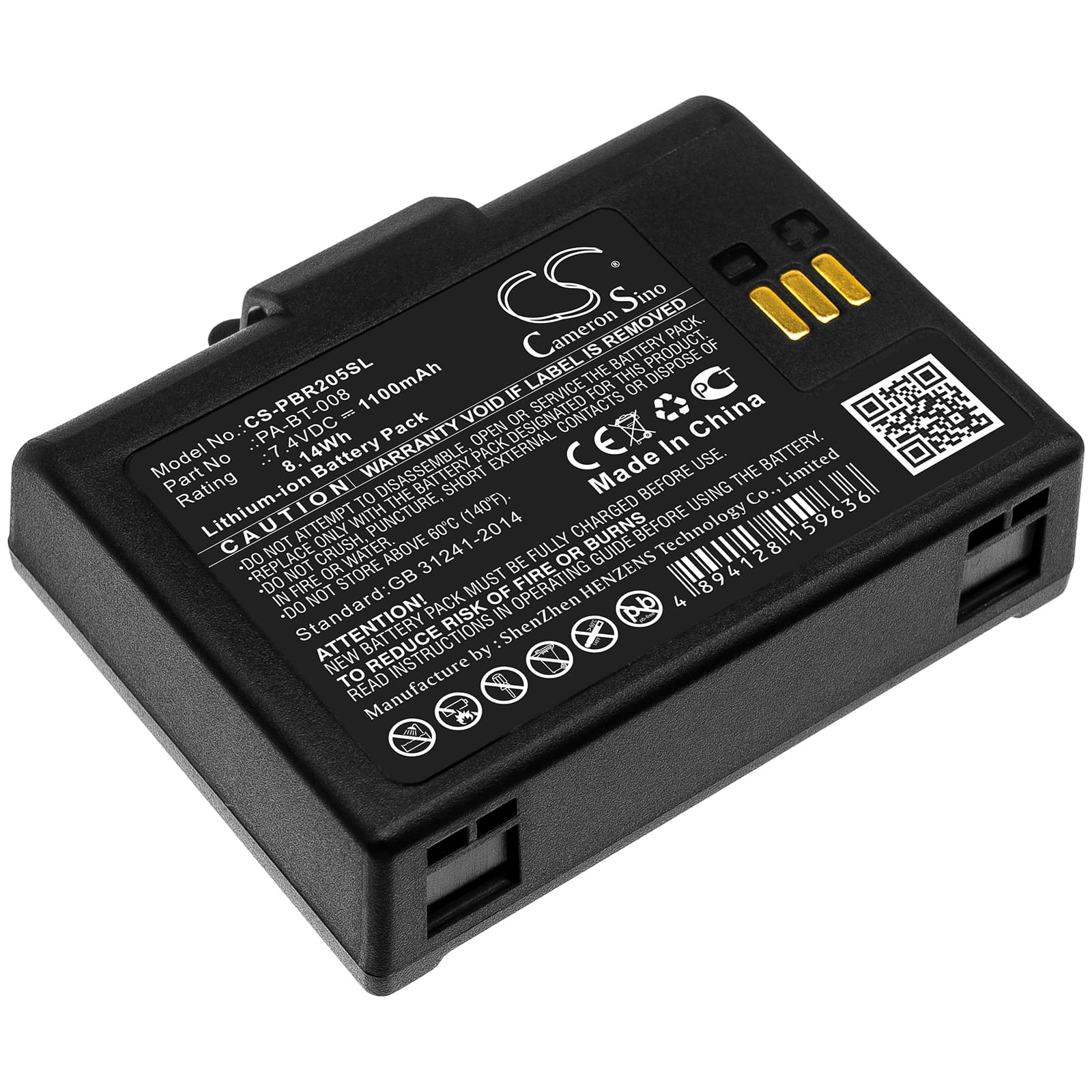

Brother RJ-2035B / RJ-2055WB — 7.4V Li-ion Replacement Battery (PA-BT-008)
This is a 7.4V 1100mAh Li-ion battery for the Brother RJ-2035B and RJ-2055WB mobile thermal printers. It slots in as a direct swap for OEM part PA-BT-008. Both models are portable label and receipt printers used in retail stockrooms, delivery runs, and field logistics.
- RJ-2035B and RJ-2055WB compatibility: Both units share the same 7.4V battery bay, connector pinout, and BMS handshake protocol. One cell covers both models — no adapter or firmware change needed.
- Bench tested on actual hardware: We ran this cell through full charge cycles and confirmed the BMS accepted the charge profile without fault codes. The thermal head and paper feed motor drew stable current across the load range without triggering low-voltage cutoff.
- First-use print sequence: After installing, charge the battery to full and print five test receipts before deploying the unit in the field. The paper feed motor calibrates its current draw against the BMS profile during those initial cycles — skipping this step can cause intermittent feed errors on the first job.
Why the RJ-2035B paper feed jams when the battery is low
The feed motor in the RJ-2035B requires consistent torque to pull paper through the thermal head at the right pressure. As cell voltage drops below roughly 6.8V, the motor loses torque and can no longer advance the paper cleanly. The result is a partial feed or a full jam — not a mechanical fault, just insufficient drive voltage. Charge the battery to full before the job and the jam clears without any manual intervention to the feed mechanism.
Faded or uneven print on a freshly installed battery
The thermal print head needs a stable voltage supply to maintain consistent element temperature across the print line. If the battery cell voltage is unstable during the first few cycles — common with a new cell that hasn't completed its initial charge — the head temperature fluctuates and produces faded or striped output. This is not a head fault. Run the unit through two full charge-discharge cycles and the cell voltage stabilises. After that, print density should be even at 7.4V nominal.
