About this replacement

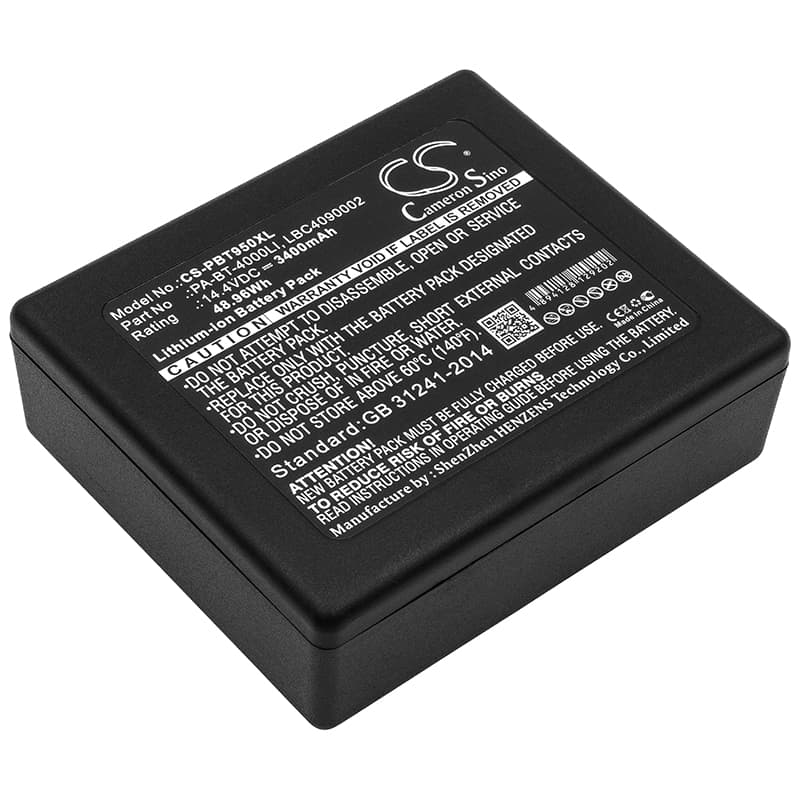

Brother TD-2120N / RJ-4030 / P-touch P950NW — 14.4V Li-ion Replacement Battery (PA-BT-4000LI)
This 14.4V, 3400mAh Li-ion battery replaces part number PA-BT-4000LI in the Brother TD-2120N portable thermal label printer and fits across the RJ-4030, RJ-4040, TD-2130NHC, P-touch P950NW, and PA-BB-001 battery base, among others. It delivers the stable voltage the thermal print head and paper feed motor both need. At 48.96Wh, it matches OEM cell energy capacity.
- TD-2120N and RJ-series shared platform: These models run the same 14.4V battery rail, the same BMS handshake protocol, and use an identical connector and latch arrangement. One cell SKU covers all of them because the charge profile and communication lines are identical across the family.
- Bench tested on actual hardware: We cycled this cell on a TD-2120N and confirmed the BMS negotiation completed within the first charge cycle. The printer accepted the battery without fault codes, and the thermal head maintained consistent temperature across a full print run at both draft and high-density label settings.
- First-deploy print sequence: After installing and fully charging, run five test label prints before field deployment. The paper feed motor draws a brief current spike on each feed cycle, and the BMS needs those initial draws to confirm the load profile and set its protection thresholds correctly for the new cell.
Why the TD-2120N thermal head prints faded bands on a low or degraded battery
The thermal print head in the TD-2120N heats individual dots to a precise temperature. That temperature depends on consistent voltage — when the battery sags under load, the head runs cooler than the firmware expects. The result is a faded stripe or inconsistent density across the label, not a paper or media problem. If faded print appears mid-roll and worsens toward the end of a shift, the battery is the first place to check, not the head calibration setting.
Printer powers on but Bluetooth or Wi-Fi drops mid-job
The wireless radio in the TD-2120N and RJ-series printers draws a brief current spike each time it transmits. At low battery charge, that spike pulls the rail voltage below the radio's operating threshold, and the connection drops. The printer stays on because the processor draws far less current than the radio. Charge the battery to at least 12.8V measured at rest before a shift — below that, radio dropout under load is likely.
