About this replacement

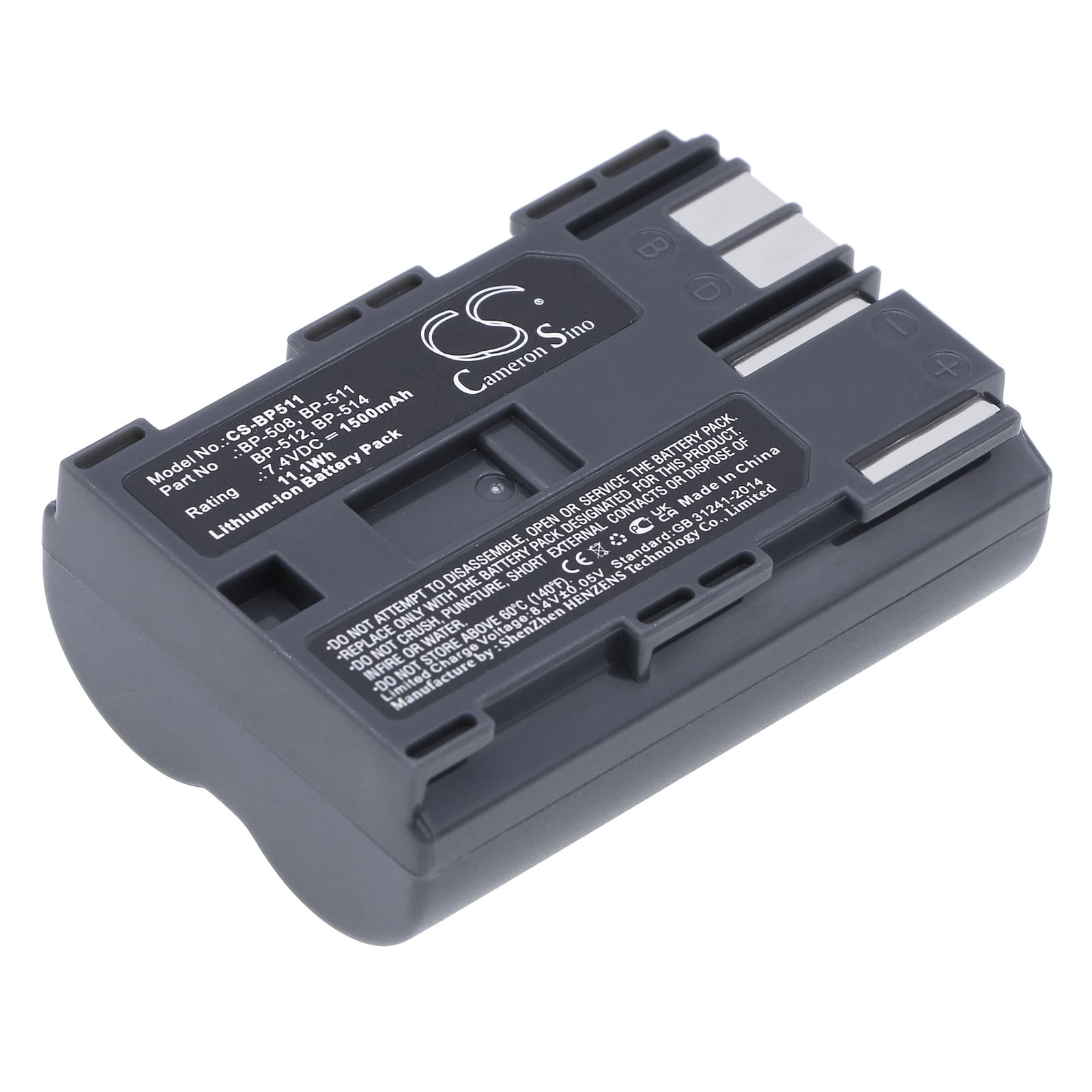

Canon DM-MV100X Series — 7.4V Li-ion Replacement Battery (BP-511A)
This is a 7.4V, 1500mAh Li-ion replacement battery for Canon DM-MV series camcorders. It fits the DM-MV100X, DM-MV100Xi, DM-MV30, DM-MV400, and over 80 additional Canon camcorder models sharing the BP-5xx platform. OEM part numbers covered include BP-508, BP-511, BP-511A, BP-512, and BP-514.
- BP-5xx platform compatibility: Canon's DM-MV and related camcorder lines share the same BP-5xx connector pinout, voltage rail, and BMS communication protocol. A cell built to this spec slots into any body in the family without hardware modification.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on a BP-511A-compatible body. The BMS accepted the cell on first install, voltage held steady at 7.4V nominal under record load, and the protection circuit triggered correctly at low-voltage cutoff.
- First-cycle initialisation on Canon bodies: Perform one full charge inside the OEM Canon charger or camera body before your first shoot. Canon's BMS maps the battery-remaining display against a charge curve it samples on that first cycle — skipping this step causes inaccurate percentage readouts through the cell's life.
Canon BMS rejecting a third-party cell on first install
Canon camcorders use a data pin on the BP-5xx connector to handshake with the battery before enabling power output. A new third-party cell occasionally triggers a rejection screen on first install — not because the cell is faulty, but because the BMS hasn't completed its initialisation read. Remove the battery, reinsert it, and place it in the OEM charger for a full charge cycle. After one complete charge from within a Canon-approved charger, most bodies accept the cell without further prompting.
Battery percentage jumping erratically during recording
Canon's fuel gauge maps percentage against a voltage-threshold table calibrated to the original BP-511A discharge curve. A replacement cell with a slightly different discharge profile causes the indicator to jump — showing 60%, then 80%, then 40% within minutes. This is a display mapping issue, not a fault in the cell. Run two full charge-discharge cycles in the camera body and the BMS recalibrates its table to the new cell's curve. After recalibration, the readout stabilises and tracks accurately from 8.4V full charge down to the 6.0V cutoff.
