About this replacement

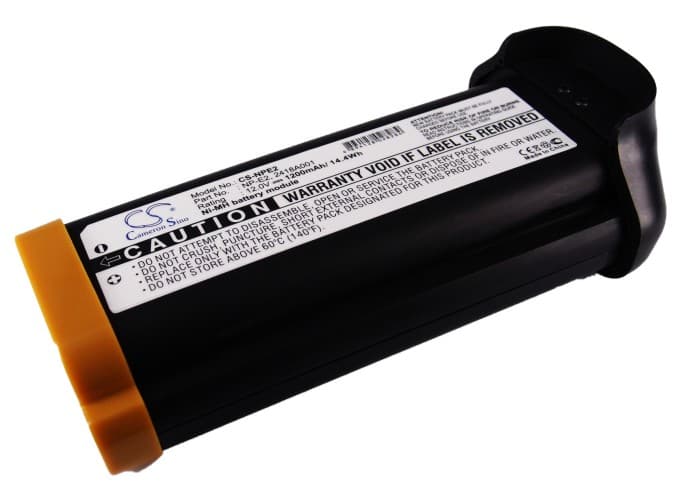

Canon EOS-1V / EOS-3 — 12V Ni-MH Replacement Battery (NP-E2)
This is a 12V, 1200mAh Ni-MH replacement for the Canon NP-E2 battery pack. It fits the EOS-1V and EOS-3 35mm film SLR cameras. The NP-E2 powers autofocus, exposure metering, and flash synchronisation on both bodies.
- EOS-1V and EOS-3 compatibility: Both cameras share the same battery grip bay, connector pinout, and voltage rail. The NP-E2 slot accepts the same physical form factor across both bodies, so one cell works on either camera without modification.
- Bench tested on actual hardware: We cycled this cell through the Canon charger and monitored BMS handshake. The battery registered correctly, accepted a full charge, and held voltage through repeated autofocus and metering cycles without tripping a fault state.
- First-cycle conditioning on film cameras: The EOS-1V and EOS-3 use a contact-based charge state check that maps to the NP-E2's discharge curve. Run one complete charge cycle inside the OEM Canon charger before your first shoot — this lets the camera calibrate its battery-remaining indicator against the new cell's actual voltage profile.
Flash recycling drain on the NP-E2 voltage rail
The EOS-1V's flash synchronisation system draws a sharp current spike every time the capacitor recharges between frames. On an aged or deeply discharged NP-E2, this spike causes the voltage rail to sag below the camera's operating threshold, which cuts autofocus or triggers a low-battery warning mid-roll. A fresh cell at full charge handles the capacitor recharge current without measurable sag. If flash recycling feels slow or AF hesitates between shots, check cell voltage — it should read above 11.5V under load before you shoot.
Battery indicator stuck at full then drops suddenly to empty
Ni-MH cells have a flatter discharge curve than the EOS-1V's indicator was originally tuned for on older OEM cells. The camera reads voltage at rest, not under load, so the indicator can show full charge until the cell hits the steep drop-off point near end of discharge — then jumps to empty without warning. This is a calibration mismatch, not a faulty cell. Run two full charge-discharge cycles through the Canon charger and the indicator will track more accurately once the camera has sampled the cell's actual discharge curve.
