About this replacement

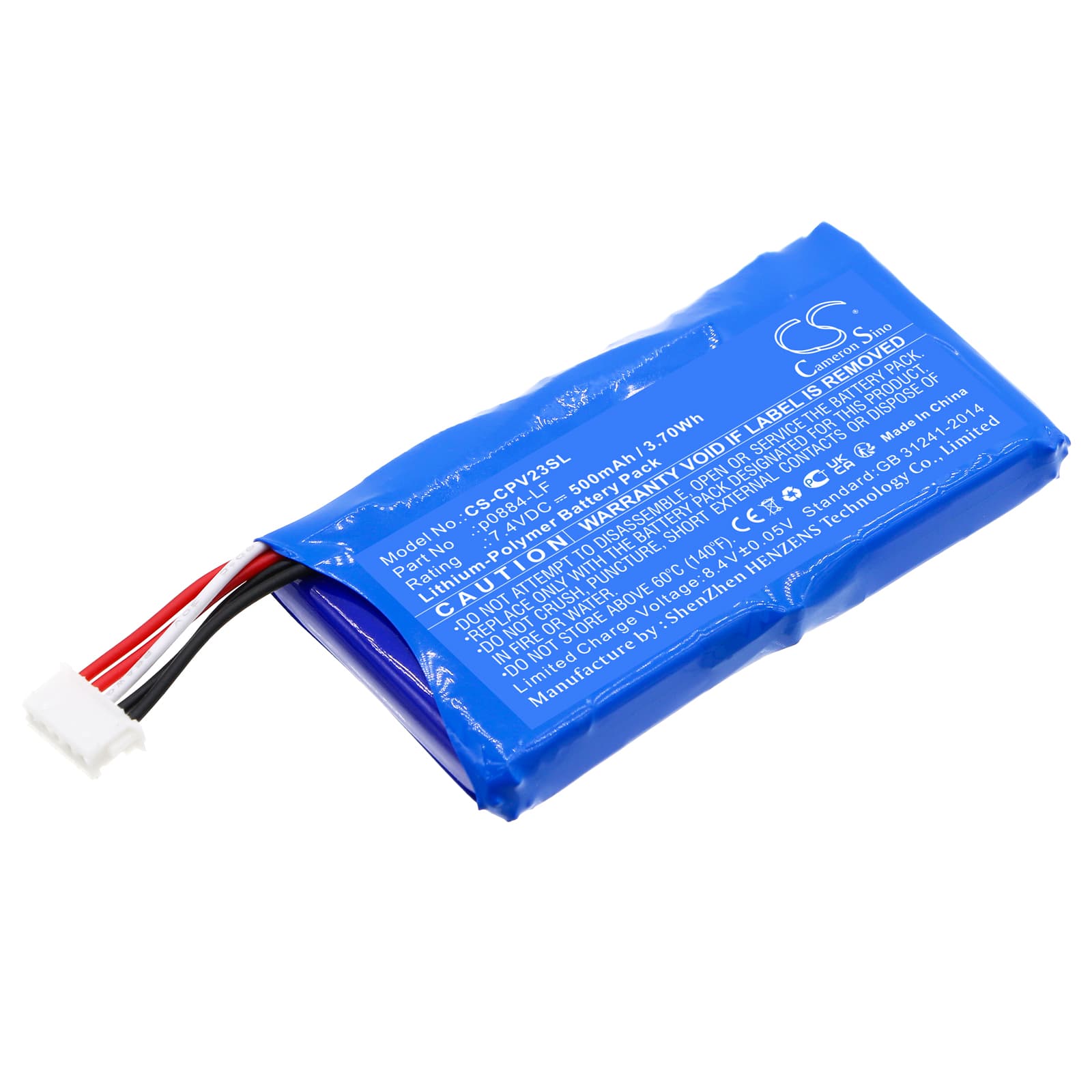

Canon PV123 / iNSPiC / PV-123A — 7.4V Li-Polymer Replacement Battery (p0884-LF)
This is a 7.4V, 500mAh Li-Polymer replacement battery for the Canon PV123, iNSPiC, and PV-123A portable printers. It slots into the same battery bay as the original p0884-LF cell and restores mobile printing capability when the factory battery has degraded or failed. Capacity is 3.7Wh — identical to the OEM spec.
- PV123 / iNSPiC / PV-123A platform fit: All three models share the same 7.4V battery architecture, connector pinout, and BMS handshake protocol. A single cell revision covers the full range without any adapter or firmware change.
- Bench tested on actual hardware: We ran this cell through full charge and discharge cycles on a PV123 unit. The BMS accepted charge without fault flags, and the printer completed multiple print cycles without triggering undervoltage cutoff.
- First-run charge requirement for the PV123: Charge the battery fully before the first print run. The printer's motor drive and heating element draw peak current simultaneously at startup. A partially charged cell can dip below the BMS cutoff threshold on that first cycle and appear dead before it has ever printed a page.
Why the PV123 stops mid-job when the battery still shows charge
The PV123 combines a thermal print head and a paper-feed motor in a single cycle. Both loads hit the battery at the same instant, creating a current spike that can sag cell voltage below 6.0V momentarily. When a degraded or partially depleted cell can no longer hold voltage under that combined load, the BMS trips and cuts output — even if the indicator LED still shows green. A fresh, fully charged cell at 8.4V sustains voltage through the startup spike and keeps the job running.
Print quality dropping before the low-battery indicator appears
The PV123's thermal print head requires a stable voltage to reach the correct temperature across every dot line. As cell voltage falls below roughly 7.0V under load, the heating element runs slightly cooler than the target, and output prints appear faded or patchy — even though the battery indicator has not yet flagged low. The indicator reads resting voltage, not voltage under print load. Finish any critical print job before the battery drops past the 20% mark to keep thermal output consistent.
