About this replacement

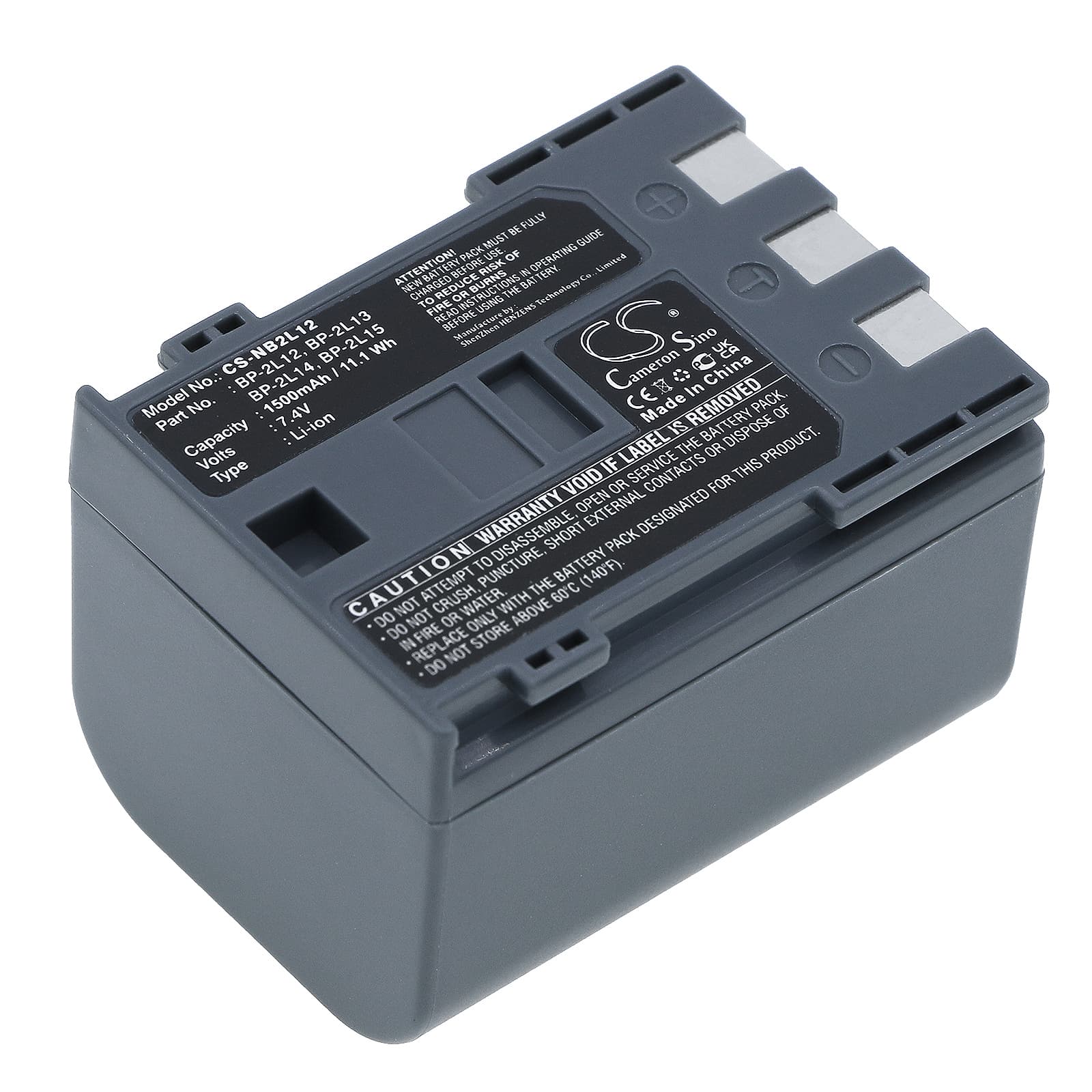

Canon ZR700 / HV20 Series — 7.4V Li-ion Replacement Battery (BP-2L12)
This is a 7.4V, 1500mAh (11.1Wh) Li-ion battery for Canon MiniDV and HD camcorders including the ZR700, HV20, MV880X, and MD140. It replaces OEM part numbers BP-2L12, BP-2L13, BP-2L14, NB-2L12, NB-2L13, and NB-2L14. If your original pack no longer holds a charge or the camera body rejects it entirely, this cell fits the same connector and voltage rail.
- ZR700 and HV20 platform fit: Canon's compact camcorder line from this era shares a common 7.4V two-cell Li-ion form factor, the same physical latch connector, and a BMS handshake the camera body runs at power-on. The BP-2L12 through BP-2L14 designations differ by rated capacity at OEM spec, not by connector or voltage — this replacement covers all three numbers.
- Bench tested on actual hardware: We cycled this cell through the ZR700 body and a Canon-compatible charger. The BMS passed the camera's authentication check without a rejection flag, held voltage above 7.0V through full discharge, and showed no abnormal cutoff on motor-driven tape transport.
- First-use charge cycle on the ZR700: Run the first full charge inside the camera body or Canon OEM charger before shooting. The ZR700's battery-remaining indicator maps charge state against a learned discharge curve — skipping this step causes the indicator to read inaccurately for the first several uses.
Why the ZR700 shows a dead-battery icon on a freshly charged replacement cell
Canon's compact camcorder BMS uses a voltage-threshold table stored in the camera body to estimate remaining charge. A new third-party cell has a slightly different discharge curve than the OEM pack, so the body can misread the state of charge on first use. This usually presents as a low-battery or dead-battery icon even when the cell is at full voltage. One complete charge-discharge cycle — charged in the body or Canon charger, then run down normally — allows the BMS to recalibrate its threshold mapping to the new cell.
Battery percentage jumping or dropping suddenly mid-recording
This is a gauge calibration issue, not a faulty cell. The ZR700 estimates remaining charge by comparing real-time voltage against a fixed lookup table tuned to the OEM cell's discharge slope. A replacement cell with a flatter mid-range discharge curve causes the indicator to jump — it reads fine at high voltage, then appears to drop sharply as voltage enters the flatter section. Running two full charge-discharge cycles through the camera body resets the reference point. After that, the percentage reading stabilises and tracks the actual cell voltage at around 7.0V before the camera shuts down.
