About this replacement

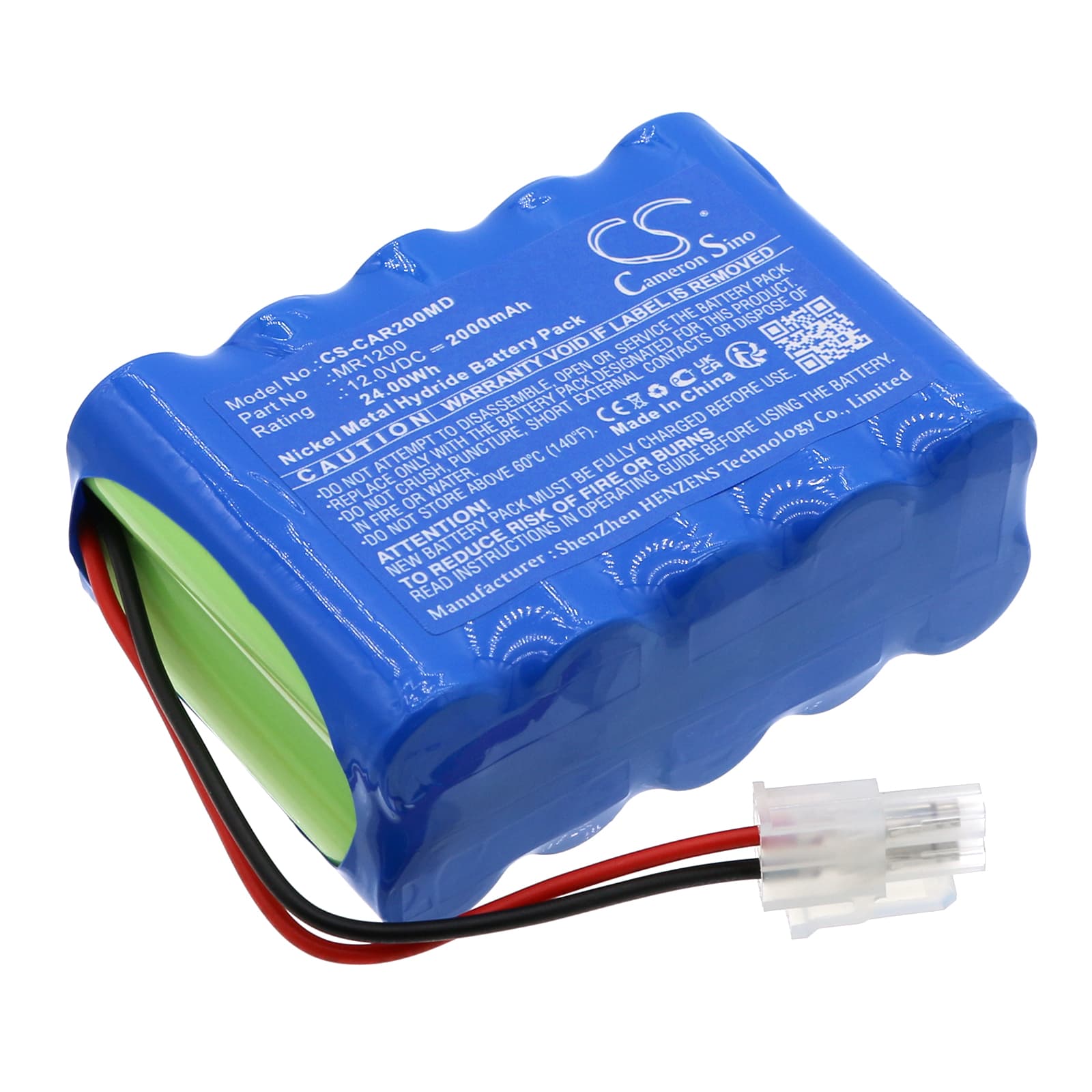

Cardioline ECG200L / ECG200S — 12V Ni-MH Replacement Battery (17001237)
This is a 12V 2000mAh Ni-MH replacement battery for the Cardioline ECG200L and ECG200S electrocardiographs. It fits the internal battery bay on both portable ECG units and uses the same cell configuration as the OEM pack. Also cross-references part numbers GPRHC222N056, 80608069, and GP220AAH10WMX2.
- ECG200L and ECG200S compatibility: Both units share the same 12V battery bay, connector pinout, and BMS handshake protocol. One replacement SKU covers either model — no hardware modification required.
- Bench tested on actual hardware: We cycled this pack through the ECG200L's charge IC and confirmed the BMS accepted the cell chemistry without triggering a fault. Charge termination behaviour matched OEM thresholds after the first full cycle.
- Post-installation self-test protocol: After fitting this battery, let the ECG200L or ECG200S complete its full power-on self-test without interruption. The device BMS runs a voltage verification at startup — cutting power during this sequence logs a battery fault that persists until the next clean reboot.
ECG200L not completing boot sequence after battery swap
The ECG200L runs a BMS learn cycle during its first few boot sequences with a new cell. A fresh Ni-MH pack straight from packaging sits at a resting voltage that can fall slightly below the device's boot-confidence threshold — particularly after storage. If the unit stalls mid-boot, connect it to mains power and allow it to charge uninterrupted for a full cycle before attempting battery-only operation. The BMS recalibrates its capacity estimate after one complete charge-discharge pass, and normal boot behaviour typically resumes from the second cycle onward.
Low battery alarm triggers immediately after a confirmed full charge
This happens because the ECG200L's battery monitor compares cell voltage against a reference table calibrated to a conditioned OEM pack. A new replacement cell holds a slightly different voltage curve until it has completed one full charge-discharge cycle, so the device reads it as below threshold even when the charge indicator shows full. Run one complete cycle — full charge, then use the device until it prompts for charge again — before trusting the battery indicator in clinical use. After that cycle, the voltage curve aligns and the alarm clears at the correct state of charge.
