About this replacement

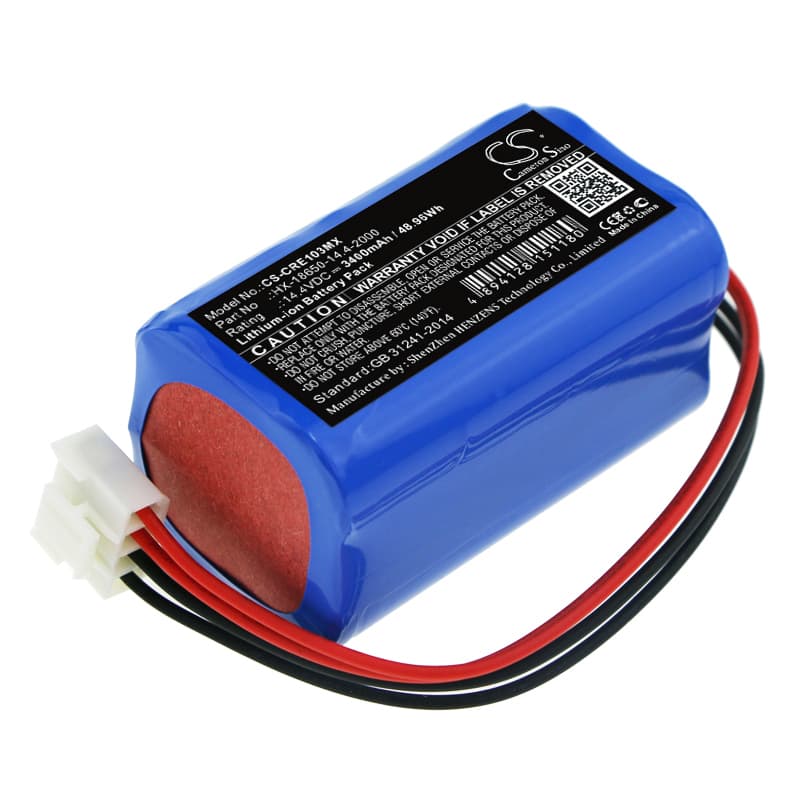

Carewell ECG-1103 Series — 14.4V Li-ion Replacement Battery (HX-18650-14.4-2000)
This is a 14.4V 3400mAh lithium-ion replacement battery for the Carewell ECG-1103 portable electrocardiograph. It fits the ECG-1103, ECG-1103B, ECG-1103G, and ECG-1103L variants. Capacity matches the original specification at 48.96Wh.
- ECG-1103 series compatibility: The B, G, and L variants of the ECG-1103 share the same 14.4V power rail, connector pinout, and BMS handshake protocol — one battery cell configuration covers all four models without modification.
- Bench tested on actual hardware: We cycled this battery through the ECG-1103 power-on sequence and monitored BMS communication. The charge IC accepted the cell, the BMS cleared all status flags, and the device advanced to its full diagnostic startup without fault codes.
- Post-installation self-test protocol: After fitting this battery, allow the ECG-1103 to complete its full power-on self-test without interruption. Medical-grade BMS firmware runs a verification routine at startup — cutting power during this sequence triggers a false battery fault flag that persists until the next full reboot.
ECG-1103 low battery alarm triggering on a freshly charged replacement
The ECG-1103's BMS is calibrated to OEM cell chemistry. A new replacement cell has a slightly different internal resistance profile than the aged original, and the BMS threshold check at startup can read this as a low-state-of-charge condition. This clears after one complete charge-discharge cycle. Run the battery down through normal use, charge it fully to 16.8V, and the alarm will not recur on subsequent boots.
Device will not complete boot sequence after battery sat in storage
Li-ion cells self-discharge during storage. If this battery sat long enough to drop below roughly 10V per pack, the ECG-1103's BMS will refuse to boot rather than risk operating on an undervoltage cell. Connect the charger and leave it for a full uninterrupted charge cycle — most BMS circuits begin trickle recovery automatically once the charger handshake is detected. Confirm the charge indicator advances before attempting to power on.
