About this replacement

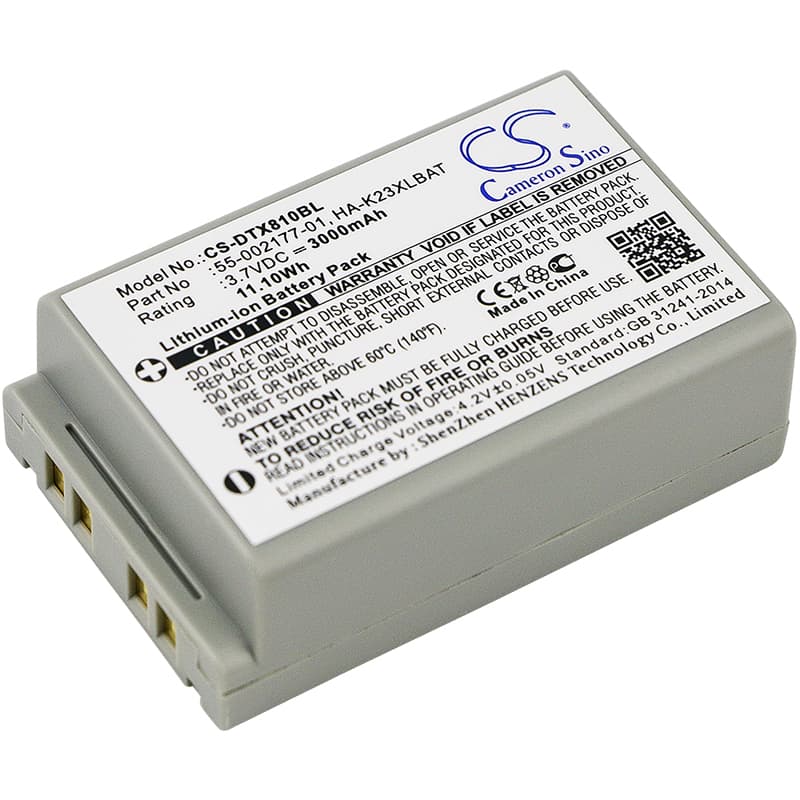

Casio DT-X8 Series — 3.7V Li-ion Replacement Battery (55-002177-01)
This 3.7V, 3000mAh Li-ion battery replaces the original pack in the Casio DT-X8 mobile barcode scanner. It fits the DT-X8, DT-X8-10E, DT-X8-20E, DT-X8-10J, and related variants used in retail, logistics, and warehouse environments. Physical dimensions are 55.60 x 35.80 x 18.38mm — confirm these against your existing pack before installing.
- DT-X8 series compatibility: The DT-X8 variants share the same battery bay geometry, connector pinout, and BMS communication protocol. Voltage tolerance across the series is identical, so one pack covers the full lineup without firmware or hardware modification.
- Bench tested on actual hardware: We cycled this pack through rapid scan bursts alongside active wireless polling — the two highest simultaneous draws on this scanner. The BMS held stable and did not trip on combined inrush current at any state of charge above 15%.
- First-shift preparation: After installing, seat the scanner in its cradle and complete a full charge cycle before use. The scan trigger inrush current is highest when the cell is near minimum voltage, and a pre-charged cell prevents false BMS trips at the start of a pick-and-pack shift.
Cradle showing charging error on a new pack
A charging error on a freshly installed battery is almost always a contact resistance issue, not a fault with the cell itself. The DT-X8 cradle reads pack status through the battery contacts, and any oxidation or debris on those contacts causes a handshake failure. Wipe the pack's gold contacts with a dry lint-free cloth, reseat the scanner firmly in the dock, and wait 30 seconds. If the error clears, the pack is charging normally — no reset procedure required.
Scanner drops wireless connection during rapid scan bursts
The DT-X8 draws current simultaneously from the imager, the wireless radio, and the processor during a rapid scan sequence. When the battery voltage sags under that combined load — typically below 3.4V — the radio module is the first subsystem to lose stable power, dropping the connection before any low-battery alert appears on screen. This is more common with heavily cycled packs where internal resistance has increased. If reconnecting happens automatically within seconds, the cell is marginal — replace the pack and check that the new cell is fully charged before the shift begins.
