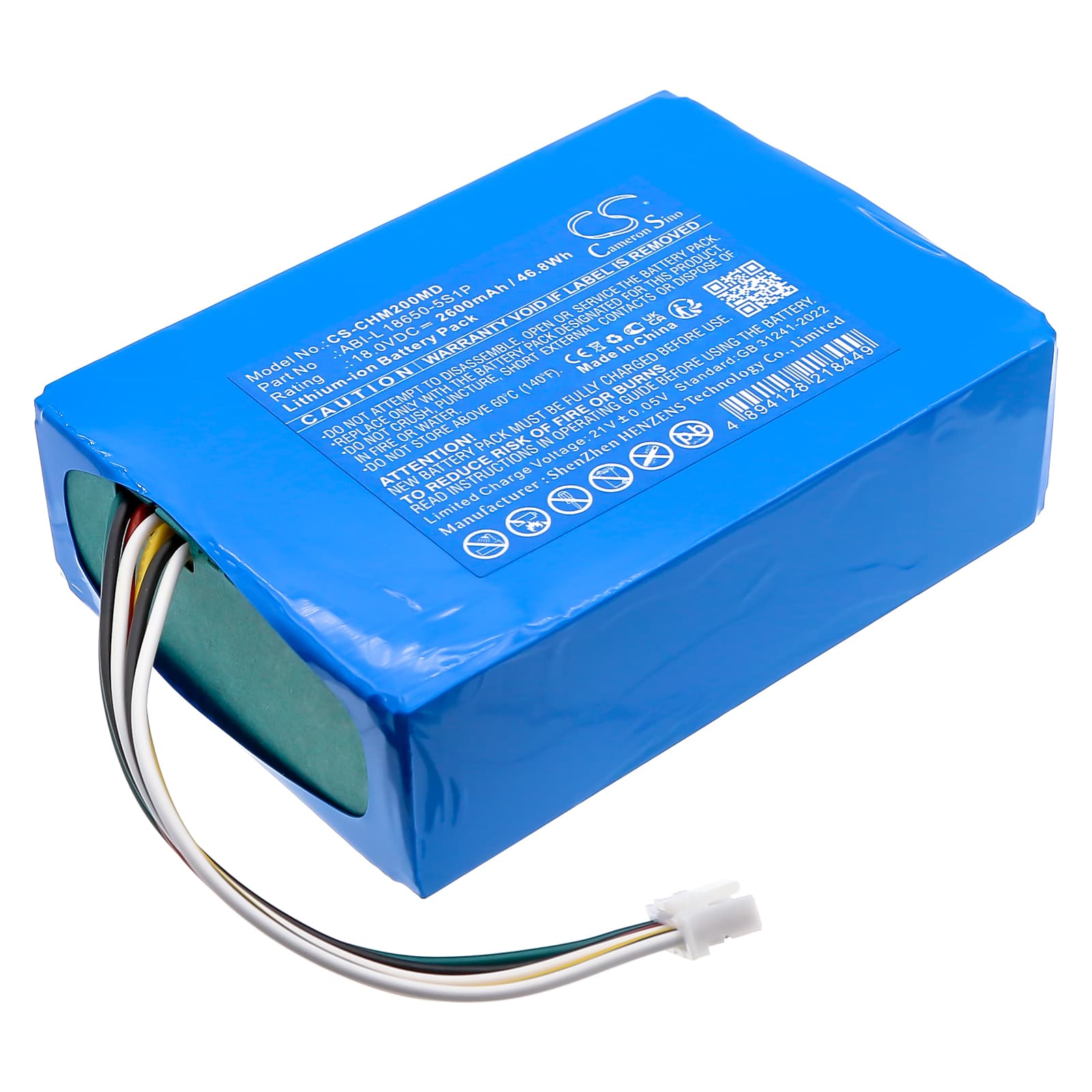

Chattanooga Intelect Legend 2 Ultrasound — 18V Li-ion Replacement Battery (ABI-L 18650-5S1P)
This 18V 2600mAh (46.8Wh) Li-ion battery replaces the OEM pack in the Chattanooga Intelect Legend 2 Ultrasound and compatible Intelect Mobile 2 series devices. It restores cordless operation in clinical ultrasound and combination therapy units used across physical therapy and rehabilitation settings. Fits models using OEM part numbers ABI-L 18650-5S1P, LBL-14-1086, and LBL-14-1086-DV.
- Intelect Mobile 2 series compatibility: The Legend 2 Ultrasound, Mobile 2 Combo, Mobile 2 Stim, and Mobile 2 Ultrasound all share the same 18V battery architecture, connector pinout, and BMS communication protocol — that is why one pack fits the full platform.
- Bench tested on actual hardware: We cycled this pack through charge and discharge on the Intelect platform and confirmed the BMS handshake completes correctly, the charge IC accepts the cell chemistry without fault codes, and the protection circuit triggers at the expected low-voltage cutoff threshold.
- Post-installation self-test protocol: After fitting this battery, allow the device to complete its full power-on self-test without interruption. Chattanooga's BMS runs a verification sweep at startup — cutting power mid-sequence registers a false battery fault that persists until the next clean reboot.
Low battery alarm firing immediately after a confirmed full charge
The Intelect platform's BMS compares cell voltage against thresholds calibrated to aged OEM chemistry. A fresh 18650 cell at full charge can present a slightly different voltage curve than a conditioned pack, triggering the alarm prematurely. This is not a fault with the replacement battery — it is a learn-cycle gap. Run one complete charge-discharge-recharge cycle before clinical use. After that cycle, the BMS calibrates to the new cell profile and the alarm clears.
Device will not power on after the battery has been in storage
Li-ion cells self-discharge over time, and if the pack voltage drops below approximately 14.4V (2.88V per cell across the 5S configuration), the BMS enters deep-discharge lockout to protect the cells. The Intelect device will show no response — no display, no startup tone. Place the battery on the OEM charger and leave it connected for a minimum of two hours before attempting to power on; most chargers include a pre-charge trickle stage that recovers cells from this state. If the charger LED does not activate within 15 minutes, the cells may be below the charger's recovery threshold.
