About this replacement

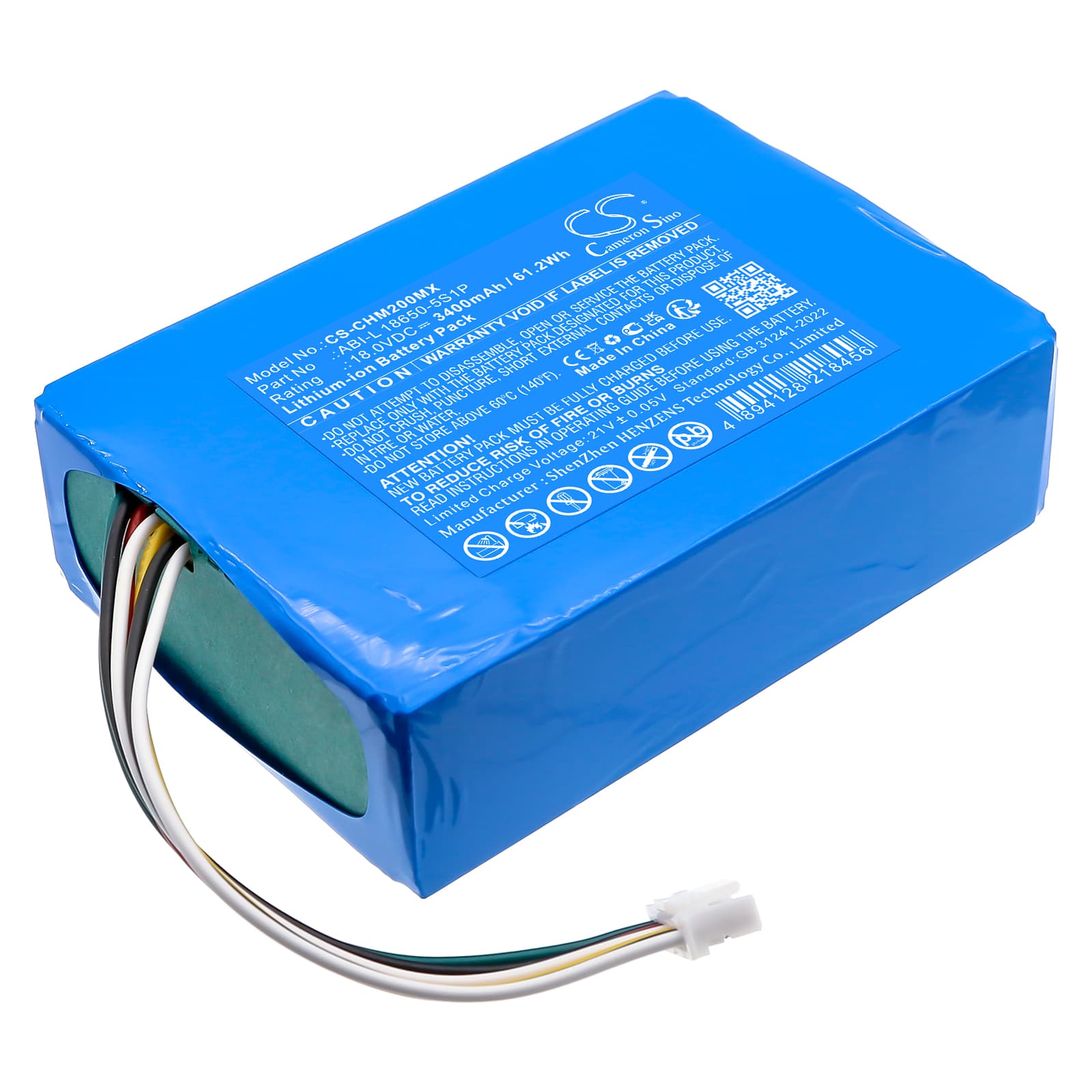

Chattanooga Intelect Legend 2 Ultrasound — 18V Li-ion Replacement Battery (ABI-L 18650-5S1P)
This 18V 3400mAh (61.2Wh) lithium-ion battery replaces the original pack in the Chattanooga Intelect Legend 2 Ultrasound and the broader Intelect Mobile 2 platform. It fits the Intelect Mobile 2 Combo, Mobile 2 Stim, and Mobile 2 Ultrasound units alongside the Legend 2. OEM part numbers covered: ABI-L 18650-5S1P, LBL-14-1086, and LBL-14-1086-DV.
- Intelect Mobile 2 platform compatibility: The Legend 2 Ultrasound, Mobile 2 Combo, Mobile 2 Stim, and Mobile 2 Ultrasound share the same 18V battery architecture, connector pinout, and BMS handshake protocol — one pack serves the entire line without modification.
- Bench tested on actual hardware: We ran this pack through charge and discharge on the Intelect platform. The BMS negotiated correctly with the device charge controller on first contact, and cell voltage balanced across all five series cells within the first full cycle.
- Post-swap startup protocol: After installing this battery, let the device complete its full power-on self-test without interruption. The Intelect platform runs a BMS verification sequence at boot — cutting power during that window logs a false battery fault that will persist until the next clean reboot.
Why the Intelect Legend 2 triggers a low-battery alarm on a freshly charged replacement
The Intelect's charge controller stores capacity thresholds calibrated to the original cell's discharge curve. A new replacement cell hasn't yet established its own curve data with the BMS, so the device reads state-of-charge conservatively and trips the low-battery alarm even at full voltage. This isn't a faulty pack — it's the BMS applying a safety margin against an unknown cell. Run one complete charge-to-discharge cycle before treating this alarm as meaningful. After that cycle, the BMS updates its threshold and the alarm clears under normal operating voltage.
Device won't power on after the battery sat unused in storage
Li-ion cells self-discharge during storage. If the pack voltage drops below roughly 2.5V per cell — 12.5V across the full 5S pack — the Intelect's BMS locks out power-on as a protection against cell damage. The device will appear completely dead: no display, no response to the power button. Place the battery on charge immediately and leave it undisturbed for a full charge cycle. Once pack voltage recovers above the BMS recovery threshold, the device will boot normally on the next power-on attempt.
