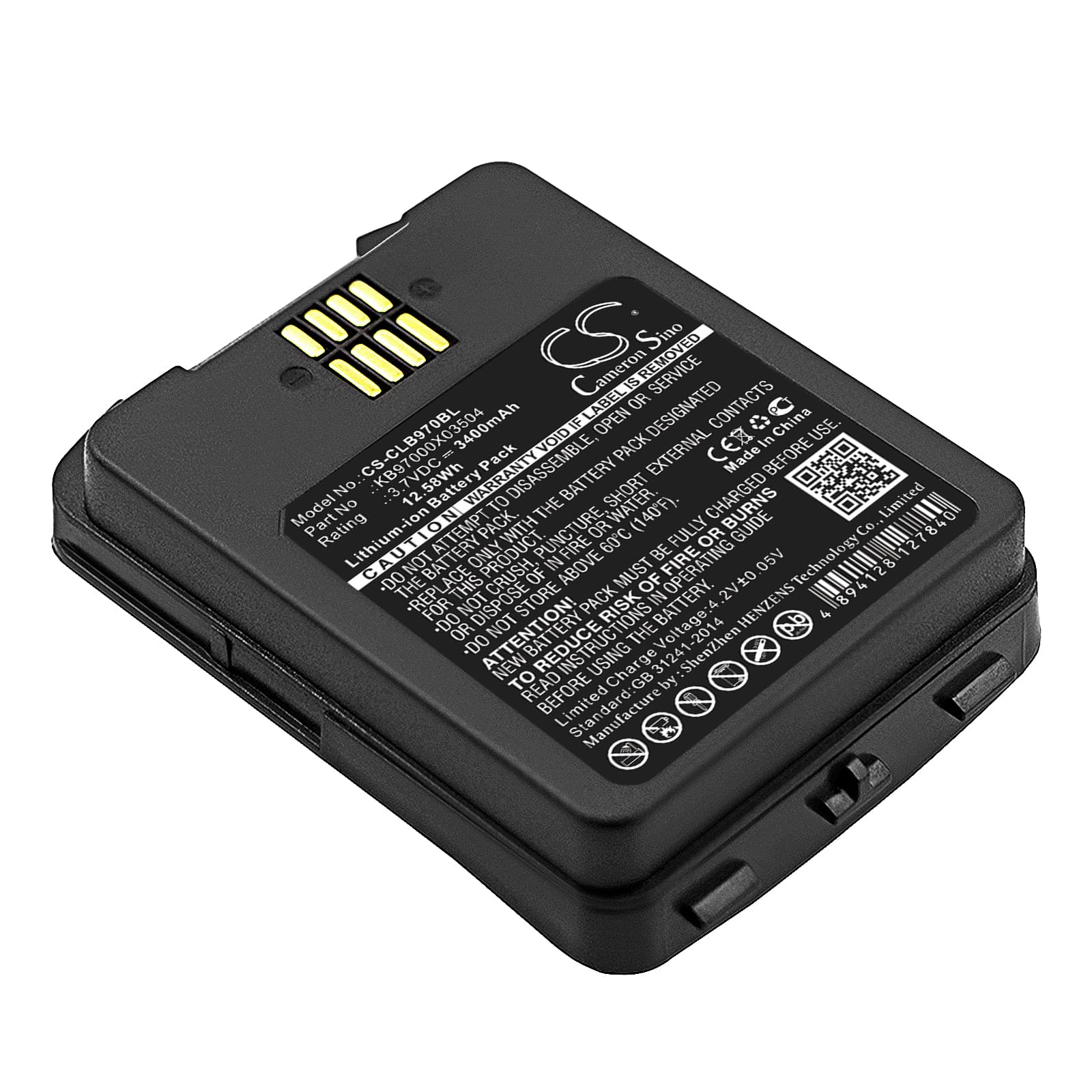

CipherLab 9700 — 3.7V Li-ion Replacement Battery (KB97000X03504)
This is a 3.7V 3400mAh Li-ion replacement battery for the CipherLab 9700 mobile data terminal. It fits handheld units used in warehouse picking, inventory scanning, and asset tracking workflows. OEM part numbers KB97000X03504, BA-0083A6, and BA-0085A4 all cross to this pack.
- CipherLab 9700 fit: The 9700 series uses a fixed connector and BMS handshake tied to a 3.7V single-cell architecture. This pack matches that voltage rail, physical footprint, and pin configuration — the host device reads cell state correctly on boot without prompting a battery fault.
- Bench tested on actual hardware: We cycled this pack through repeated scan-trigger and wireless polling loads. The BMS held its protection thresholds across charge and discharge without tripping on the combined inrush from the imager and radio firing simultaneously.
- First-shift preparation: After installing, seat the scanner in its charging cradle and run a full charge cycle before pulling it for a pick shift. The scan trigger draws its highest inrush current when the cell is near minimum — starting the first shift on a full cell prevents a false BMS cutoff during the initial burst.
Cradle showing a charging error on a new pack
The 9700 cradle reads contact resistance on the battery terminals before it starts a charge cycle. A new pack with oxidised or slightly misaligned contacts can trigger a fault flag even though the cell itself is fine. Wipe the gold contacts on both the battery and the cradle dock with a dry cloth, then firmly reseat the scanner until it clicks. If the cradle still faults, check that dock spring tension is pushing the terminals flush — a worn cradle spring is often the root cause, not the battery.
Scanner losing wireless connection during rapid scan bursts
The 9700 fires the imager and the wireless radio nearly simultaneously during high-frequency scanning — the combined inrush can cause a momentary voltage sag on a cell that is below 3.5V. When voltage dips past the BMS low-voltage threshold, the radio drops first because the imager circuit has priority. The fix is to start shifts with a fully charged pack and avoid running the cell below the device's low-battery warning before swapping. A rested, fully charged cell holds the voltage rail steady through back-to-back scan bursts without sagging into the BMS cutoff window.
