About this replacement

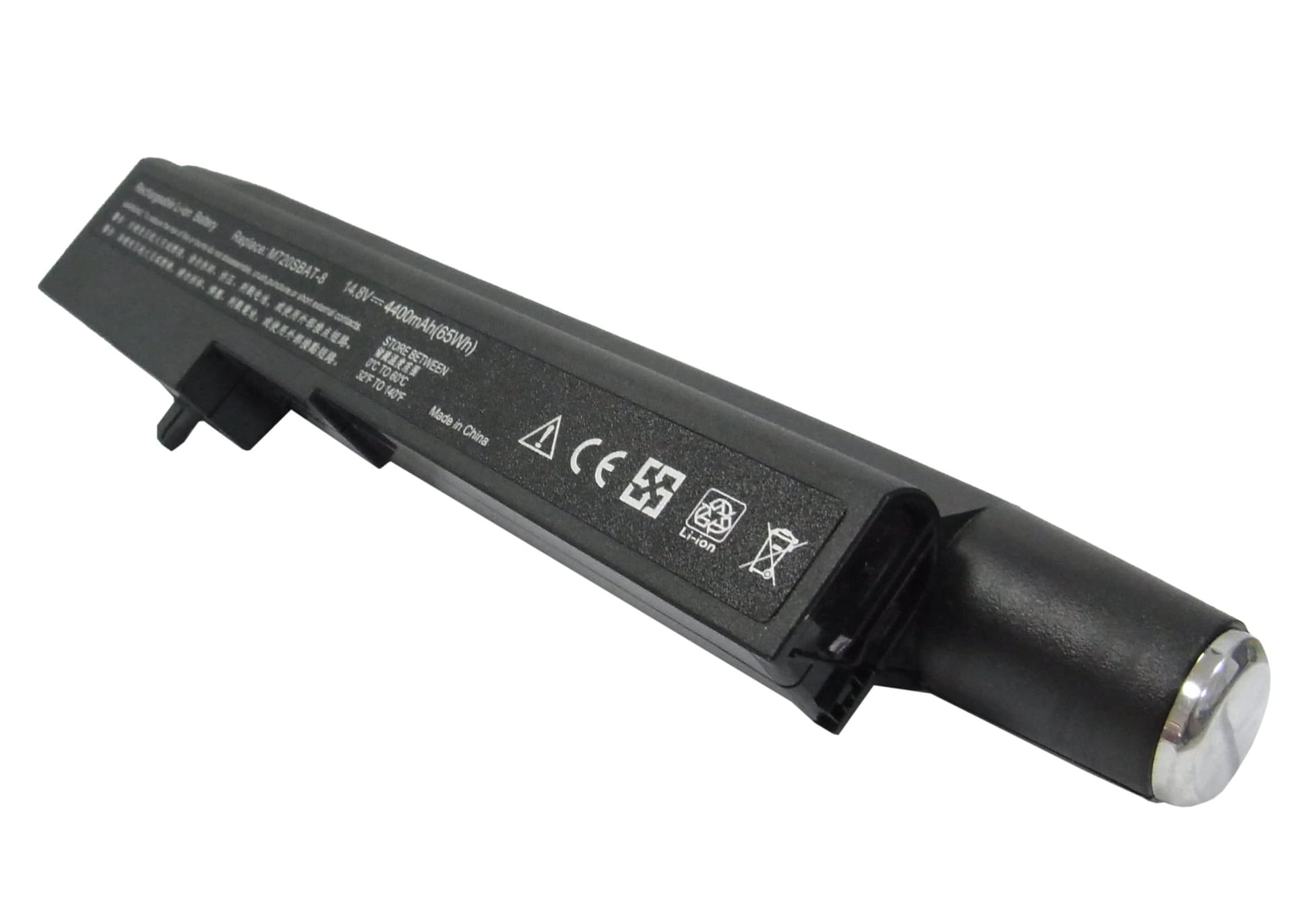

Clevo M72 / M72X Series — 14.8V Li-ion Replacement Battery (6-87-M720S-4M4)
This is a 14.8V, 4400mAh (65.12Wh) Li-ion replacement battery for Clevo M72 series notebooks. It fits the M72, M72X, M72XR, and M72XS, along with the extended M720 lineup. OEM part numbers covered include 6-87-M720S-4M4, M720BAT-4, M720SBAT-4, and several related variants.
- M72 and M720 series compatibility: These models share a common 14.8V four-cell architecture with the same connector pinout and BMS handshake protocol. Swapping across M72, M72X, M72XR, and M720 variants works because the BIOS reads the same EEPROM data structure regardless of sub-model suffix.
- Bench tested on actual hardware: We ran charge and discharge cycles on a Clevo M72X. The BMS accepted charge from 0V recovery, balanced all four cells within 20mV by the end of the first full cycle, and reported correct Wh figures to the OS after two calibration passes.
- Post-install calibration on Clevo M72 notebooks: After fitting this battery, run the laptop down until it hibernates on its own, then charge it uninterrupted to 100% without using the machine. This forces the BIOS battery learn cycle to complete and clears the inaccurate health warning the firmware throws after every cell swap.
Clevo M72 shutting down at 20–30% shown on the gauge
When the M72 cuts out while the gauge still shows charge remaining, the cell is hitting a voltage cliff under combined CPU and display load. The fuel gauge IC calculated remaining capacity against the old cell's discharge curve, not the new one. Under full load, current draw pulls the pack below the 12.0V BMS cutoff before the gauge reaches zero. Run two full discharge-to-hibernate cycles and the fuel gauge IC will recalibrate its curve to match the new cell's actual capacity.
BIOS reporting wrong Wh rating after battery swap
The Wh figure the BIOS displays comes from EEPROM data written to the cell pack, not from a live measurement. If the replacement cell's EEPROM was written with a different rated value than the original, the system info page will show a number that doesn't match the label on the battery. This is a firmware reporting mismatch, not a capacity fault. Verify actual capacity by running a full discharge cycle and comparing the energy drawn — a healthy 65.12Wh pack should deliver within 5% of that figure under moderate load.
