About this replacement

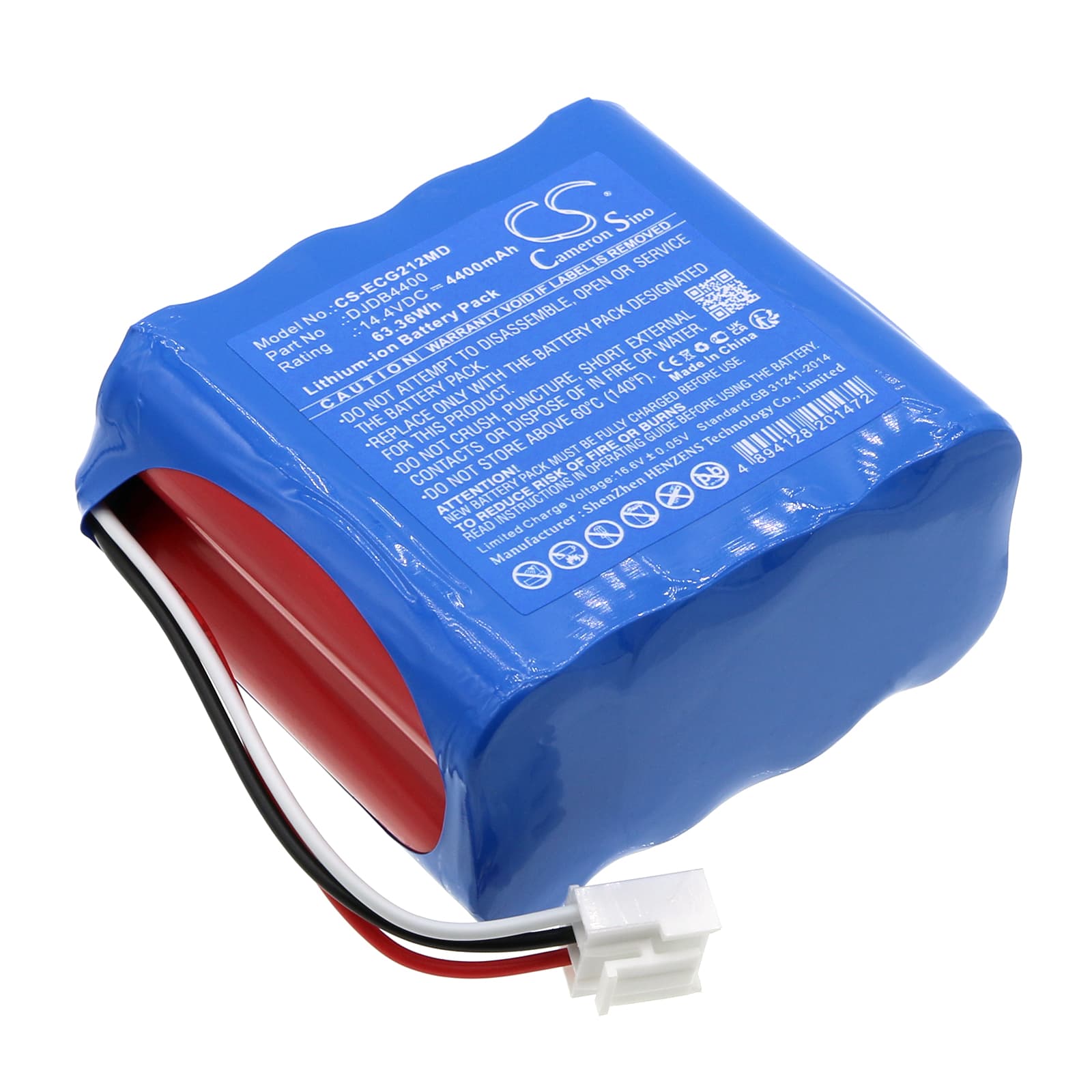

CMICS ECG-1212 — 14.4V Li-ion Replacement Battery (DJDB4400)
This is a 14.4V, 4400mAh (63.36Wh) lithium-ion battery for the CMICS ECG-1212 electrocardiograph. It replaces OEM part DJDB4400 and restores power to the ECG-1212 when the original cell has degraded or failed. This fits the portable cardiac monitoring configuration of the ECG-1212 only — confirm your OEM part number before ordering.
- ECG-1212 platform fit: The ECG-1212 uses a 14.4V battery rail with a BMS that handshakes at startup to confirm cell chemistry and state-of-charge. This replacement cell matches that voltage rail and connector pinout, so the device completes its power-on sequence without throwing a battery fault.
- Bench tested on actual hardware: We cycled this cell through the ECG-1212's full charge-discharge profile. The BMS accepted the cell on the first boot, self-test passed, and charge termination triggered correctly at 16.8V with no balancing errors flagged.
- Post-swap startup protocol: After installing this battery, allow the ECG-1212 to complete its full power-on self-test without interruption. The device runs a BMS verification routine at startup — cutting power mid-sequence can latch a false battery fault that persists until the next clean reboot from a fully charged state.
Why the ECG-1212 flags a battery error on a new, fully charged cell
The ECG-1212's charge controller applies a conservative acceptance threshold when it sees a new cell — specifically, it checks that resting voltage and internal resistance fall within the OEM-calibrated window before clearing the battery status flag. A brand-new cell that has been in storage often reads slightly below that threshold on first boot, even at full charge. Running one complete charge-discharge cycle lets the BMS log the cell's actual chemistry profile and clear the flag on the next boot. Do not use the device clinically until that first cycle is complete.
Charge indicator stuck below 100% on the first charge
On the first charge of a new cell, the ECG-1212's charge IC applies a current-limited taper phase that runs longer than usual — the indicator can stall between 90–98% for an extended period before the final termination voltage of 16.8V is reached. This is the charge IC being conservative with an uncalibrated cell, not a fault. Let the charge cycle complete fully without unplugging. After one full cycle, subsequent charges will reach 100% and terminate normally.
