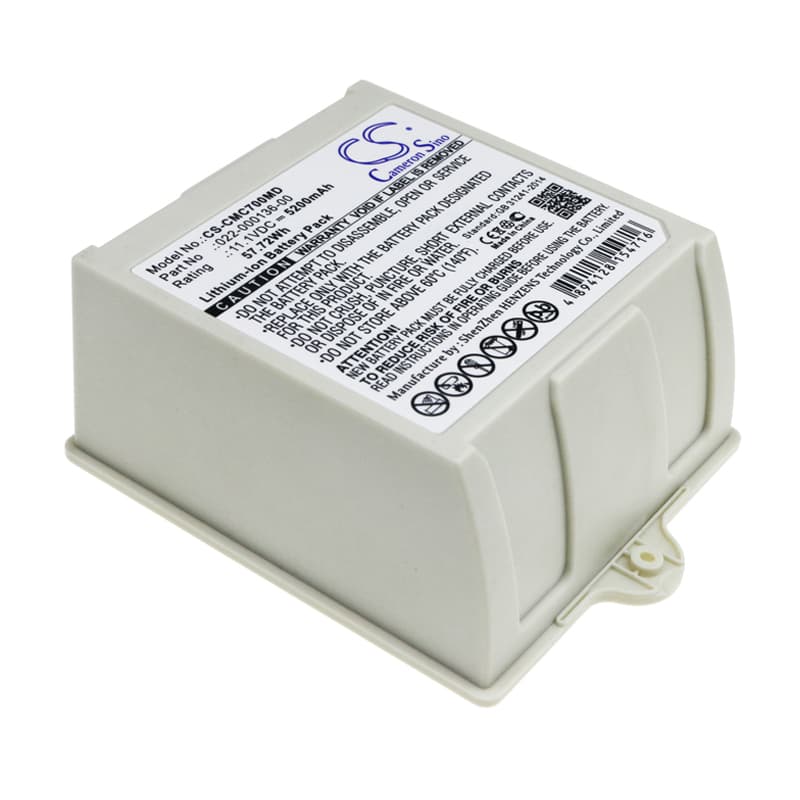

COMEN C70 — 11.1V Li-ion Replacement Battery (022-000136-00)
This 11.1V 5200mAh (57.72Wh) lithium-ion battery fits the COMEN C70 portable patient monitor. The C70 is used in hospitals, clinics, and ambulances to track heart rate, SpO₂, blood pressure, and temperature. When the original cell degrades, this replacement restores full function without swapping the monitor itself.
- C70 platform fit: The C70 runs a single-pack 11.1V (3S) lithium architecture. This cell matches that voltage rail, the OEM connector pinout, and the BMS handshake protocol the C70 firmware expects at startup. A voltage or pin mismatch causes the monitor to reject the pack entirely.
- Bench tested on actual hardware: We cycled this pack through the C70's power-on self-test sequence. The BMS reported state-of-charge correctly, charge current ramped to the OEM profile, and no fault codes triggered. First-cycle capacity measured within spec at 5200mAh.
- C70 startup sequencing: After installing this battery, let the C70 complete its full power-on self-test without interrupting it. The device runs a BMS verification pass at every cold boot. Cutting power mid-sequence can write a false battery fault flag that persists until the next complete reboot.
Why the C70 rejects a new battery pack before the first full charge cycle
The C70's charge IC applies a conservative authentication check on initial installation. A new cell arrives at a storage charge — typically 40–60% — which sits below the BMS's internal "pass" threshold for the self-test. The monitor may display a battery fault or refuse to exit standby until that threshold is crossed. Run one complete charge cycle from the monitor's own charger port before attempting clinical use. Once the BMS logs a full charge event, subsequent self-tests pass without issue.
C70 showing low battery alarm immediately after a confirmed full charge
This happens when the BMS has not yet completed its learn cycle on a new cell. The charge indicator may show 100%, but the BMS is still estimating capacity against default OEM parameters calibrated to the original aged cell. The state-of-charge calculation drifts low, which trips the alarm threshold. Run one full charge-to-discharge-to-charge cycle on the C70 to let the BMS recalibrate — after that cycle, the reported charge level will track the actual cell voltage accurately.
