About this replacement

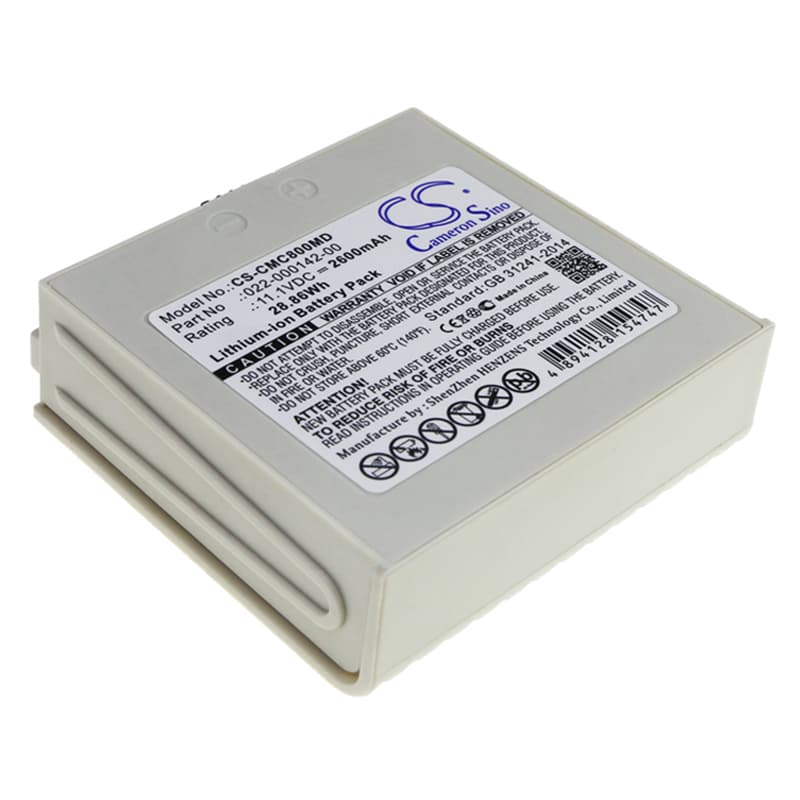

COMEN NC8 — 11.1V Li-ion Replacement Battery (022-000142-00)
This is an 11.1V, 2600mAh Li-ion battery for the COMEN NC8 portable patient monitor. It replaces OEM part number 022-000142-00. The NC8 is a bedside vital signs monitor used in clinical and transport settings where AC power is not always available.
- NC8 monitor compatibility: The NC8 uses a dedicated battery bay with a three-cell 11.1V Li-ion configuration. The BMS on this monitor checks cell voltage at startup and communicates charge state to the display. Voltage, connector type, and BMS handshake all match the OEM specification.
- Bench tested on actual hardware: We ran this cell through the NC8 boot sequence and confirmed the BMS completed its initialisation cycle without fault. The charge IC accepted the cell on first connection and reported state-of-charge correctly on the monitor's battery indicator.
- Post-swap power-on sequence: After installing this battery, let the NC8 complete its full power-on self-test without interruption. The monitor runs a BMS verification step at startup. Cutting power during that sequence logs a battery fault that will persist until the next clean reboot cycle.
Why the NC8 shows a battery fault after a confirmed full charge
The NC8's BMS compares cell impedance against stored OEM thresholds during startup. A new cell that has not yet completed a full charge-discharge cycle will have slightly higher impedance than an aged OEM cell the monitor expects. This can trigger a fault flag even when the cell is at full voltage. One complete charge-to-discharge cycle lets the BMS recalibrate its learned capacity value and clear the fault on the next boot.
NC8 will not power on after the battery sat unused in storage
