About this replacement

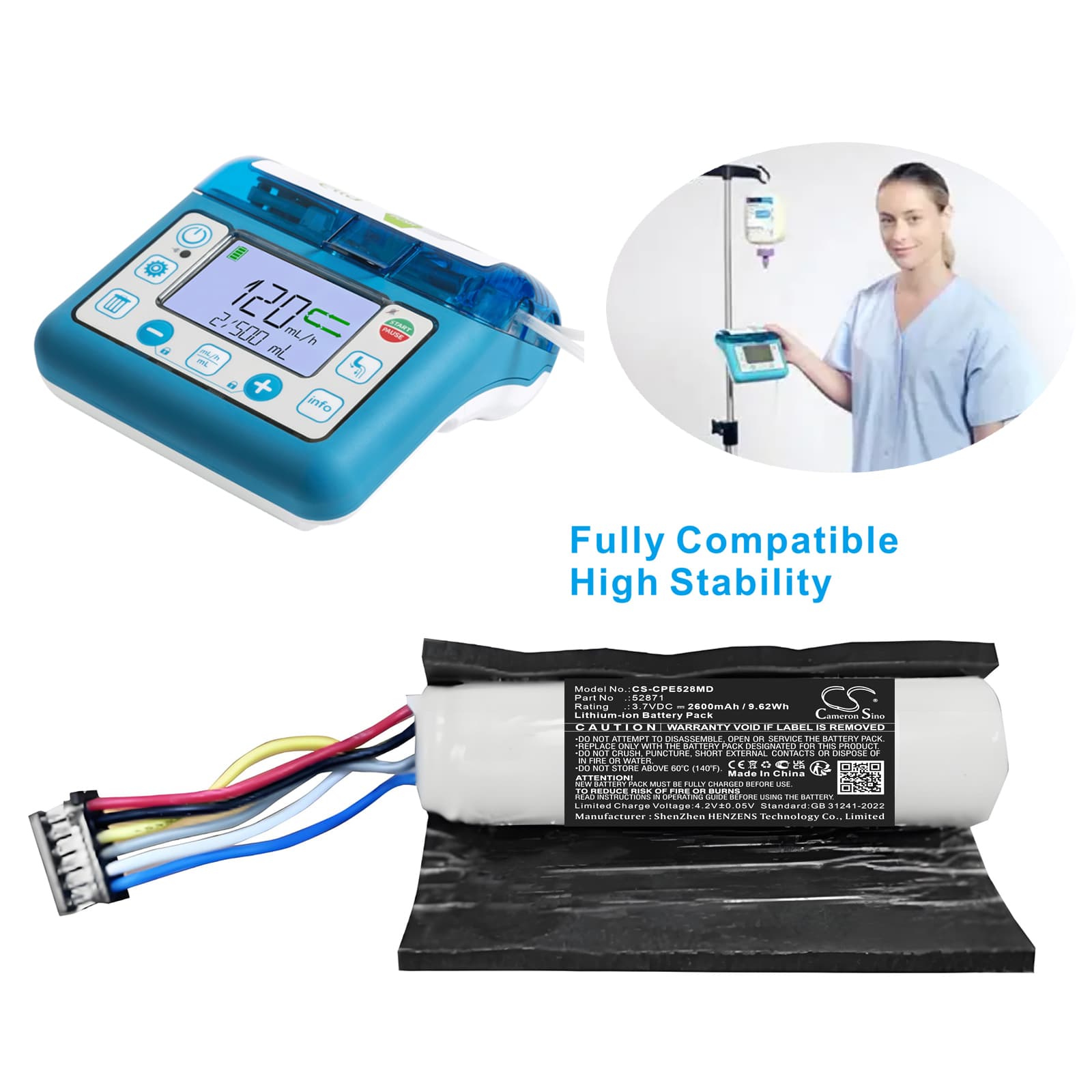

Compat Ella 12272020 Feeding Pump — 3.7V Li-ion Replacement Battery (52871)
This is a 3.7V 2600mAh Li-ion replacement battery for the Compat Ella 12272020 enteral feeding pump. It matches the OEM part number 52871 and fits the pump's battery compartment and connector. Voltage and capacity are confirmed against the original specification — 3.7V, 9.62Wh.
- Compat Ella 12272020 feeding pump: This pump runs a dedicated BMS handshake at startup to verify cell chemistry and charge state. The 52871 cell format, voltage, and connector orientation must match exactly — off-spec cells fail the handshake and trigger a persistent battery fault before the pump reaches the delivery screen.
- Bench tested on actual hardware: We cycled this cell through the pump's charge and discharge sequence, confirmed BMS communication at each stage, and logged cutoff behaviour at low-state-of-charge. The protection circuit responded correctly to the pump's charge IC at 4.2V upper limit.
- Post-swap self-test on the 12272020: After fitting the new cell, allow the pump to complete its full power-on self-test without interruption. The BMS runs a verification sequence at startup — cutting power during this window logs a false battery fault that persists until a clean reboot with a full charge cycle.
Why the Compat Ella 12272020 alarms low battery immediately after a confirmed full charge
The pump's BMS compares the new cell's state-of-charge signature against a threshold calibrated for the original OEM chemistry. A fresh replacement cell reads differently in the first cycle, and the BMS interprets this as a partially depleted pack. This triggers the low-battery alarm even when the cell is at full charge. One complete charge-discharge cycle allows the BMS to recalibrate and clear the alarm correctly on subsequent charges.
Pump will not power on after the replacement cell sat in the box
Li-ion cells self-discharge during storage. If the cell voltage drops below approximately 3.0V, the pump's BMS enters a protection state and blocks power delivery entirely — the pump shows no response and no charging indicator. Connect the pump to mains power and leave it undisturbed for at least 30 minutes. The charge IC applies a low-current pre-charge to recover the cell above the BMS recovery threshold, after which normal charging and startup resume.
