About this replacement

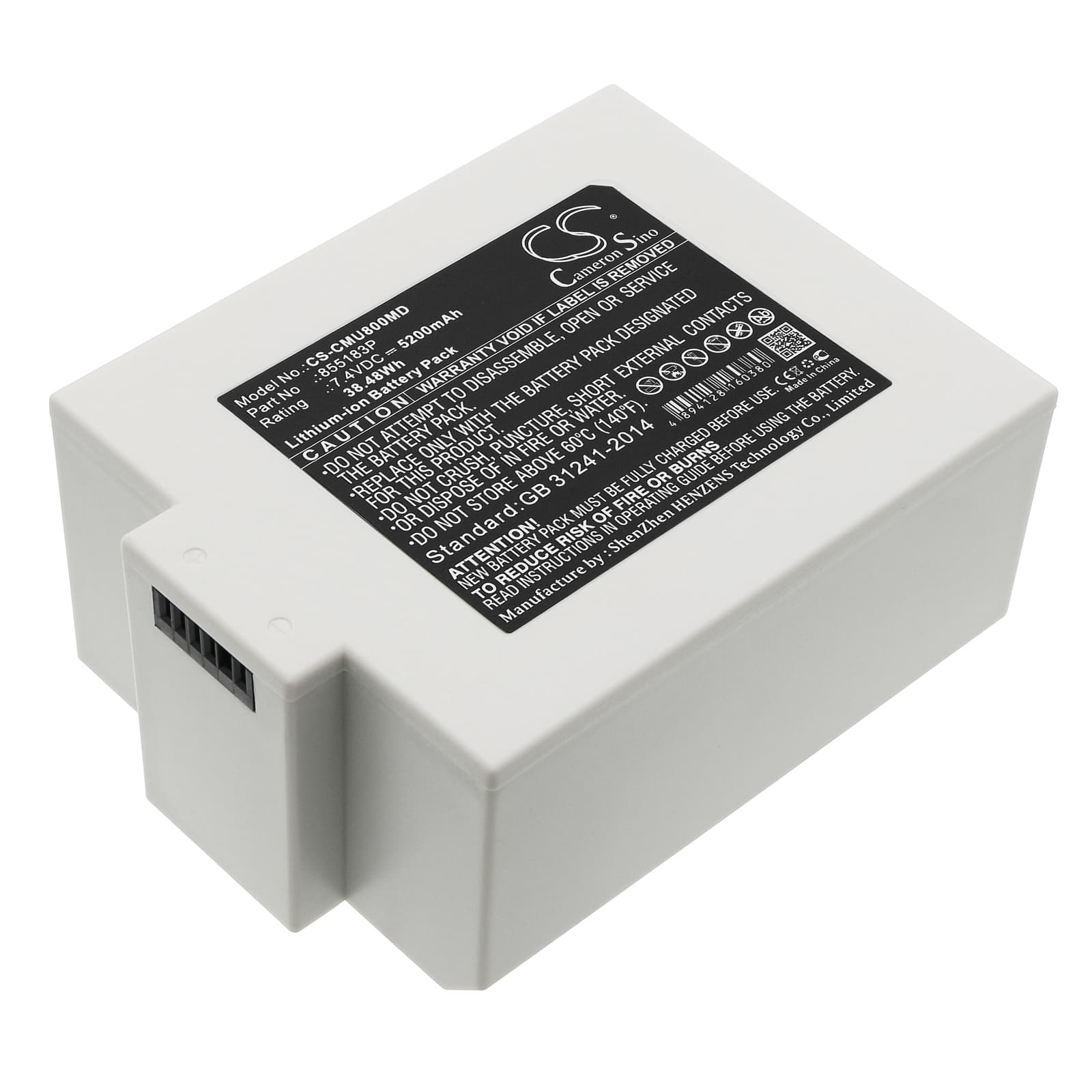

CONTEC CMS8000 ICU Patient Monitor — 7.4V Li-ion Replacement Battery (855183P)
This 7.4V 5200mAh (38.48Wh) Li-ion battery replaces OEM part 855183P in the CONTEC CMS8000 ICU Patient Monitor and Meditech M8000S. It supports uninterrupted multi-parameter monitoring — heart rate, SpO2, NIBP, and temperature — during facility transport or mains power interruptions. Capacity is matched to the original specification; no firmware changes or adapter cables are needed.
- CMS8000 and M8000S compatibility: Both monitors share the same 7.4V battery bay geometry, connector pinout, and BMS handshake protocol, which is why a single cell covers both platforms. The BMS on each device reads state-of-charge through the same communication line, so the charge indicator behaves identically across both units.
- Bench tested on actual hardware: We cycled this cell through the CMS8000 power-on self-test sequence and confirmed the BMS handshake completed without fault flags. The protection circuit held within spec across simulated load steps matching the monitor's display and alarm subsystems.
- Startup sequence after installation: After fitting this battery, allow the CMS8000 to complete its full power-on self-test without interruption. The device BMS runs a chemistry verification pass at boot; cutting power mid-sequence logs a false battery fault that persists until the next clean reboot cycle.
CMS8000 battery alarm triggered immediately after a confirmed full charge
The CMS8000 BMS compares cell impedance and resting voltage against thresholds calibrated to the OEM cell's chemistry profile. A new replacement cell has not yet completed a full charge-discharge learning cycle, so its impedance reading sits outside the expected window even at 100% charge. The monitor interprets this as a degraded cell and raises the low-battery alarm despite the gauge showing full. Run one complete charge-discharge cycle before placing the unit in clinical rotation — after that cycle the BMS recalibrates its baseline and the alarm clears.
Monitor will not power on after the replacement battery was stored before installation
Li-ion cells self-discharge during storage at roughly 2–3% per month, and the CMS8000 BMS has a minimum recovery threshold — typically around 2.5V per cell, or 5.0V pack voltage. If the cell sat in a warehouse long enough to drop below that threshold, the BMS enters a locked state and the monitor will not boot. Connect the battery to the OEM charger or a compatible Li-ion charger capable of a trickle pre-charge mode and leave it for at least two hours before attempting to power on the device. Once pack voltage climbs above 5.0V, the BMS re-initialises and the normal boot sequence resumes.
