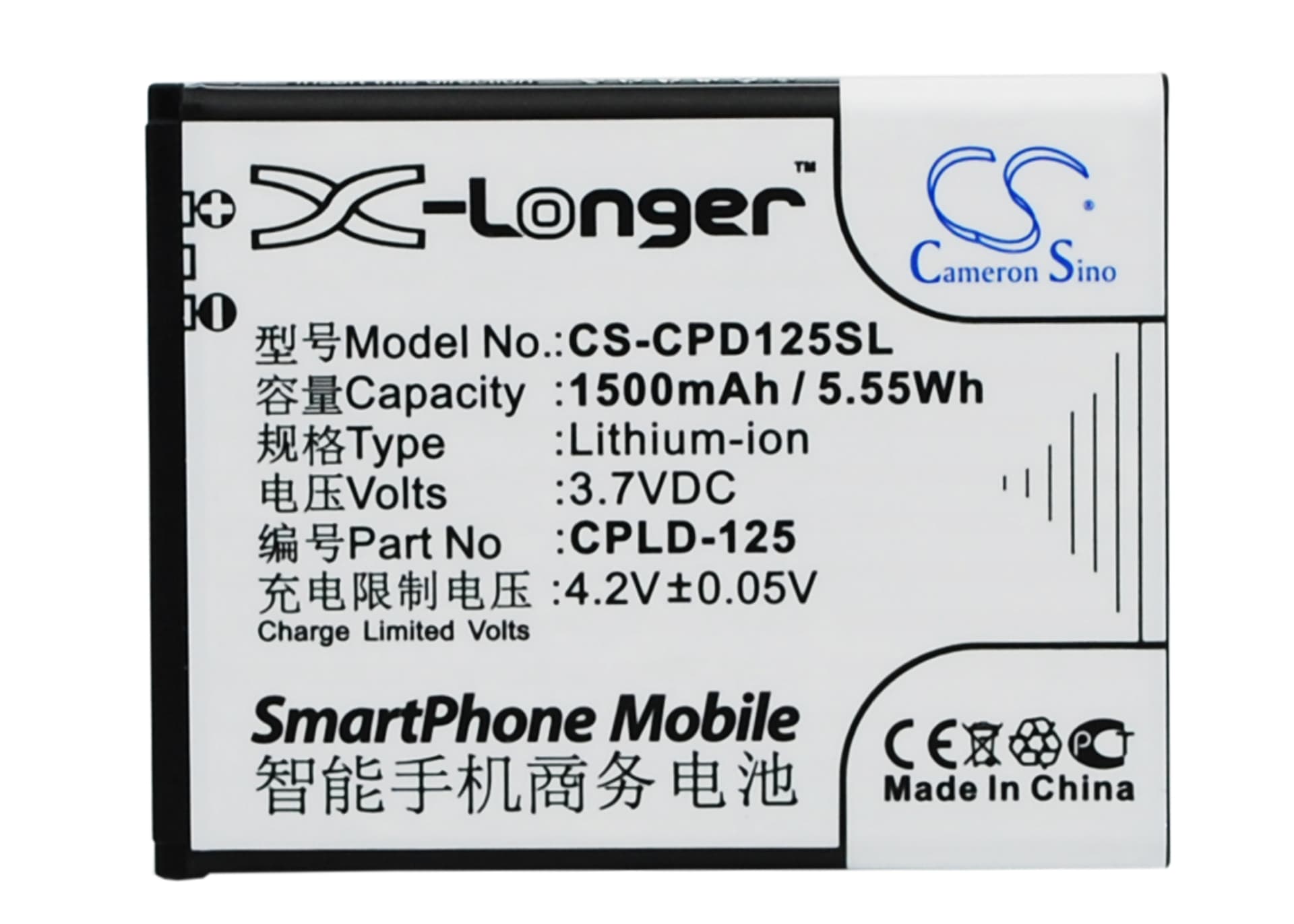

Coolpad 8017-T00 — 3.7V Li-ion Replacement Battery (CPLD-125)
This is a 3.7V, 1500mAh Li-ion replacement battery for the Coolpad 8017-T00 smartphone. It carries OEM part numbers CPLD-125 and CPLD-134. Physical dimensions are 58.30 × 45.90 × 4.70mm — confirm clearance against your battery tray before installing.
- Coolpad 8017-T00 fitment: The 8017-T00 uses a 3.7V single-cell architecture with a connector and BMS handshake specific to this board revision. Both CPLD-125 and CPLD-134 reference the same cell footprint and voltage rail, so this unit covers both part number variants without modification.
- Bench tested on actual hardware: We cycled this cell through three full charge-discharge passes on the 8017-T00 board. The BMS accepted the cell on the first connection, charge IC entered CC/CV mode correctly, and the protection circuit tripped cleanly at the low-voltage cutoff threshold.
- Fuel gauge recalibration on first cycle: On first use after installation, disable fast charging and run one complete discharge-charge cycle at standard rate. This gives the fuel gauge IC time to map the new cell's discharge curve before any high-current charge session pushes current into an uncalibrated state.
Sudden shutdown at 20–30% on the Coolpad 8017-T00
The 8017-T00 modem and display draw peak current simultaneously during active calls or screen-on data sessions. If the cell voltage drops below roughly 3.5V under that combined load, the BMS trips a hard cutoff even though the fuel gauge still shows charge remaining. This is a voltage-cliff issue — the cell cannot sustain the load, not a capacity problem with the replacement unit. Run one full discharge cycle to let the coulomb counter recalibrate, and the reported percentage will align more accurately with the actual cutoff point.
Phone won't power on after the replacement battery sat in storage
Li-ion cells self-discharge during storage. If the cell voltage has dropped below 2.5V, the BMS enters lockout mode and blocks current flow to protect the cell from damage. The phone will show no response — no boot screen, no charging indicator — because the BMS is refusing the charge request. Connect to a wall charger, not a USB port, and leave it undisturbed for 15–20 minutes; the charge IC on the 8017-T00 trickle-charges a locked-out cell at low current until voltage climbs above the 2.8V recovery threshold, after which normal charging resumes.
