About this replacement

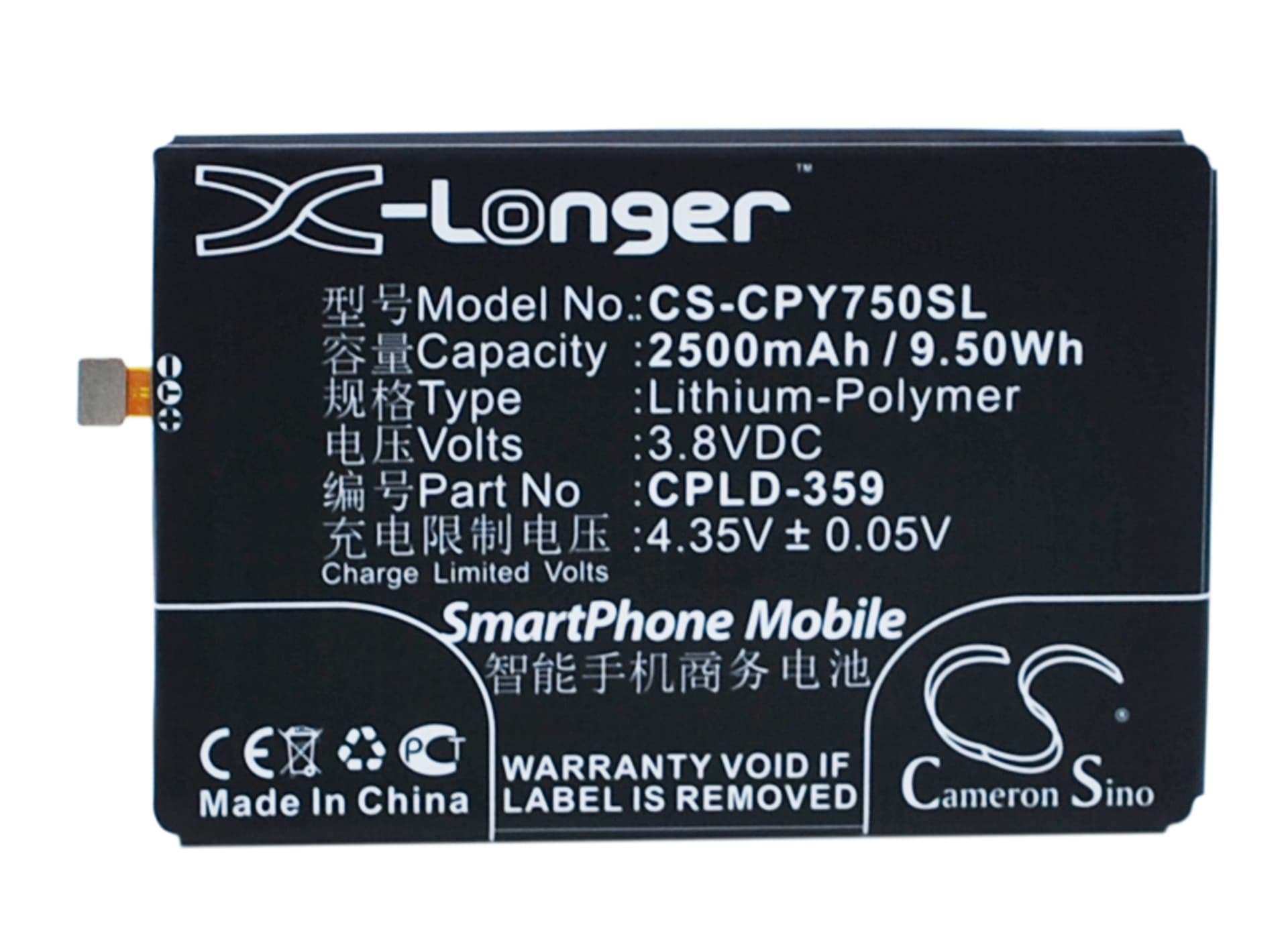

Coolpad Y75 Series — 3.8V Li-Polymer Replacement Battery (CPLD-359)
This is a 3.8V, 2500mAh lithium-polymer cell that replaces the original CPLD-359 battery in the Coolpad Y75, Y76, Y80D, Y80C, and related models. It slots into the same footprint at 80.00 × 54.41 × 3.92 mm with the same connector orientation. Capacity figures come from product data — 9.5Wh total energy.
- Y75 / Y76 / Y80D / Y80C compatibility: These models share the same battery bay dimensions, 3.8V nominal voltage rail, and connector pinout. The BMS handshake protocol is identical across this sub-family, so the cell installs without firmware conflicts or connector adapters.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on a Y75 unit. The BMS accepted the charge handshake on first connection, held stable voltage across modem-active and screen-on loads, and tripped protection correctly at low-voltage cutoff — no false overcurrent events recorded.
- Fuel gauge recalibration on first use: On first installation, disable fast charging and run one complete discharge down to automatic shutdown, then charge uninterrupted to 100%. This gives the fuel gauge IC one full reference cycle against the new cell's discharge curve before high-current charging is applied to an uncalibrated cell.
Sudden shutdown at 20–30% on the Coolpad Y75 after a cell swap
The Y75 fuel gauge IC stores a discharge curve from the previous cell. When a new cell is installed, the IC applies the old curve to the new cell's voltage profile. At around 20–30% reported charge, the new cell's actual open-circuit voltage drops below the threshold the IC expects at that state-of-charge, and the phone cuts power to protect the SoC. This is a calibration mismatch, not a faulty cell. Run one full discharge to auto-shutdown and one uninterrupted charge to 100% — after that cycle the IC maps the correct curve to the new cell and the shutdowns stop.
Phone not powering on after the replacement cell sat in storage
Lithium-polymer cells self-discharge in storage. If the CPLD-359 cell dropped below approximately 2.5V per cell before installation, the BMS enters lockout mode to prevent damage and blocks normal charge current. The phone shows nothing on screen — no charging animation, no LED. Connect the phone to a wall adapter rated at 5V/1A or higher and leave it for 20–30 minutes without pressing the power button. The charge IC delivers a trickle pre-charge current that slowly brings the cell voltage back above the BMS recovery threshold, after which normal charging resumes and the phone powers on.
