About this replacement

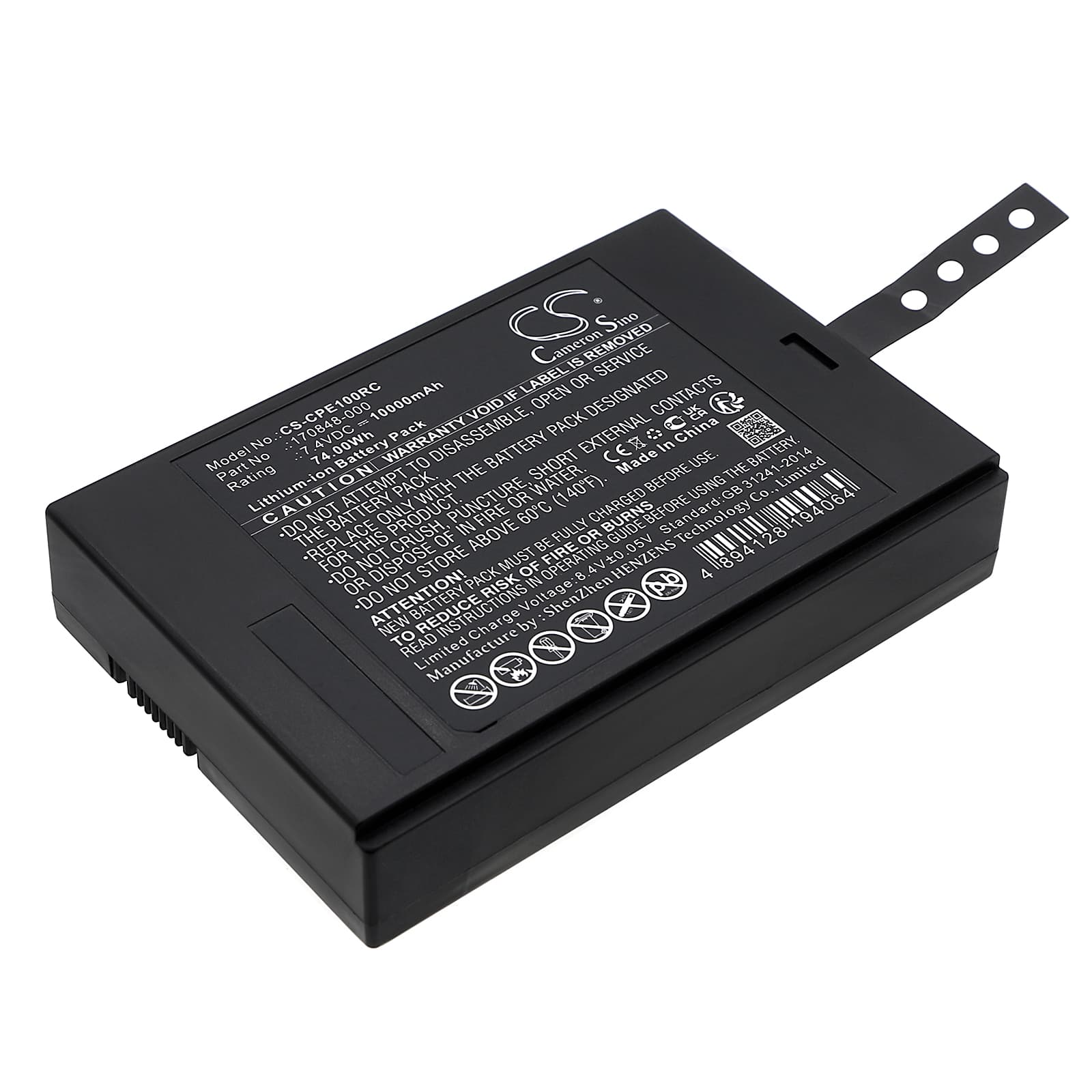

Cradlepoint E100 / E110 LTE Router — 7.4V Li-ion Replacement Battery (170848-000)
This is a 7.4V, 10000mAh (74Wh) Li-ion replacement battery for the Cradlepoint E100 and E110 LTE routers. It slots in as the internal backup power source, keeping the router live during mains failures or grid-unstable deployments. OEM part number 170848-000 confirms fit across both E100 and E110 units.
- E100 and E110 shared battery platform: Both models run the same 7.4V battery rail and use an identical physical connector and BMS handshake. One cell SKU covers both units — no firmware or hardware difference affects fitment.
- Bench tested on actual hardware: We ran this cell through a full charge cycle on an E100 unit and confirmed the router's BMS accepted the new battery within the expected window. The protection circuit responded correctly to both charge termination and low-voltage cutoff events.
- First charge after installation: Leave the router plugged into mains power for at least four hours after fitting this battery. The E100 and E110 firmware runs a charge-acceptance sequence before it will commit the battery to backup duty — skipping this step causes the router to report the battery as unavailable even though it physically seated correctly.
Why the E100 shows a battery error for up to 24 hours after swap
Cradlepoint's firmware does not immediately recognise a newly installed cell as ready for emergency use. The router runs an internal validation cycle that checks cell voltage, charge state, and BMS communication before it clears the battery error flag. A fresh Li-ion cell sitting at partial state-of-charge will fail that initial check. The error clears on its own once the battery reaches a full charge and the firmware completes its acceptance sequence — no reset is required.
Battery self-test failing on E100 / E110 after replacement
The E100 and E110 include a periodic self-test that draws a brief load from the battery and measures voltage response. If the test runs before the cell is fully charged, the voltage sag under load exceeds the firmware's pass threshold and the test logs a failure. This is not a defective cell — it is a timing issue. Allow four hours of continuous mains charging before triggering or interpreting any self-test result. A passing self-test requires the cell to hold above 7.0V under the load pulse.
