About this replacement

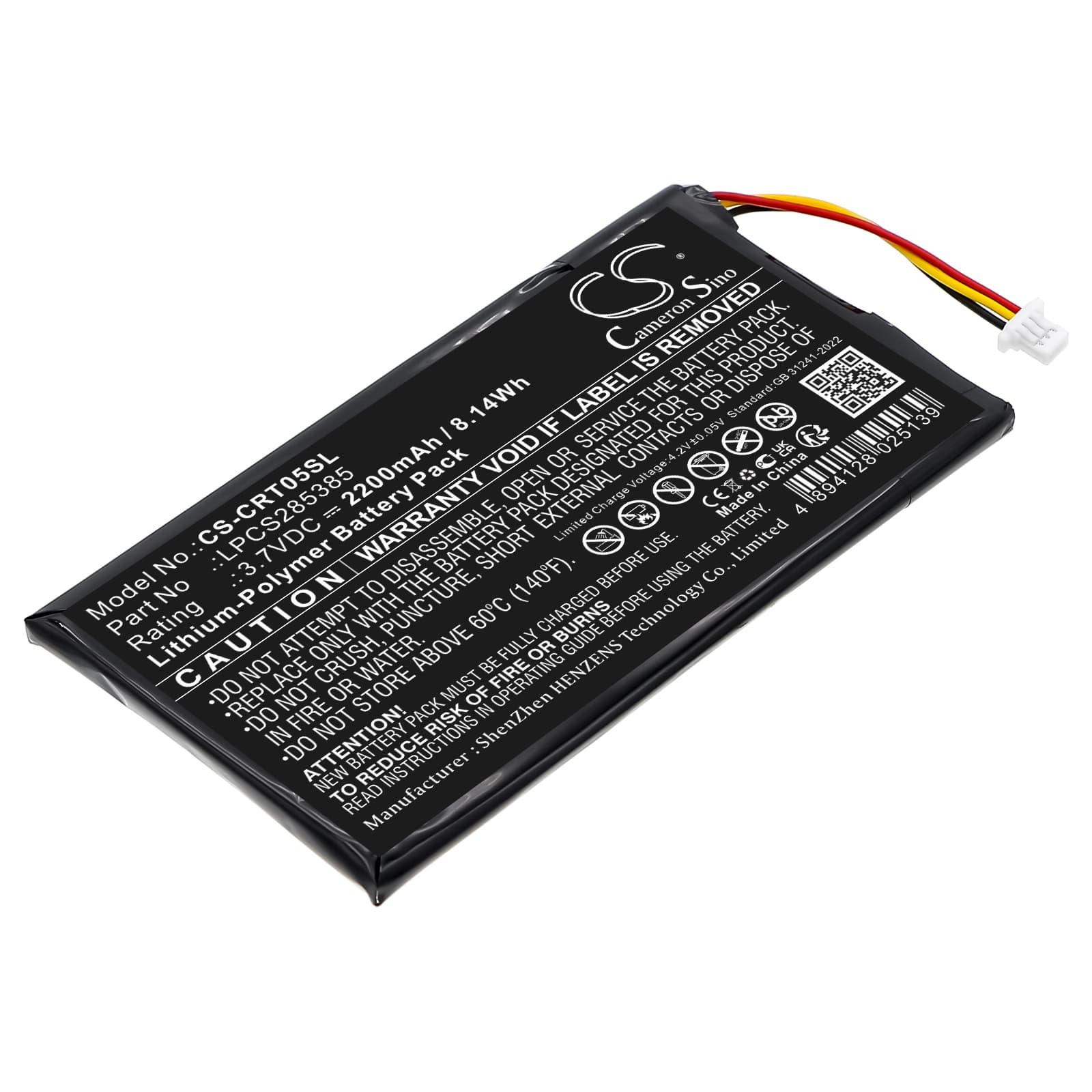

Creative Zen Vision M 30GB — 3.7V Li-Polymer Replacement Battery (LPCS285385)
This 3.7V, 2200mAh lithium-polymer battery replaces the original cell in the Creative Zen Vision M 30GB, Zen Vision M 60GB, and DVP-HD0003 portable media players. It matches the OEM voltage rail and physical footprint at 81.60 × 45.00 × 4.60mm. If your Zen Vision M no longer holds a charge, this cell restores the unit to working condition.
- Zen Vision M 30GB, 60GB, and DVP-HD0003 fit: All three models share the same battery bay dimensions, 3.7V supply rail, and connector pinout. The BMS handshake is identical across the platform, so one cell covers the full range without modification.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on a Zen Vision M unit. The BMS accepted charge current cleanly, voltage held steady through video playback, and the protection circuit tripped at the correct low-voltage cutoff threshold.
- Post-swap trickle charge requirement: If the player sat unused for months before the swap, the new cell may arrive below the device's minimum wake voltage. Connect the charger and leave it for 30 minutes before pressing power — the unit needs a slow trickle to exit deep-discharge protection before it will accept a normal charge current.
Battery percentage jumping after a cell swap on the Zen Vision M
The Zen Vision M tracks charge level using voltage thresholds stored from the previous cell. After installing a new battery, the firmware's calibration data no longer matches the new cell's discharge curve. This causes the indicator to jump — showing 80%, then dropping to 40%, then climbing again. Run two full charge-to-cutoff cycles and the indicator stabilises as the firmware maps the new cell's actual voltage curve.
Playback cutting out before the battery indicator reads empty
The audio amplifier inside the Zen Vision M draws a short burst of higher current at the end of each track buffer refill. Near the bottom of the discharge curve, an aged or low-capacity cell cannot sustain the voltage through that burst, so the device shuts off even though the indicator still shows a small charge remaining. A fresh 2200mAh cell with a lower internal resistance handles those current spikes without the voltage sag. If cutouts persist after the swap, confirm the cell voltage reads above 3.5V under load before suspecting another cause.
