About this replacement

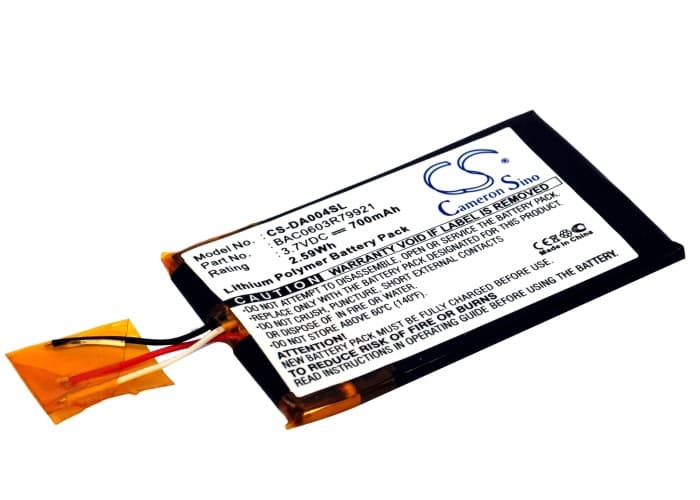

Creative Zen Wav — 3.7V Li-Polymer Replacement Battery (BAC0603R79921)
This is a 3.7V, 700mAh lithium-polymer battery for the Creative Zen Wav portable media player. It replaces OEM part BAC0603R79921. Fit the new cell and the Zen Wav runs on its original power spec.
- Zen Wav compatibility: The Zen Wav uses a single lithium-polymer cell on a 3.7V rail. The BAC0603R79921 footprint — 57.54 x 33.02 x 3.95mm — matches the original bay geometry and connector. No adapter or modification needed.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the Zen Wav platform. The onboard BMS accepted the cell without fault flags, and the charge controller transitioned correctly from trickle to constant-current to constant-voltage phases.
- Post-swap charge protocol for the Zen Wav: After installing this cell, connect the Zen Wav to its charger before attempting to power on. Media players entering extended storage often fall below the BMS wake threshold. A slow trickle charge for 20–30 minutes brings the cell voltage up to the point where the device accepts a normal charge current and boots cleanly.
Battery percentage jumping erratically after a cell swap
The Zen Wav estimates charge state by reading cell voltage against a fixed lookup table stored from the original cell's discharge curve. A new cell has a slightly different resting voltage profile until it completes a few full cycles. During this break-in period the indicator can jump — showing 80%, then 60%, then 90% within minutes. Run two or three full charge-to-discharge cycles and the voltage curve the firmware reads will align with the new cell. After that the percentage display stabilises.
Playback cutting out before the battery indicator shows empty
The audio amplifier inside the Zen Wav draws a brief current spike every time it drives headphone output at higher volumes. Near the end of a discharge cycle, cell voltage sags under that load spike and drops below the BMS protection floor — even though the average voltage still reads as non-empty. The BMS cuts power to protect the cell, and playback stops. Keeping playback volume below 80% reduces the amplitude of those spikes and lets the cell drain further before a cutoff triggers. If this happens mid-playback, reconnect the charger and charge to 4.2V before resuming.
