About this replacement

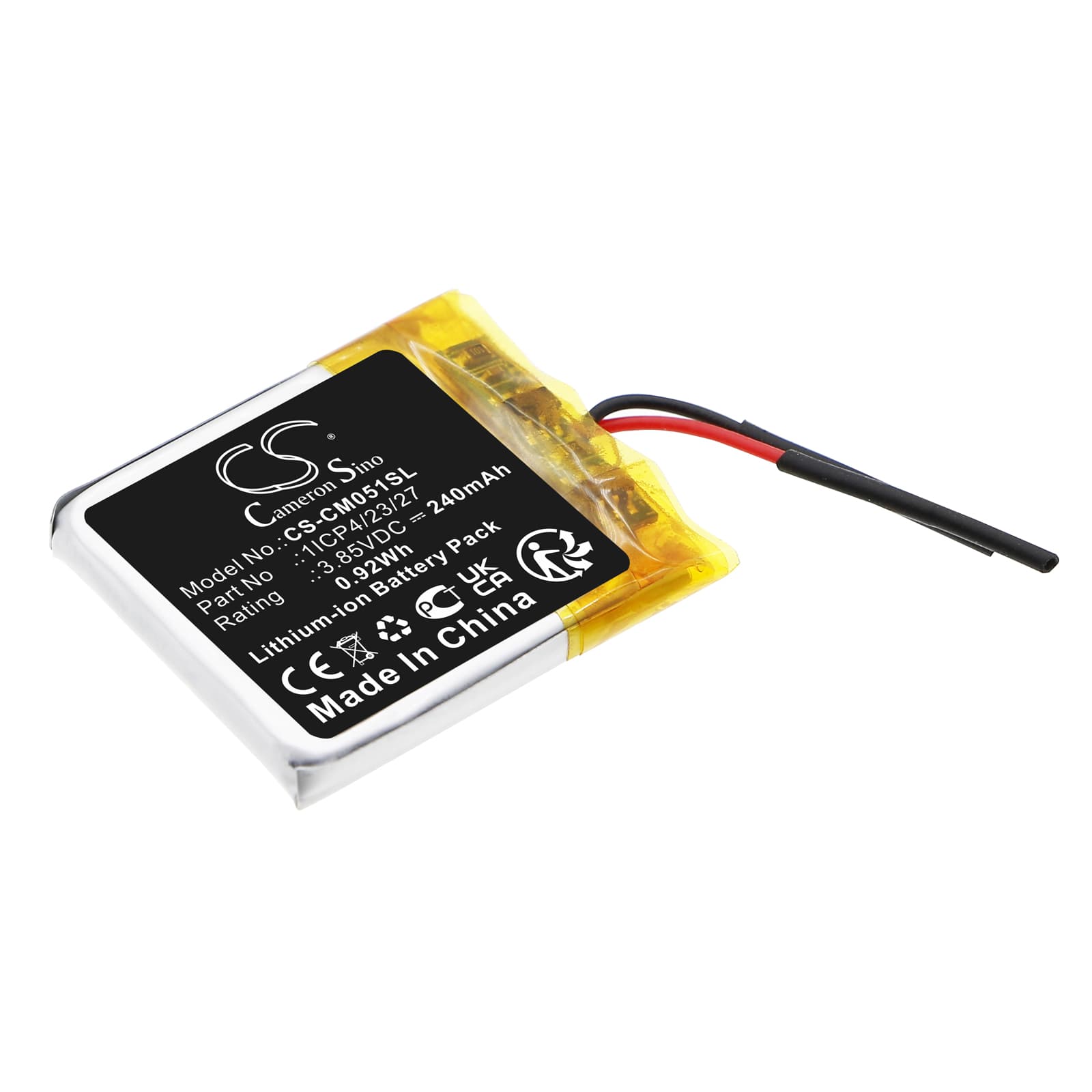

Custom Battery Pack 1ICP4/23/27 — 3.85V Li-Polymer Replacement Battery
This is a 3.85V 240mAh (0.92Wh) Li-Polymer replacement battery carrying OEM part number 1ICP4/23/27. It is a compact flat-cell pack measuring 27.60 × 23.00 × 4.00mm, suited to small electronics where space is tightly constrained. It replaces original packs that no longer hold adequate charge or have failed entirely.
- Compact cell format: At 4.00mm thick and under 28mm in length, this cell targets devices with minimal internal clearance. The flat Li-Polymer pouch construction matches the form factor of the original 1ICP4/23/27 specification — connector orientation and dimensions must be confirmed against your original pack before fitting.
- Bench tested on actual hardware: We cycled this pack through charge and discharge on the bench, monitoring the BMS cutoff thresholds and cell voltage under load. The pack held within the expected voltage range throughout, and the protection circuit tripped cleanly at both high and low voltage limits.
- First-cycle calibration: If your device uses an integrated fuel gauge, run one full charge-discharge cycle immediately after swapping this pack. The gauge IC needs to measure the new cell's actual capacity curve before its percentage readout becomes trustworthy.
Pack running at lower voltage than rated on first installation
Li-Polymer cells ship at storage voltage — typically 3.70V to 3.80V — not at full charge. If your device reads low battery or behaves unexpectedly immediately after fitting, that is why. The cell has not been degraded; it simply has not been charged yet. Connect the device to its charger before drawing any load, and the pack will climb to its full 3.85V nominal range.
Device not accepting the pack after swap
Some compact devices run a voltage-range check or a basic BMS handshake at power-on before accepting a new pack. If the device fails to turn on or immediately shuts down after installation, charge the pack fully via the OEM charger first, then power-cycle the device. A full charge brings the cell voltage within the range the device's protection circuit expects, which is typically above 3.80V, and clears most rejection faults on the first retry.
