About this replacement

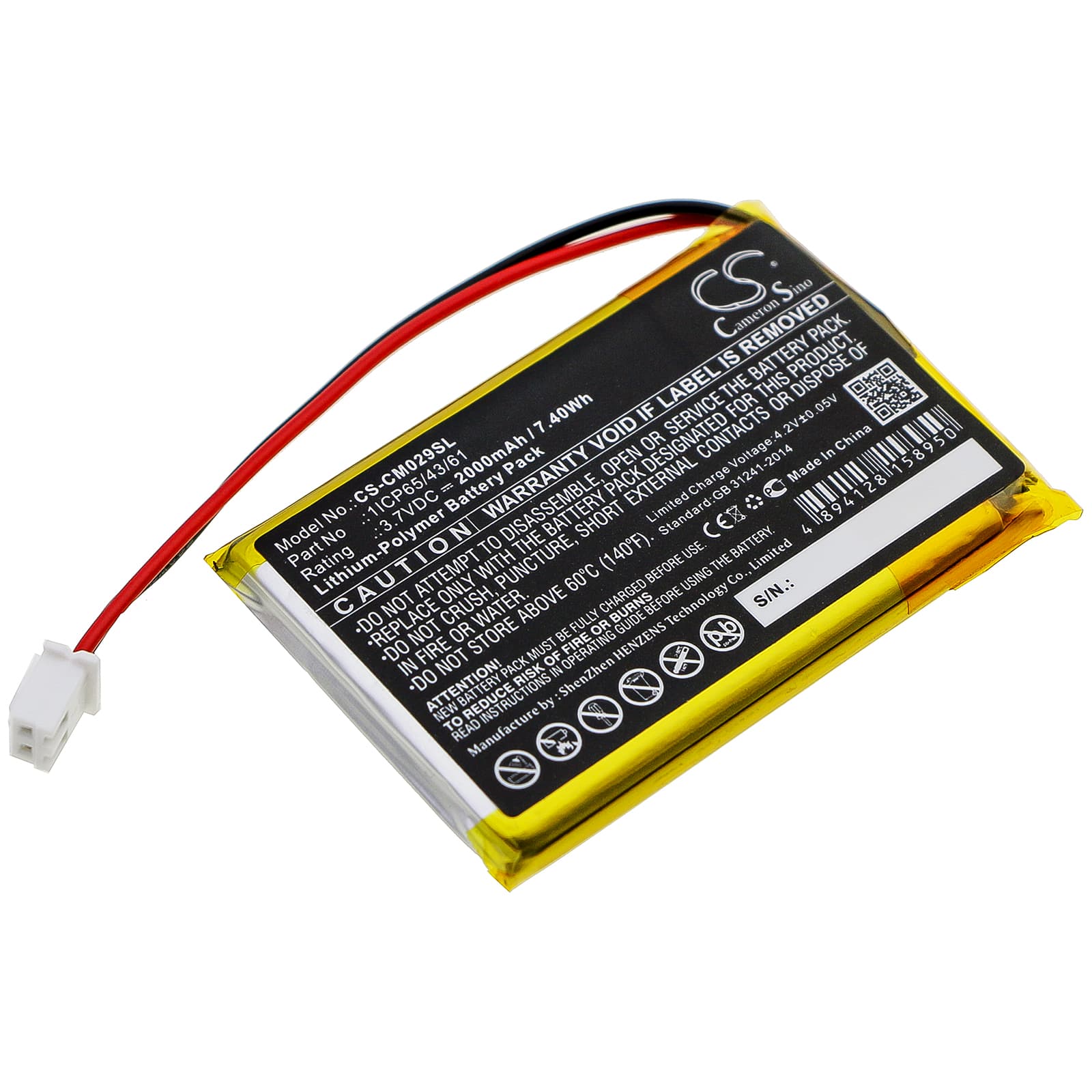

Custom Battery Pack 1ICP59/42/61 — 3.7V Li-Polymer Replacement Battery
This is a 3.7V, 2000mAh (7.4Wh) lithium-polymer replacement cell built to the 1ICP59/42/61 form factor. It measures 62.00 × 41.12 × 5.84mm — a slim pouch cell common in compact portable electronics. If the original pack has swollen, lost capacity, or stopped holding charge, this unit replaces it directly.
- 1ICP59/42/61 form factor: This part number encodes the cell dimensions — 59mm × 42mm × 61mm internal stack geometry in a pouch format. Devices using this cell rely on the exact footprint and lead tab placement for fit and electrical connection, not just voltage.
- Bench tested on actual hardware: We cycled this cell through charge and discharge at 3.7V nominal, confirming BMS cutoff behaviour at the low-voltage threshold and verifying the cell reaches full charge without current limiting after the first conditioning cycle.
- Fuel gauge calibration after swap: If the host device shows a fuel gauge or battery percentage indicator, run one complete charge-to-discharge cycle immediately after installation. Devices with integrated coulomb counters need this cycle to recalibrate against the new cell's actual capacity.
Pack not reaching full charge on the first cycle
New lithium-polymer pouch cells ship at storage voltage — typically 3.6V to 3.85V — not full charge. On the first cycle, the charge IC in the host device or charger may apply a reduced current while it characterises the new cell. This is normal conditioning behaviour, not a fault. By the second full charge, the cell should reach its rated 4.2V terminal voltage without restriction.
Device not recognising the pack after installation
Some devices perform a voltage-range check or BMS handshake before accepting a replacement pack. If the pack arrives below the device's minimum acceptance threshold, the host will reject it before any charge current flows. Connect the pack to a compatible charger first and bring it to at least 3.8V, then reinstall. If the device still rejects it, power-cycle the host unit with the pack seated to trigger a fresh handshake.
