About this replacement

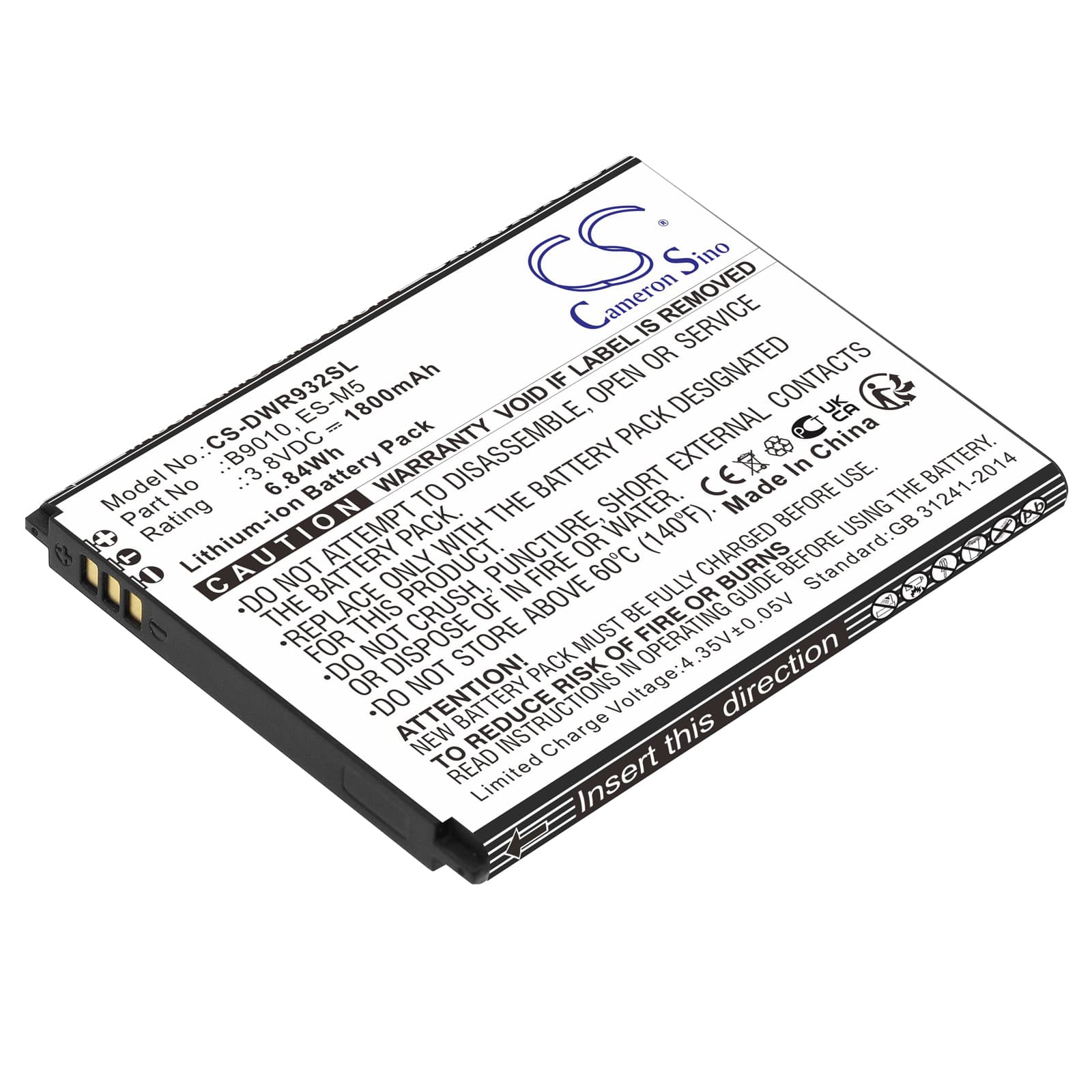

D-Link DWR-932 / DWR-932M — 3.8V Li-ion Replacement Battery (B9010)
This is a 3.8V, 1800mAh Li-ion replacement battery for the D-Link DWR-932 and DWR-932M mobile hotspot. It slots into the battery bay in place of the original B9010 cell. If your hotspot no longer holds charge or won't power on away from a wall socket, this cell restores wireless operation.
- DWR-932 and DWR-932M compatibility: Both models use the same 3.8V single-cell bay, the same B9010 footprint, and the same three-contact connector. The BMS handshake is identical across both variants, so one cell covers both SKUs without modification.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the DWR-932 platform. The BMS accepted the cell on first insertion, charge termination triggered correctly at 4.2V, and protection cutoff engaged at the expected low-voltage threshold without tripping prematurely.
- Fuel gauge recalibration on first use: After fitting this cell, disable any USB fast-charge adapter and run one full discharge-to-charge cycle at standard current. This lets the DWR-932's fuel gauge IC map the new cell's discharge curve before it begins reporting percentage to the firmware accurately.
Why the DWR-932 shuts down suddenly at 20–30% remaining
The DWR-932 combines LTE modem radio bursts with Wi-Fi broadcast simultaneously. That combined load pulls sharp current spikes. A degraded or freshly installed cell with an uncalibrated fuel gauge IC can't sustain voltage under that spike, dropping below the BMS cutoff threshold even though the percentage display still reads high. The device interprets this as a normal shutdown, not a fault. Running one full calibration cycle after installation closes the gap between the displayed percentage and the cell's actual state of charge.
Battery percentage jumping erratically after cell replacement
When a new cell goes in, the coulomb counter inside the DWR-932 is still referencing the discharge curve of the old degraded cell. This mismatch causes the percentage to jump — sometimes 10 to 15 points in either direction — as the IC tries to reconcile measured voltage against a curve that no longer applies. The fix is one complete discharge from 100% down to automatic cutoff, followed by an uninterrupted charge back to full. After that single cycle the fuel gauge IC locks onto the new cell's curve and percentage reporting stabilises.
