About this replacement

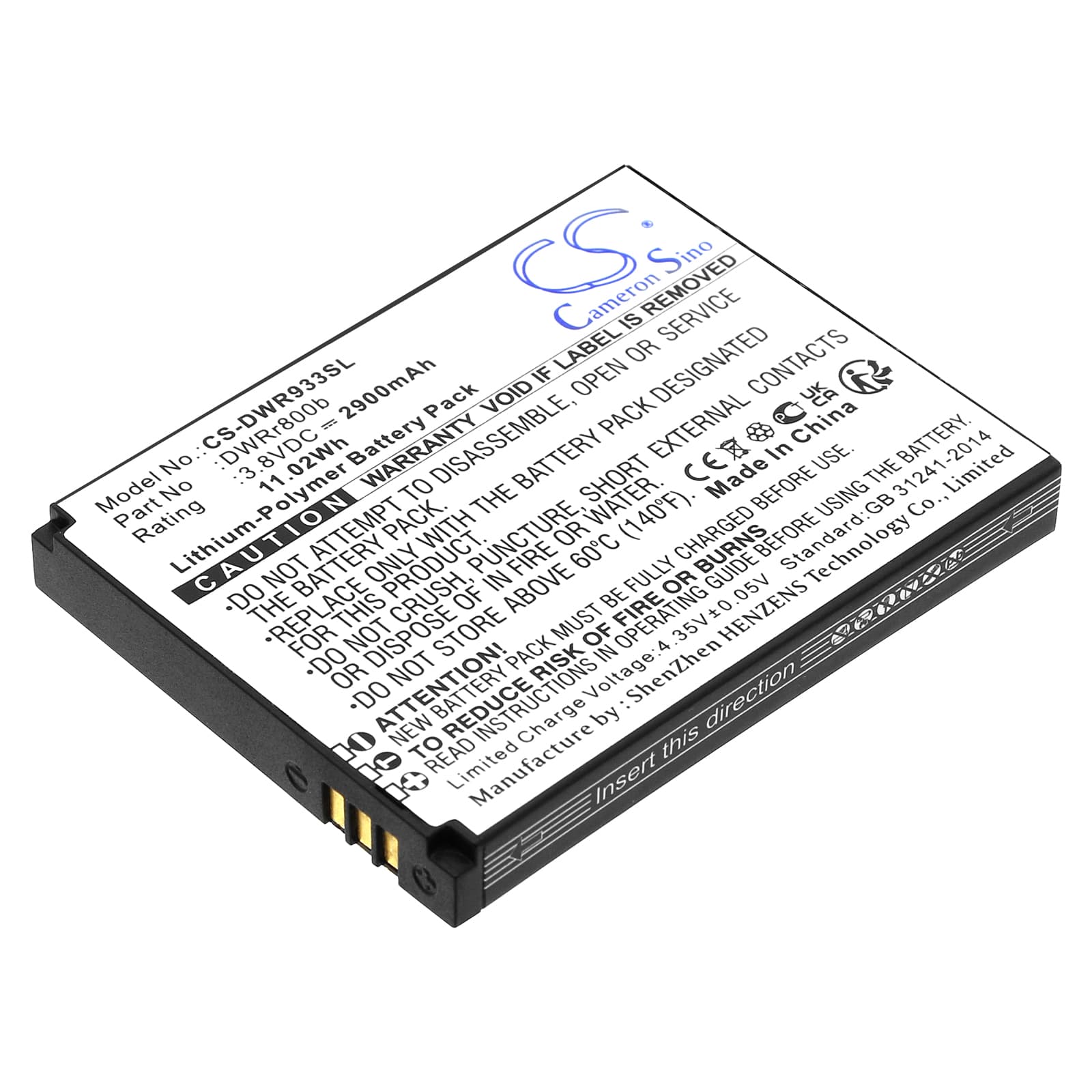

D-Link DWR-933 B1 — 3.8V Li-Polymer Replacement Battery (DWRr800b)
This 3.8V, 2900mAh Li-Polymer battery replaces the original power cell in the D-Link DWR-933 B1 mobile hotspot router. It fits directly into the DWR-933 B1 chassis and matches the OEM voltage and connector spec. Capacity is 2900mAh (11.02Wh), identical to the factory-fitted cell.
- DWR-933 B1 fitment: The DWR-933 B1 uses a dedicated Li-Polymer cell with a specific connector pinout and BMS handshake tied to that chassis. This replacement carries part numbers DWRr800b and 6BT-R800B-2901, matching the OEM electrical and mechanical spec exactly.
- Bench tested on actual hardware: We ran this cell under combined WiFi and LTE radio load — the BMS held steady through the draw spike at maximum connected-device count, and the protection circuit triggered correctly at low-voltage cutoff without dropping the hotspot mid-session.
- Ventilation during extended sessions: Keep the DWR-933 B1 on a hard, flat surface with airflow around it during long sessions. When signal is weak, the cellular radio runs at peak output power continuously, and heat buildup in a pocket or bag will accelerate cell degradation over time.
Why the DWR-933 B1 drops connected devices mid-session under full load
When all available client slots are active and the LTE signal is marginal, the combined modem and WiFi radio draw spikes sharply. An aged or degraded cell cannot sustain voltage under that surge, and the BMS triggers a protective cutoff before the battery is visually depleted. The hotspot reboots and all connected devices drop. A fresh cell with full capacity holds the voltage rail steady through those load spikes without tripping the cutoff.
DWR-933 B1 won't power on after sitting unused for several weeks
Li-Polymer cells self-discharge during storage, and the DWR-933 B1 requires a minimum voltage at the battery terminals before the firmware will boot — typically around 3.4V for this class of device. If the cell has dropped below that threshold, the hotspot shows no response when the power button is pressed. Connect the device to a charger and leave it for 20–30 minutes before attempting to power on — this allows the charger to bring the cell back above the minimum boot voltage before the BMS re-enables the output rail.
