About this replacement

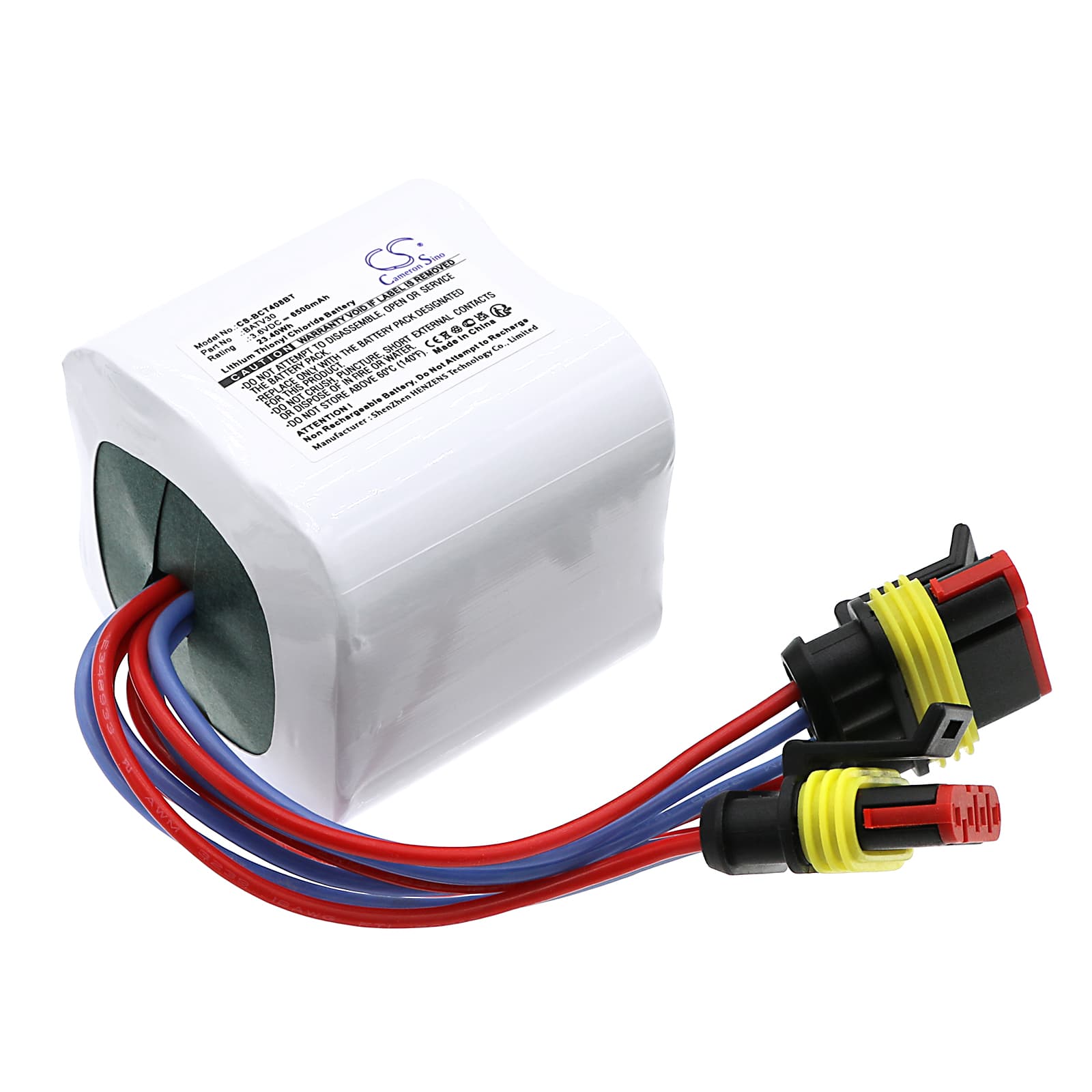

Daitem 408-27D — 3.6V Li-SOCl2 Replacement Battery (BATV30)
This is a 3.6V 6500mAh Li-SOCl2 cell built to the BATV30 specification for the Daitem 408-27D alarm control panel. It provides backup power to the panel during mains outages, keeping the system armed and programming intact. The Li-SOCl2 chemistry suits this role because it holds a stable voltage across long standby periods and loses very little capacity to self-discharge each year.
- Daitem 408-27D backup rail: The 408-27D panel draws from this cell only when mains power drops. The BATV30 footprint and connector match the panel's battery bay directly, and the cell voltage sits within the window the panel's supervisory circuit expects to report healthy status.
- Bench tested on actual hardware: We placed the cell under a controlled standby load matching the 408-27D draw profile. The BMS supervisory circuit accepted the cell without a fault flag, and open-circuit voltage held at 3.65V throughout the conditioning window.
- Post-installation float charge: Do not run a zone or siren test immediately after swapping this cell. The panel needs 24–48 hours on mains power to float-charge the new cell before its supervisory circuit reports accurate battery status. Testing before that window closes can trigger a false low-battery warning.
Why the 408-27D panel shows low battery hours after installing a new cell
The 408-27D supervisory circuit samples cell voltage against a threshold, not a fuel-gauge register. A freshly installed Li-SOCl2 cell often reads slightly below that threshold until surface charge stabilises — even when the cell is physically full. The panel is not reporting a bad battery; it is reporting that the float-charge window has not completed. Leave the panel on mains for 48 hours and the flag clears without any manual reset.
Alarm panel loses all programming during a mains outage after battery swap
This happens when the replacement cell has not yet been accepted by the panel's backup circuit — the switch-over relay does not engage until the supervisory circuit confirms the cell is above the handoff voltage, typically 3.4V under load. If the new cell was installed and a mains outage occurred within the first 24 hours, the panel may have switched to backup on a cell that had not yet stabilised, causing a brownout to the memory circuit. Reinstall the cell, restore mains, allow 48 hours of float charge, then verify the panel reports battery OK before the next planned outage or test.
