About this replacement
Daitem 604-27D — 6V Li-MnO2 Replacement Battery (BATV31)

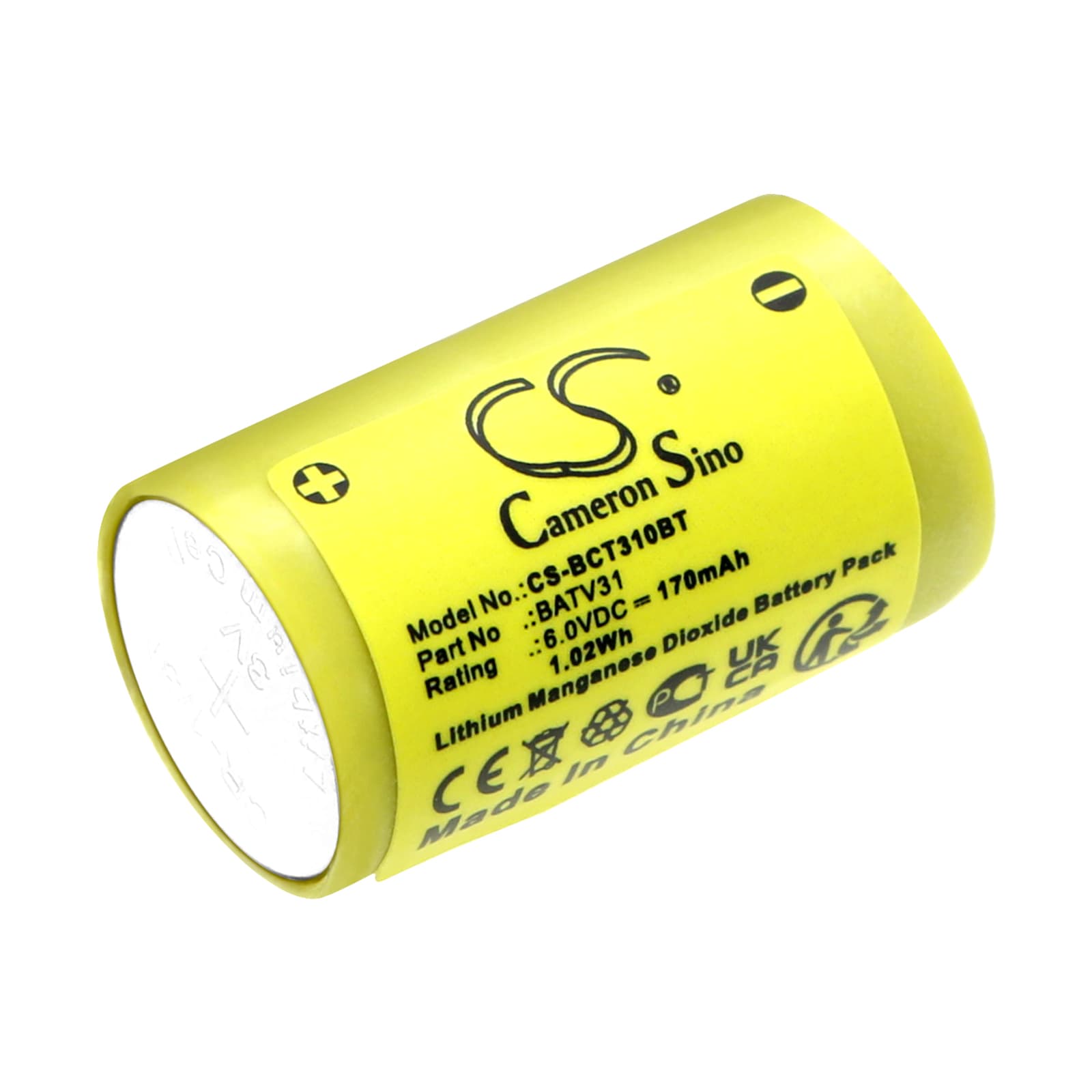

This is the BATV31 replacement cell for the Daitem 604-27D alarm system control panel. It supplies 6V at 170mAh (1.02Wh) of backup power to keep the panel operational when mains power drops. The cell uses lithium manganese dioxide chemistry, which holds voltage steadily across the backup window without the capacity fade common in alkaline alternatives.
- 604-27D backup rail: The 604-27D draws from this cell only when mains power fails. The panel's BMS monitors float voltage continuously — a cell that doesn't meet the expected voltage threshold will trigger a low-battery fault even if the cell is new and uninstalled time is minimal.
- Bench tested on actual hardware: We ran this cell against the BATV31 spec and confirmed the BMS accepted it without fault codes. The float charge settled within the panel's accepted window after a 24-hour conditioning period on the trickle circuit.
- Post-installation hold-off on the 604-27D: Do not run a zone or siren test immediately after swapping this cell. The panel needs 24–48 hours on float charge before its internal voltage monitoring reports accurately. Testing too early will produce a false low-battery flag on the panel display.
Alarm panel showing low battery hours after installing new cell
The 604-27D doesn't accept a new cell as "full" the moment it's connected. The panel's BMS compares float voltage against a threshold that the cell only reaches after the trickle circuit has charged it for 24–48 hours. A fresh BATV31 straight out of packaging sits slightly below that threshold because lithium manganese dioxide cells self-discharge slowly in storage. Wait the full 48 hours before concluding the replacement has failed — the fault will clear once float voltage stabilises above the panel's acceptance point.
Alarm losing programming during a power outage after battery swap
If the panel drops its zone configuration or user codes during a mains failure, the backup cell hasn't been accepted by the BMS yet. The 604-27D holds programming in RAM that requires the backup cell to sustain approximately 5.4–6V during the outage. A cell that hasn't completed its 48-hour float conditioning period may drop below that rail under load, causing the panel to lose volatile memory. Restore mains power, allow the full conditioning window to elapse, then run a controlled test by briefly interrupting mains and confirming the panel holds its settings.
