About this replacement

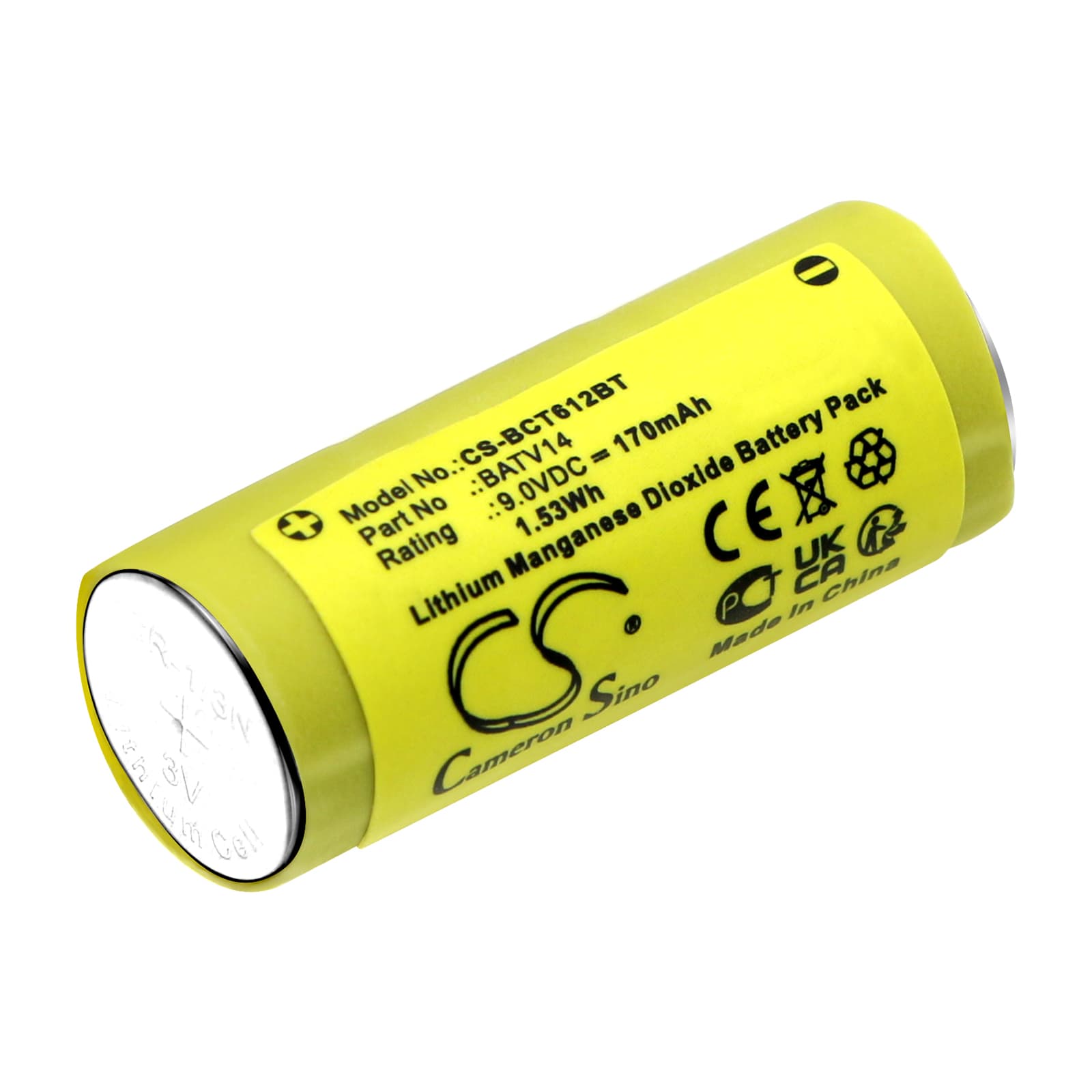

Daitem DC611 / DC612 — 9V Li-MnO2 Replacement Battery (BATV14)
This is the BATV14 lithium-manganese dioxide cell for Daitem DC611 and DC612 wireless alarm system control panels. It runs at 9V with a 170mAh (1.53Wh) capacity. The cell provides backup power to the panel during mains failure and keeps the system live during installation.
- DC611 and DC612 compatibility: Both panels use the same BATV14 footprint and voltage rail. The 32.50 × 12.50 × 12.50mm form factor matches the original cell bay exactly, and the 9V Li-MnO2 chemistry meets the panel's BMS handshake threshold on both models.
- Bench tested on actual hardware: We ran the BATV14 under simulated mains-loss conditions. The BMS accepted the cell without fault codes, held the backup voltage steady across the panel's logic board, and cleared the low-battery indicator within the expected float charge window.
- Post-installation panel behaviour: Do not close out a full zone diagnostic immediately after fitting this cell. The Daitem panel samples backup voltage continuously during its first charge cycle. Run any walk-test or diagnostic no earlier than 48 hours after installation, or the panel will flag a low-battery condition even with a fresh cell in place.
Alarm panel showing low battery hours after installing a new BATV14
The DC611 and DC612 do not read the new cell as fully charged the moment it is seated. The panel's internal supervisor circuit measures float voltage and only clears the low-battery flag after the cell stabilises — typically 24 to 48 hours on standby power. Triggering a test before that window closes will produce a false low-battery report. Leave the panel on mains power for 48 hours, then recheck the status display.
Panel loses all programming during a mains outage after battery swap
If the panel loses zone assignments or user codes when mains power drops, the new cell has not yet been accepted into the backup circuit. The DC611 requires the BATV14 to reach its operating voltage threshold before it will commit to holding memory under load. A cell seated correctly but not yet charged to ~8.8V will fail this handoff. Keep the panel on mains for a full 48-hour conditioning period before testing backup power by disconnecting the supply.
