About this replacement

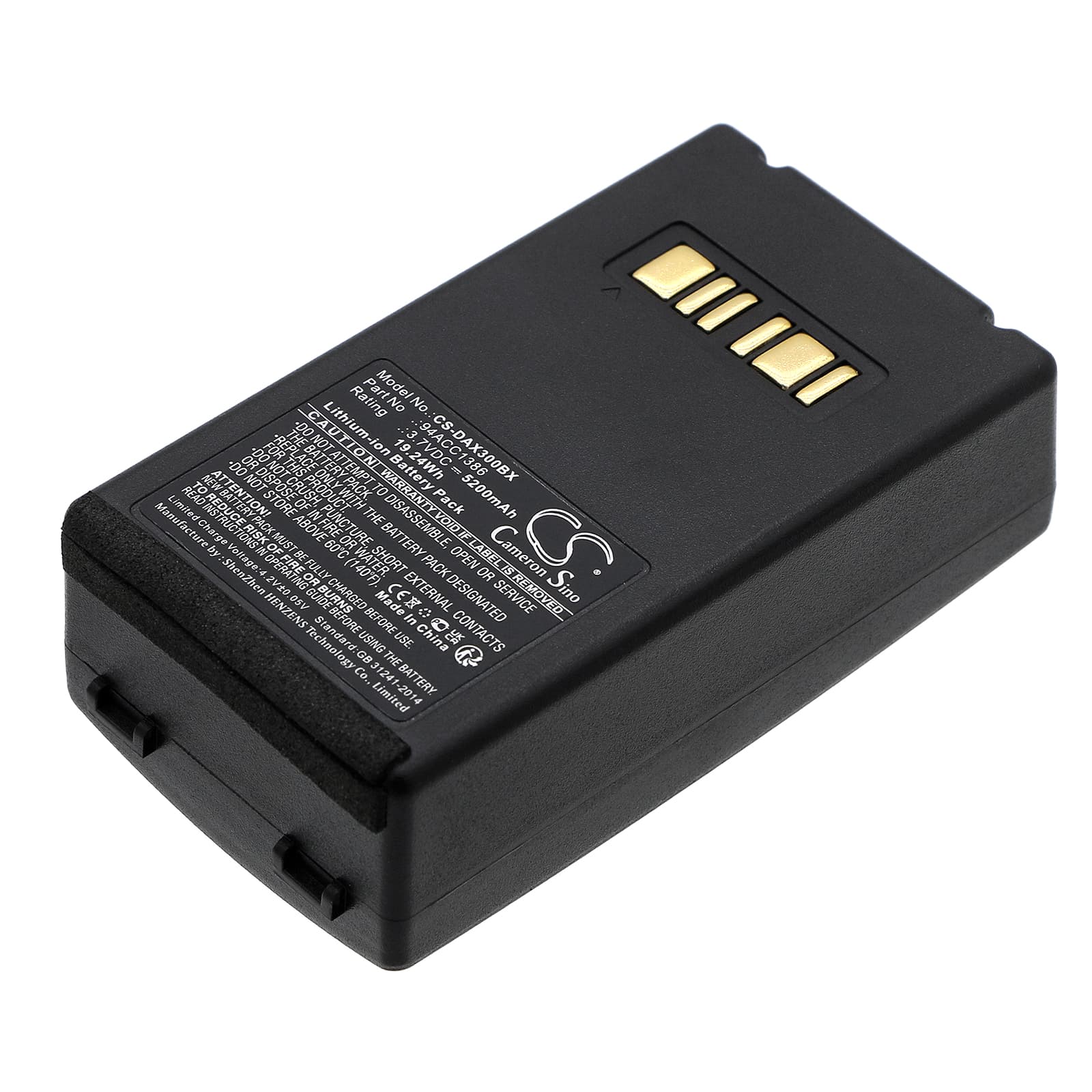

Datalogic Falcon X3 / X4 Series — 3.7V Li-ion Replacement Battery (94ACC1386)
This is a 3.7V, 5200mAh Li-ion battery for the Datalogic Falcon X3, Falcon X3+, Falcon X4, and compatible variants. It replaces OEM part numbers 94ACC1386, BT-26, 4ACC0046, and BT-0016. The Falcon X3 is a rugged handheld barcode scanner used in warehouse, retail, and logistics environments for inventory and data collection tasks.
- Falcon X3, X3+, and X4 compatibility: These models share the same 3.7V battery platform, connector pinout, and BMS handshake protocol. One pack works across all three variants without modification.
- Bench tested on actual hardware: We ran this pack on a Falcon X3 unit through scan-burst cycles under wireless polling load. The BMS held stable across repeated trigger draws and did not trip at partial charge states.
- First-shift preparation: After installing, seat the scanner in its cradle and complete a full charge cycle before use. The scan trigger draws its highest inrush current when the cell is near minimum voltage — a fully charged pack prevents false BMS trips during the first pick-and-pack shift.
Cradle showing charging error on a new pack
A charging error on the dock does not always mean a faulty battery. Contact resistance at the pack's charging terminals is the most common cause — dust, warehouse grime, or residue from the old battery can break the circuit between pack and cradle. Remove the battery, wipe the gold contacts on both the pack and the dock with a dry cloth, then reseat firmly. If the error clears, the cell is charging normally.
Scanner losing wireless connection during rapid scan bursts
The Falcon X3 draws simultaneously from the radio and the scan trigger during fast scan sequences. If the battery is aged or partially discharged, combined inrush from both loads can sag the cell voltage below the BMS cutoff threshold, dropping the wireless link mid-burst. A new 5200mAh pack at full charge has enough capacity headroom to sustain both draws without voltage sag. Start each shift with the pack at or above 3.6V per cell to avoid mid-shift dropouts.
