About this replacement

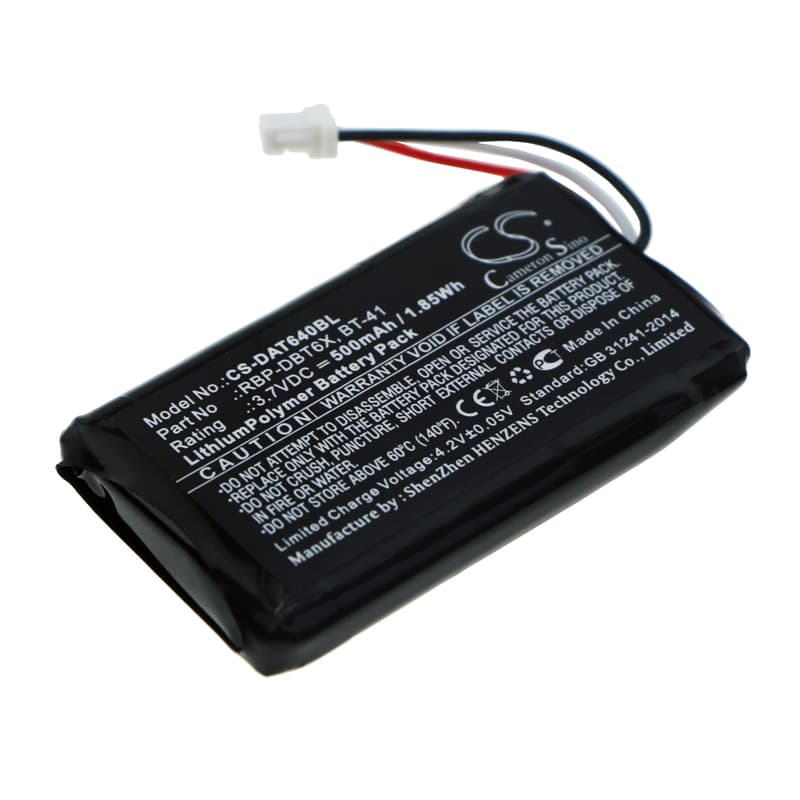

Datalogic RIDA DBT6400 — 3.7V Li-Polymer Replacement Battery (RBP-DBT6X)
This is a 3.7V, 500mAh lithium-polymer battery for the Datalogic RIDA DBT6400 handheld barcode scanner. It fits the DBT6400 scanner body and the RBP-6400 configuration. OEM cross-references are RBP-DBT6X, BT-41, and 128004100.
- DBT6400 and RBP-6400 fit: Both the DBT6400 scanner and the RBP-6400 share the same battery bay dimensions, connector pinout, and BMS handshake protocol — one pack covers both. The 3.7V nominal rail matches the voltage regulation circuit on either unit.
- Bench tested on actual hardware: We cycled this pack through repeated scan-trigger and wireless polling loads. The BMS held stable across inrush events and did not false-trip during back-to-back barcode read sequences.
- First-shift cradle conditioning: After fitting a new pack, place the scanner in its charging cradle and run a full charge cycle before the first pick-and-pack shift. The scan trigger pulls the highest inrush current when the cell is near minimum — a pre-charged cell stops the BMS from tripping on that first burst.
Cradle showing charging error on a new DBT6400 pack
The DBT6400 cradle reads battery state through four gold contacts on the base of the scanner. If any contact has oxidation or debris, the cradle throws a charge fault even when the pack itself is fine. Remove the scanner, inspect all four contacts on both the pack and cradle, and wipe them with a dry cloth. Reseat the scanner firmly — a partial seating raises contact resistance above the cradle's detection threshold and produces the same error.
Scanner losing wireless connection during rapid scan bursts
The DBT6400 draws simultaneously from the wireless radio and the imager during a fast scan sequence. On a degraded or deeply discharged cell, this combined inrush pulls the voltage rail below the radio module's minimum, and the connection drops. The BMS may also interpret the combined draw as an overload and briefly cut output. Charge the pack fully before the shift, and if dropouts continue on a new pack, check that the battery contacts are clean — dirty contacts add resistance that worsens voltage sag under load.
