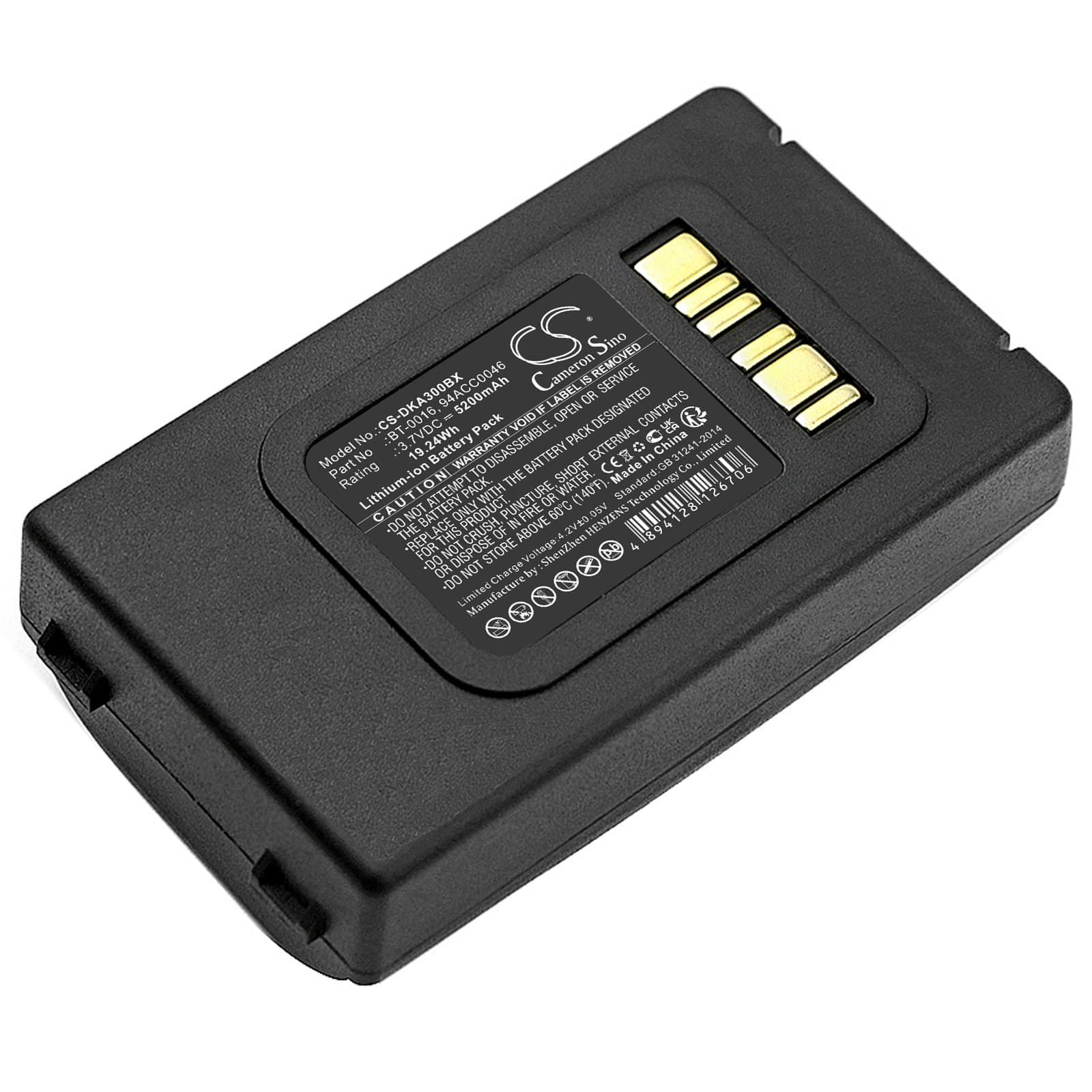

Datalogic Skorpio X3 / X4 — 3.7V Li-ion Replacement Battery (BT-0016)
This is a 3.7V, 5200mAh Li-ion replacement battery for the Datalogic Skorpio X3 and Skorpio X4 handheld barcode scanners. It replaces OEM part numbers BT-0016, BT-0015, 94ACC0046, and 94ACC0048. It fits scanners used in warehouse pick-and-pack, retail receiving, and logistics scanning operations.
- Skorpio X3 and X4 compatibility: Both models share the same battery bay dimensions, connector pinout, and BMS handshake protocol — a single cell pack covers both platforms without modification or adapter.
- Bench tested on actual hardware: We ran this pack through the Skorpio X3 BMS initialisation sequence, confirmed the protection circuit trips correctly at undervoltage, and verified the dock charge path accepted the cell without a fault code.
- First-shift charging tip: After installing the new pack, seat the scanner in its cradle and let it complete a full charge cycle before starting a pick-and-pack shift. The scan trigger draws a short inrush current each time it fires. Near minimum charge, that inrush can trip the BMS and cause an unexpected shutdown on the first morning of use.
Cradle showing a charging error on a new pack
The Skorpio charging cradle reads battery state through the dock contacts on the base of the scanner. If those contacts have oxidation or debris from warehouse dust, the cradle firmware interprets the high contact resistance as a fault and throws a charging error even on a fully functional new pack. Wipe the gold contacts on both the battery pack and the scanner base with a dry cloth, then reseat the unit firmly in the cradle. If the error clears, contact resistance was the cause — not a faulty cell. The cradle LED should switch from error to charging within 10 seconds of a clean reseat.
Scanner losing wireless connection during rapid scan bursts
The Skorpio X3 runs its 802.11 radio and its imager simultaneously during a fast scan burst. That combined draw creates a momentary voltage sag on the cell. If the pack is partially discharged, the sag can dip below the BMS low-voltage threshold and force a temporary radio disconnect while the imager stays active — which looks like a Wi-Fi drop rather than a battery problem. The fix is to keep the pack above 30% charge during high-frequency scanning sessions. Check remaining charge via the scanner's status screen; if voltage reads below 3.5V under load, return the unit to the cradle before continuing the shift.
