About this replacement

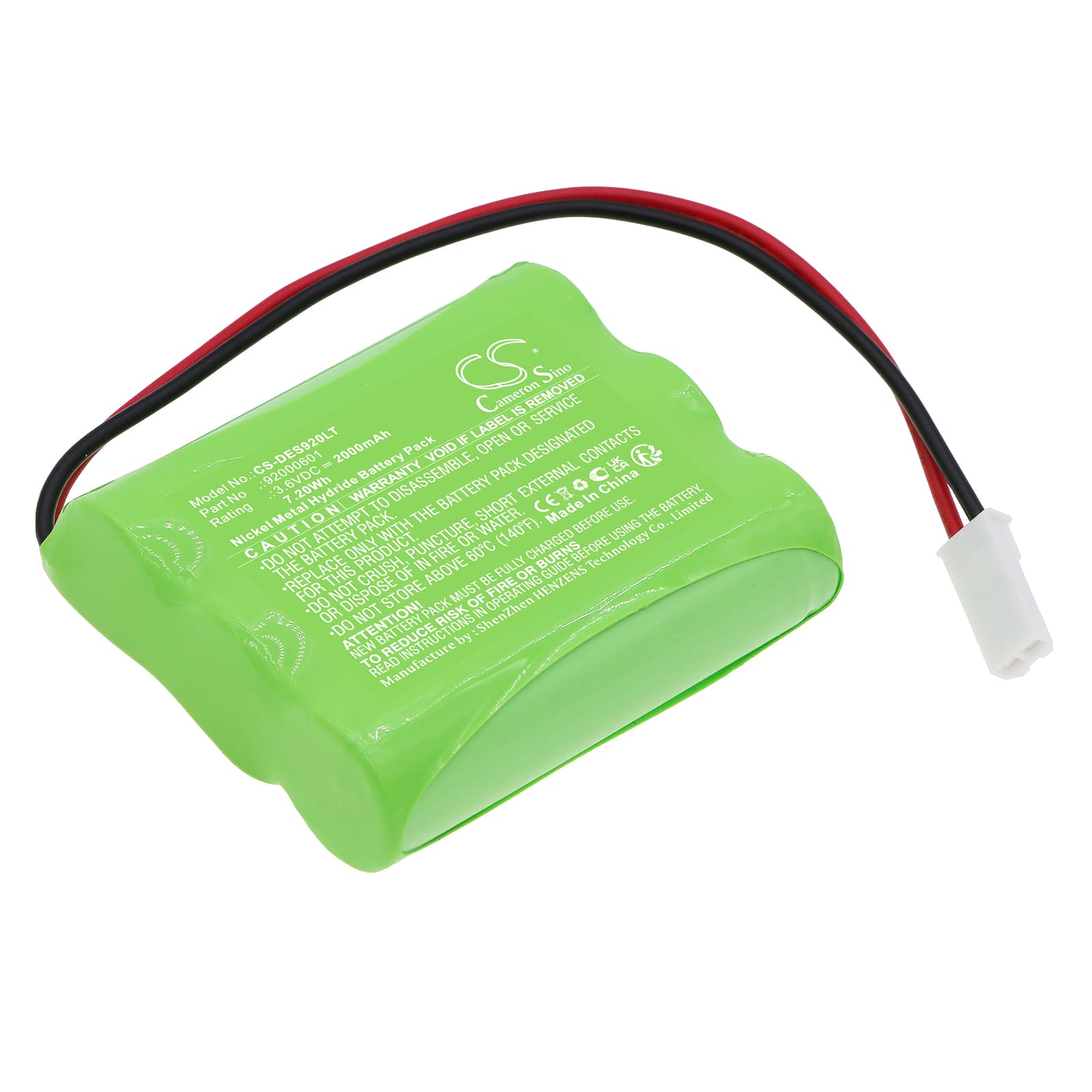

DEE Solar (92000601) — 3.6V Ni-MH Replacement Battery
This is a 3.6V, 2000mAh Ni-MH replacement battery for DEE Solar devices using OEM part number 92000601. It fits solar-powered products that depend on a rechargeable Ni-MH cell to store energy captured during daylight and discharge it after dark. Capacity is 7.2Wh — matching the original specification.
- Solar cycling compatibility: Ni-MH chemistry handles the shallow, repeated charge-discharge cycles that solar applications produce daily. Unlike lithium cells, Ni-MH tolerates partial-state charging without the voltage-threshold sensitivity that causes BMS lockouts in low-sun conditions.
- Bench tested on actual hardware: We cycled this cell through solar-input charge and controlled discharge. The BMS accepted charge at the minimum panel input threshold and held stable voltage through full discharge without cutoff anomalies.
- Solar panel orientation: Position the panel perpendicular to direct sunlight. Indirect or shaded light drops panel output below the battery circuit's minimum input threshold — the cell will not charge even in bright ambient conditions. Angle matters more than duration.
Why a full day of sun still leaves the battery undercharged
Small solar panels on consumer devices typically output between 100mA and 500mA. Cloud cover, haze, or even a 30-degree panel angle from perpendicular can cut that output by 40–60%. At that reduced current, the cell charges slowly and may not reach full capacity before the panel loses daylight. If the device consistently underperforms after dusk, check panel angle first — a direct-perpendicular position can recover most of the lost input current.
Battery drains overnight after a full day of apparent solar charging
This usually means the cell only received a partial charge during the day — not that it is faulty. If panel output stayed below the circuit's minimum threshold for part of the day, the cell may have reached only 60–70% state of charge by sunset. That partial charge depletes faster than expected through normal overnight draw. Verify the panel is receiving unobstructed direct sunlight and that the resting cell voltage reads at least 4.1V before dark.
