About this replacement

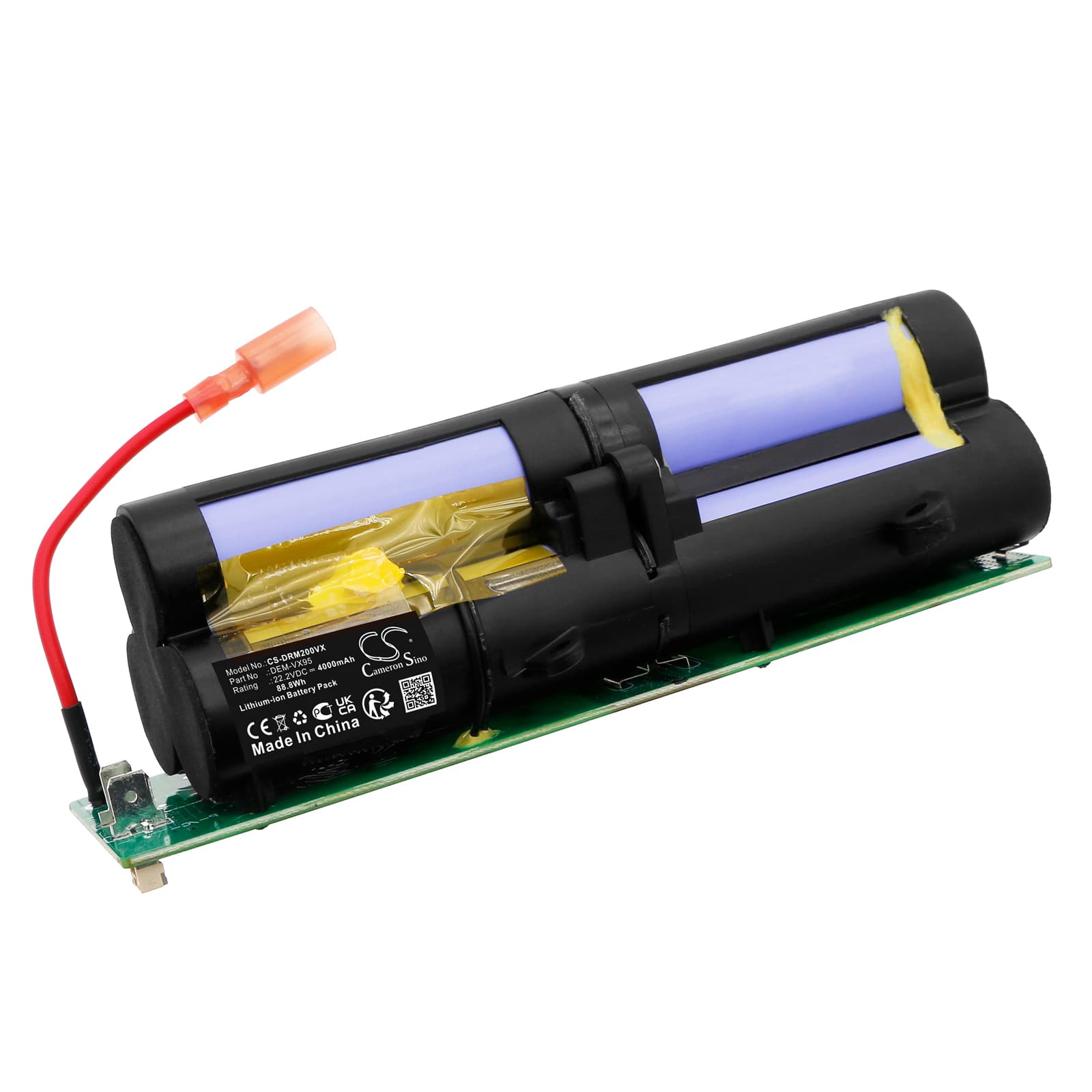

Deerma DEM-P20 / DEM-P30 — 22.2V Li-ion Replacement Battery (DEM-VX95)
This is a 22.2V 4000mAh Li-ion battery pack for the Deerma DEM-P20 and DEM-P30 cordless stick vacuums. It replaces the original DEM-VX95 pack and restores full motor voltage to both models. Use it when the original cell no longer holds a working charge across a full clean cycle.
- DEM-P20 and DEM-P30 compatibility: Both models run the same 22.2V motor rail, share the DEM-VX95 connector and BMS handshake, and accept this pack without any modification to the vacuum body or charging port.
- Bench tested on actual hardware: We ran this pack through charge and discharge cycles on a DEM-P20 unit. The BMS held correct cell balancing across all six cells, and the charger handshake completed without error on first connection.
- Dock charging habit on this vacuum: Do not leave the DEM-P20 or DEM-P30 sitting on the charging dock continuously. These vacuums are not designed for permanent dock charging — trickle charge from the dock degrades cell capacity faster than normal cycle use. Charge to full, then remove the battery or vacuum from the dock.
Suction dropping before the battery indicator reaches low on the DEM-P20
This is one of the most common complaints on the DEM-P20 and it is almost never a battery failure at first. When the filter is partially blocked, the motor works harder to pull airflow and draws more current than rated. The BMS reads this overcurrent as a low-capacity state and begins throttling motor voltage — suction drops while the indicator still shows two or three bars. Clean or replace the filter, then retest. If suction stays strong through a full cycle after that, the battery is fine.
Motor cuts out mid-use and then restarts after a short pause
This is a BMS overcurrent trip, not a dead cell. On the DEM-P20, sustained restricted airflow — caused by a blocked nozzle, full dust cup, or clogged filter — forces the motor into a high-draw state the BMS is programmed to interrupt. The pack shuts output, waits for the protection circuit to reset, then allows the motor to restart. The fix is clearing the restriction before the next run. If cut-outs continue on a clean, unblocked vacuum, check pack voltage under load — it should not drop below 18V at peak motor draw.
