About this replacement

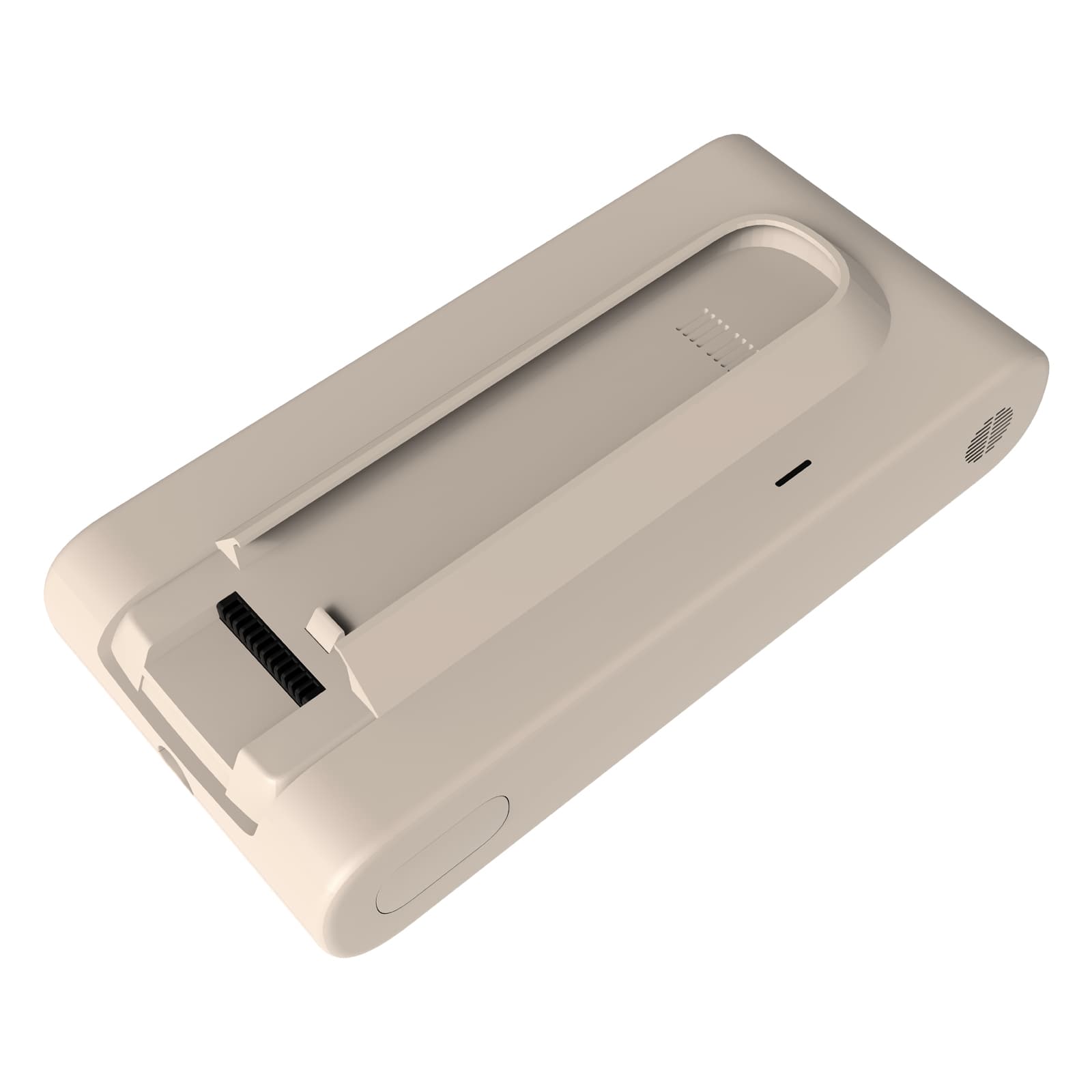

Deerma DEM-U10 / DEM-U20 — 25.2V Li-ion Replacement Battery (V2315-7S1P-SCA)
This is a 25.2V 2000mAh Li-ion replacement battery for the Deerma DEM-U10 and DEM-U20 cordless stick vacuums. It replaces OEM part numbers V2315-7S1P-SCA and V2316-7S1P-SCA. If suction has been dropping off faster than it used to, or the unit no longer holds a charge, this battery restores full motor power to the vacuum.
- DEM-U10 and DEM-U20 compatibility: Both models run the same 25.2V seven-cell series configuration and share an identical connector and BMS handshake protocol. Either OEM part number — V2315-7S1P-SCA or V2316-7S1P-SCA — fits both units without modification.
- Bench tested on actual hardware: We ran this cell pack through full charge and discharge cycles on a DEM-U10 body. The BMS correctly flagged overcurrent during a simulated blocked-nozzle draw and cut motor power without tripping the charger circuit on reconnect.
- Dock charging habit on the DEM-U10: Do not leave this vacuum on the charging dock permanently. Cordless vacuums held on continuous trickle charge develop measurable capacity fade faster than units charged only when depleted. Charge to full, then remove from the dock.
Suction dropping before the battery indicator reaches low
This is a voltage-sag issue, not always a dead battery. When a filter is even partially blocked, the motor draws more current than rated to maintain airflow. That elevated draw causes the cell voltage to sag under load, which the BMS reads as low charge and reduces motor speed to protect the pack. Clean or replace the filter first — if suction recovers and holds, the battery is fine. If sag continues on a clean filter with a new battery, measure resting voltage: a healthy fully charged pack should sit at 25.2V.
Motor cutting out mid-use and then recovering after a pause
This is a BMS overcurrent trip, not a battery failure. It happens when restricted airflow — usually a clogged filter or blocked nozzle — forces the motor to sustain a current draw above the pack's rated threshold. The BMS interrupts power to protect the cells, then resets once current demand drops. Clearing the blockage stops the cycle. If cut-outs continue on a clear filter with a new battery, the BMS trip threshold on the replacement cell may be tighter than the original — run a clean-filter pass and check whether the cut-out occurs only under hard carpet load.
