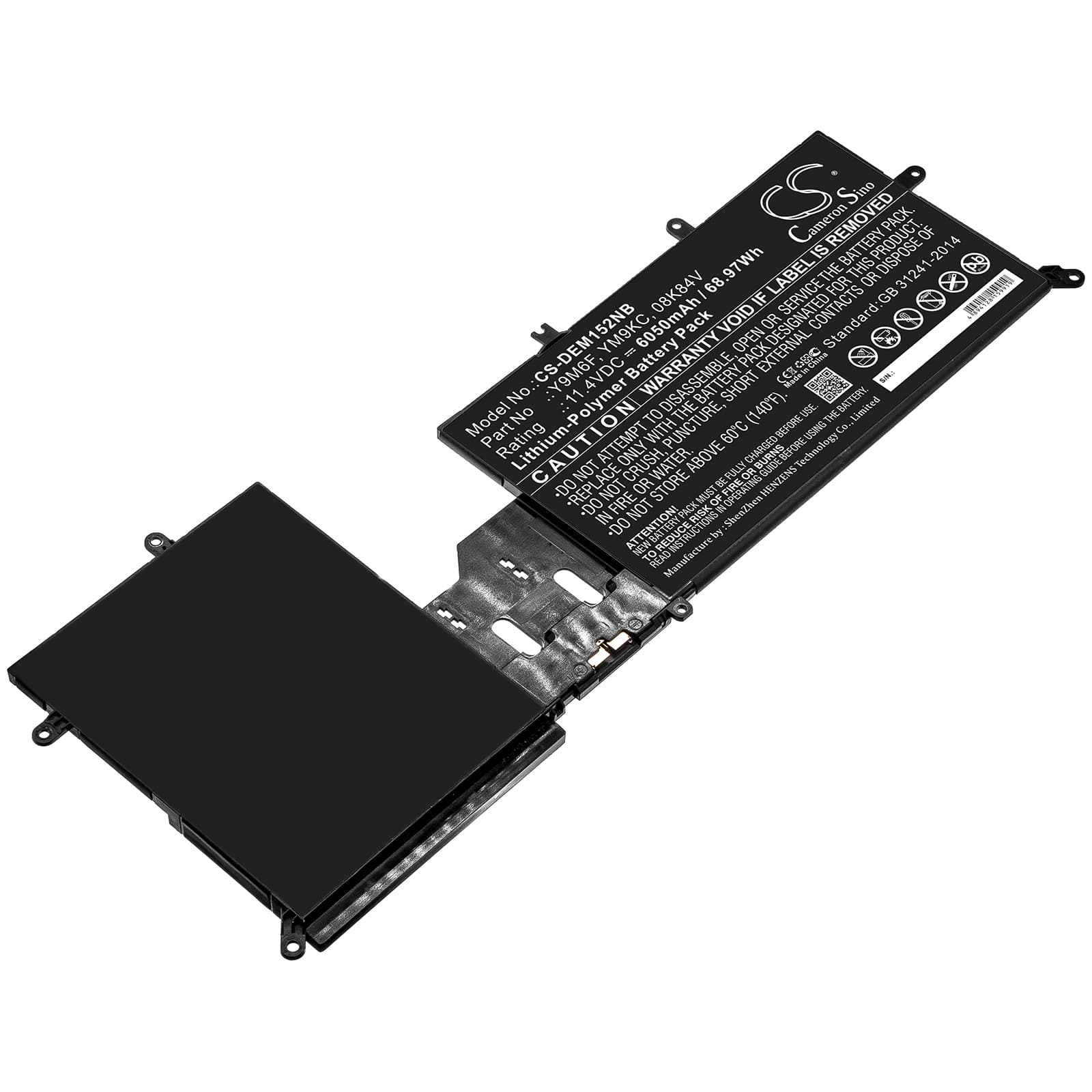

Dell Alienware M15 R2 — 11.4V Li-Polymer Replacement Battery (08K84V)
This 11.4V, 6050mAh (68.97Wh) lithium-polymer cell replaces the original battery in the Dell Alienware M15 R2 and M17 R2 gaming laptops. It fits the same connector and BMS handshake as OEM part numbers 08K84V, Y9M6F, and YM9KC. Install it when the original cell no longer holds a usable charge under GPU and CPU load.
- M15 R2 and M17 R2 platform fit: Both the M15 R2 and M17 R2 share the same battery bay geometry, connector pinout, and BMS communication protocol — so one cell covers both chassis without modification.
- Bench tested on actual hardware: We cycled this cell on an M15 R2 under sustained GPU load. The BMS held the voltage rail stable and passed BIOS battery authentication without triggering an unknown-device warning.
- First-cycle calibration on Alienware firmware: After installing, run the laptop down to hibernate-cutoff under normal use, then charge uninterrupted to 100%. This single discharge-charge cycle resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every cell swap on Alienware firmware.
Why the M15 R2 shuts down at 20–30% battery remaining after a cell swap
The Alienware BIOS uses a fuel gauge IC that builds a charge map against the original cell's EEPROM data. A new cell resets that map, so the IC loses track of where the actual voltage cliff sits. Under full CPU and discrete GPU load, current draw spikes sharply, and the new cell's voltage drops faster than the stale map predicts — triggering an emergency shutdown well above 0%. Running two or three full discharge-to-hibernate cycles re-trains the fuel gauge IC against the new cell's actual chemistry and eliminates the premature cutoff.
BIOS reporting wrong Wh rating after replacement cell is installed
The Wh figure shown in BIOS and Dell SupportAssist is read from the cell's EEPROM, not measured live. If the replacement cell's EEPROM carries a rated Wh value that differs from the original OEM figure, the system will display the stored number regardless of actual capacity. This is a data field mismatch — it does not affect charging behaviour or output voltage. To confirm the cell is functioning correctly, check that BIOS shows the battery voltage at or near 11.4V and that charge current is flowing normally.
