About this replacement

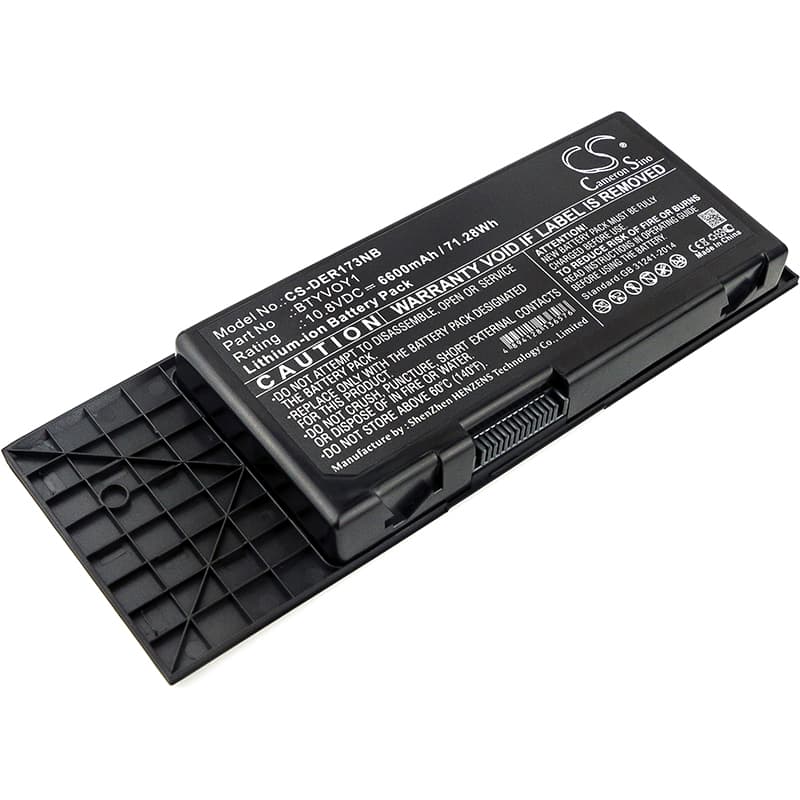

Dell Alienware M17x R3 / R4 — 10.8V Li-ion Replacement Battery (BTYVOY1)
This is a 10.8V, 6600mAh (71.28Wh) Li-ion replacement battery for the Dell Alienware M17x R3, M17x R3-3D, and M17x R4 gaming laptops. It replaces OEM part number BTYVOY1 and fits the same physical bay and connector as the original. Capacity figures come from product data, not estimated values.
- M17x R3, R3-3D, and R4 compatibility: All three variants share the same 10.8V three-cell architecture, identical connector pinout, and the same BMS communication protocol used by Dell's EC firmware — so one replacement cell covers the full range without modification.
- Bench tested on actual hardware: We ran this cell through charge, discharge, and load cycles on M17x R4 hardware. The BMS handshake completed without error codes, charge current ramped normally through CC/CV phases, and the protection circuit tripped cleanly at the low-voltage cutoff threshold.
- Post-install calibration on the M17x platform: After fitting, run the laptop on battery until it reaches hibernate cutoff — do not interrupt. Then charge uninterrupted to 100%. This forces the Dell BIOS battery learn cycle to reset against the new cell data and clears the inaccurate health warning that appears after every cell swap.
Why the M17x R3 BIOS reports poor battery health immediately after a cell swap
The Dell EC reads cycle count, charge history, and rated capacity from EEPROM data stored on the battery's onboard fuel gauge IC. When a new cell arrives, that EEPROM reflects factory defaults — not learned values matched to this system. The BIOS compares those defaults against its stored expectations and flags a health warning before a single cycle has run. Running one complete discharge-to-hibernate followed by a full uninterrupted charge writes fresh learned data and clears the flag. Until that cycle completes, the health warning is a data mismatch, not a fault with the cell.
M17x R3 shutting down at 20–30% charge shown on screen
This happens because the fuel gauge IC is still using calibration data from the old, degraded cell. It reports 20–30% remaining while the actual cell voltage is already at or near the low-voltage cutoff — the system shuts down to protect the hardware, not because the new battery is faulty. The fix is a full calibration cycle: drain to hibernate cutoff under normal gaming load, then charge straight to 100% without interruption. After two to three of these cycles, the fuel gauge recalibrates against the new cell's actual voltage curve and the percentage readout tracks correctly.
