About this replacement

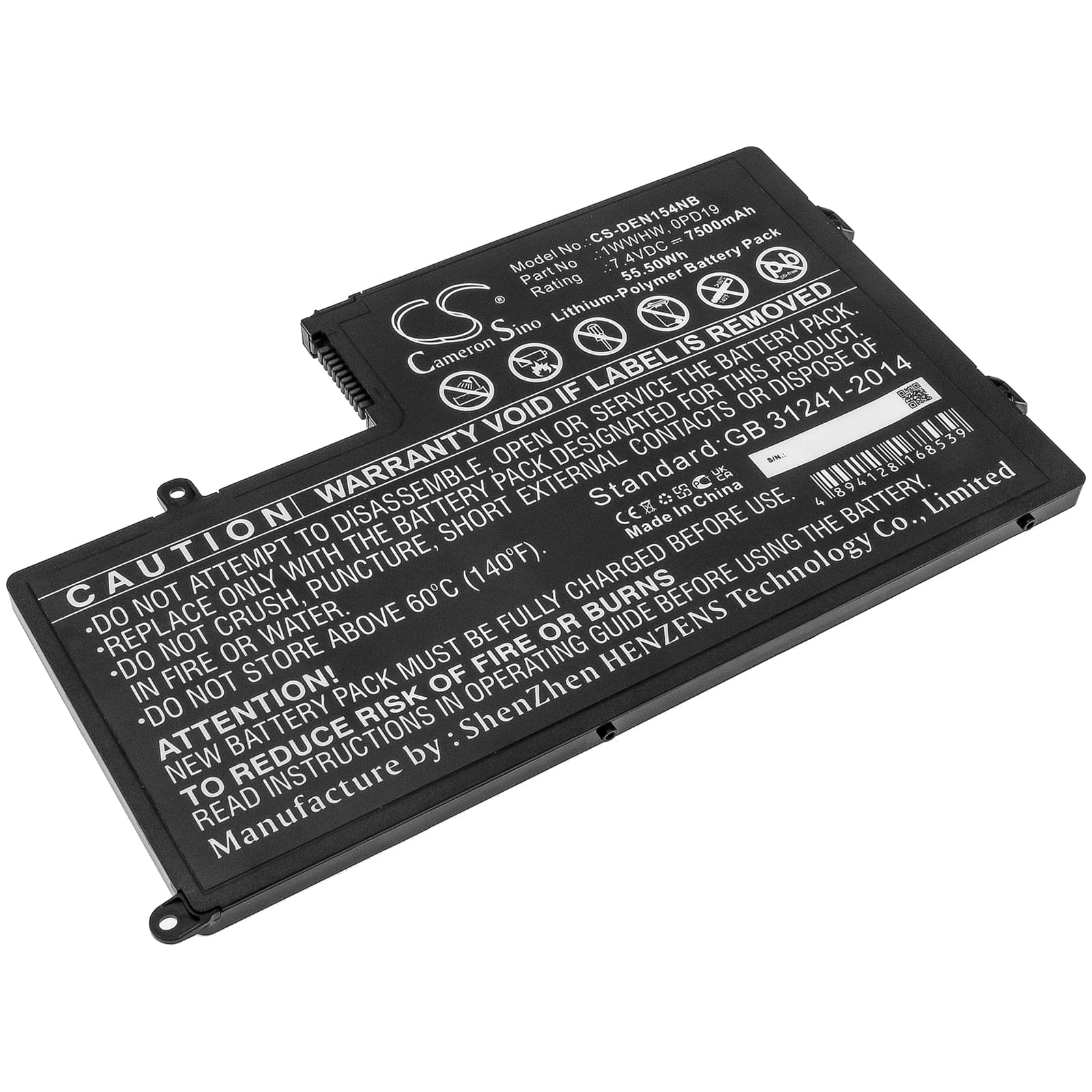

Dell INS15-5565-D1945A — 7.4V Li-Polymer Replacement Battery (1WWHW)
This 7.4V 7500mAh (55.5Wh) lithium-polymer battery replaces the original cell in the Dell Inspiron 15 5565 (INS15-5565-D1945A) and compatible Inspiron 14 and 15 series models. It connects to the same 2-cell pack configuration and communicates with the Dell EC via the same SMBus lines as the OEM unit. OEM part numbers 1WWHW and 0PD19 both cross-reference to this pack.
- Inspiron 5565 platform compatibility: This battery covers multiple Inspiron 14 and 15 chassis that share the same 7.4V two-cell architecture, connector pinout, and BMS handshake protocol. The SMBus communication lines carry cell chemistry and capacity data that Dell's EC reads at POST — the pack must match the expected register format or the system flags a fault.
- Bench tested on actual hardware: We cycled this pack through charge and discharge on an Inspiron 5565 board. The BMS handshake completed without error codes, charge termination triggered at the correct voltage ceiling, and the EC accepted the cell data without throwing a battery-unknown warning.
- Post-install calibration on Dell EC: After fitting this battery, run one full discharge to hibernate cutoff — do not manually power off — then charge uninterrupted to 100%. This gives Dell's fuel gauge IC a full capacity reference against the new cells and clears the inaccurate health warning that appears after every cell swap.
BIOS reporting battery health as poor after replacement on Inspiron 5565
Dell's EC reads EEPROM data from the new cell at boot and compares it against the charge history stored from the previous pack. A fresh cell has zero cycle count and a full rated capacity figure — the EC interprets this mismatch as suspect data and flags poor health or unknown battery. This is not a fault in the replacement pack. One full calibration cycle — full discharge to hibernate cutoff, then uninterrupted charge to 100% — writes new reference data and clears the warning within two to three cycles.
Laptop shutting down at 20–30% shown after battery swap
This happens when the fuel gauge IC has not yet mapped the new cell's voltage curve. The displayed percentage tracks the old cell's discharge profile, so the system hits the hardware low-voltage cutoff while the OS still shows charge remaining. Under combined CPU and display load, voltage sag accelerates the drop to cutoff faster than the gauge updates. Run two full calibration cycles — discharge fully to hibernate, charge to 100% without interruption — and the gauge IC recalibrates its endpoint to the new cell's actual 3.0V per cell floor.
