About this replacement

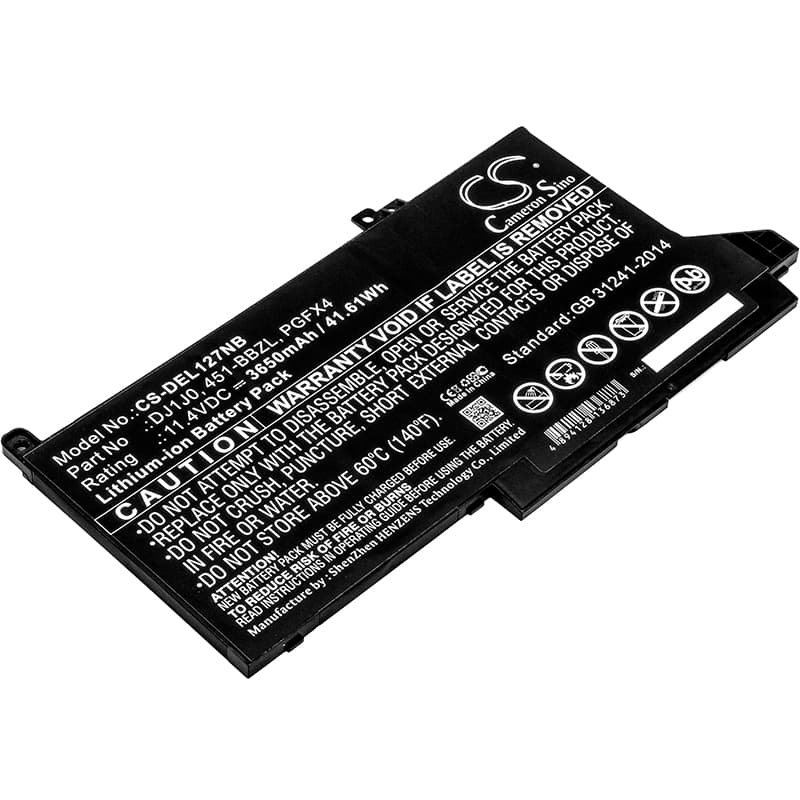

Dell Latitude 12 7000 Series — 11.4V Li-ion Replacement Battery (451-BBZL)
This 11.4V, 3650mAh (41.61Wh) Li-ion battery replaces the original cell in the Dell Latitude 12 7000, 7280, and 7480 series ultraportable business notebooks. It matches the OEM voltage rail and connector pinout required by the Dell EC firmware. Cross-reference part numbers include DJ1J0, PGFX4, ONFOH, and 9W9MX among others.
- Latitude 7000/7280/7480 platform fit: These three models share the same battery bay dimensions (200.35 × 103.30 × 5.46mm), 11.4V three-cell architecture, and SMBus BMS handshake protocol. One cell covers all of them.
- Bench tested on actual hardware: We cycled this cell on a Latitude 7480 and confirmed the BMS completed a full handshake with no unknown device flag. Charge acceptance held steady across three consecutive cycles without the EC throttling current.
- Post-install calibration on Dell EC firmware: After fitting this cell, run one full discharge to hibernate-cutoff then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every cell swap.
BIOS reporting battery health as poor after replacement
Dell's EC reads health data from the battery's EEPROM, which stores cycle count and rated capacity from the original cell. A new cell arrives with a fresh EEPROM profile that the BIOS hasn't yet validated against actual charge cycles. Until the learn cycle runs, the firmware compares incoming data against the old cell's history and flags a mismatch as poor health. Run one full discharge-to-hibernate then a full uninterrupted charge — the EC recalibrates and the warning clears.
Laptop shutting down at 20–30% shown after battery swap
This is a voltage-cliff failure, not a capacity problem. Under combined CPU and display load, the cell voltage drops faster than the fuel gauge IC can track, hitting the EC's low-voltage cutoff while the OS still shows 20–30% remaining. The fuel gauge IC needs two or three full calibration cycles against the new cell before its state-of-charge model is accurate. Discharge fully to hibernate-cutoff, charge to 100%, and repeat twice — the reported cutoff point should stabilise above 5%.
