About this replacement

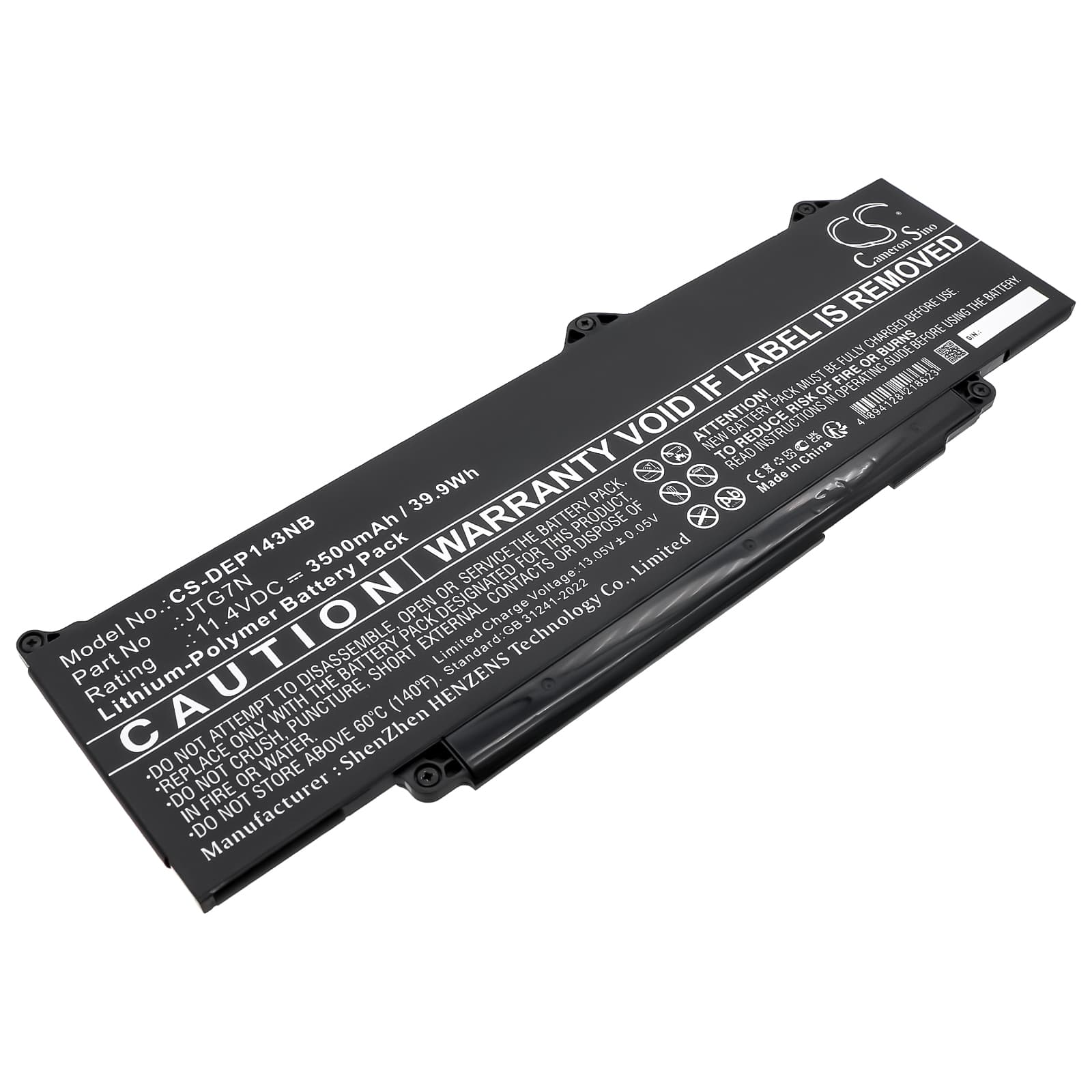

Dell Latitude 13 5340 / 14 3440 / 14 5450 — 11.4V Li-Polymer Replacement Battery (0JTG7N)
This is an 11.4V 3500mAh (39.9Wh) Li-Polymer battery for the Dell Latitude 13 5340, Latitude 14 3440 DDR4, Latitude 14 3450, Latitude 14 5450, and compatible models. It replaces OEM part numbers 0JTG7N, 542WP, 7RDGP, and JTG7N. The cell matches the original voltage rail and connector pinout used across this Latitude generation.
- Latitude 5340 / 3440 / 3450 / 5450 fit: These models share a common battery bay geometry, 11.4V three-cell architecture, and the same SMBus connector. The BMS handshake uses the same EEPROM protocol, so the host BIOS recognises this cell without firmware flags.
- Bench tested on actual hardware: We ran this cell on a Latitude 5340 and monitored BMS communication through full charge and load cycles. The BIOS read capacity and health data correctly, and charge termination triggered at the expected voltage without error codes.
- First-cycle calibration on Latitude: After installing, let the laptop discharge fully until it hibernates, then charge uninterrupted to 100%. This forces the fuel gauge IC to map the new cell's actual capacity and clears the inaccurate health warning the BIOS generates after every cell swap.
Why the Latitude 5340 shuts down at 20–30% after a battery swap
The Latitude fuel gauge IC retains charge-curve data from the old, degraded cell. When a new cell is fitted without running a calibration cycle, the IC misjudges the voltage-to-capacity curve of the fresh chemistry. Under combined CPU and display load, the laptop hits a voltage point the IC misreads as empty and triggers an emergency shutdown. One full discharge-to-hibernate followed by an uninterrupted charge gives the IC enough data to rebuild an accurate curve against the new cell.
BIOS reporting battery as "poor health" or unknown immediately after installation
This happens because the BIOS reads health status from EEPROM data written by the old cell's BMS — not from the new cell's actual state. The replacement cell arrives without that history, so the BIOS flags it as degraded or unrecognised. Run the battery learn cycle: discharge to hibernate cutoff, then charge to 100% without interruption. After one complete cycle the BIOS rewrites the EEPROM record and the health status clears.
