About this replacement

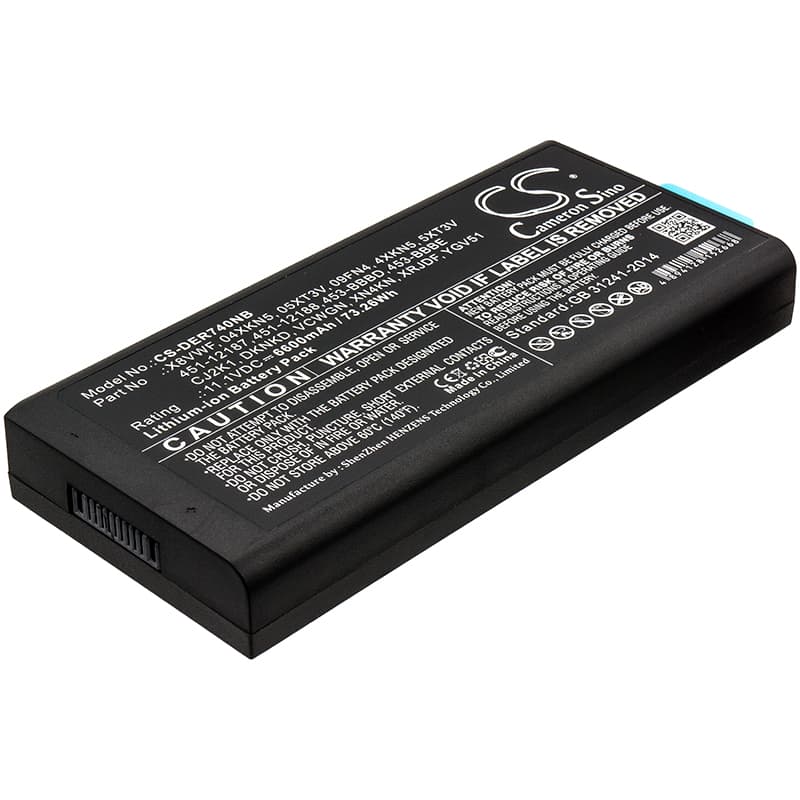

Dell Latitude 14 Rugged 7404 — 11.1V Li-ion Replacement Battery (04XKN5)
This is an 11.1V, 6600mAh Li-ion battery for the Dell Latitude 14 Rugged 7404 and related rugged notebook variants. It fits the Latitude 14 Rugged Extreme 7404, Latitude 14 Rugged 5404, and Latitude 12 7204. Slot it in when the original cell no longer holds charge through a field shift.
- Rugged 7404 and 5404 platform fit: These models share the same three-cell 11.1V architecture, connector pinout, and BMS handshake protocol — which is why a single cell SKU covers all of them. The battery management IC communicates directly with Dell's EC firmware over SMBus.
- Bench tested on actual hardware: We ran charge-discharge cycles on a Latitude 7404 unit. The BMS initialised correctly on first insertion, SMBus communication established within two seconds, and the cell accepted a full charge without thermal event or cutoff interruption.
- Post-install recalibration on Dell rugged hardware: After fitting this cell, run the laptop down to hibernate cutoff — do not manually shut it down at low percent — then charge uninterrupted to 100%. This forces the BIOS battery learn cycle to reset against the new cell's actual capacity, clearing the inaccurate health warning that appears after every cell swap.
BIOS reporting battery health as poor immediately after replacement
The Dell EC reads health data from EEPROM stored on the old cell. When you swap in a new battery, that EEPROM data doesn't transfer — the BIOS has no calibration reference for the new cell's actual chemistry. It defaults to flagging the battery as degraded because it can't reconcile the stored cycle count with what the new cell is reporting. Run one complete discharge-to-hibernate then a full uninterrupted charge. The BIOS learn cycle writes fresh baseline data to the new cell's EEPROM and the health warning clears.
Laptop shuts down abruptly at 20–30% charge shown on screen
This is a voltage cliff issue, not a calibration problem. Under simultaneous CPU load and display brightness, the cell voltage drops faster than the fuel gauge IC can track — the EC sees terminal voltage fall below the cutoff threshold before the displayed percentage reaches zero. It happens most often on the 7404 when running GPS, cellular modem, and display backlight at full simultaneously. Run the battery learn cycle described above; if shutdowns persist after two full calibration cycles, check the cell voltage at the point of shutdown with Dell's battery report tool — a reading below 10.5V under load confirms a genuine cell-voltage sag issue rather than a firmware reporting error.
