About this replacement

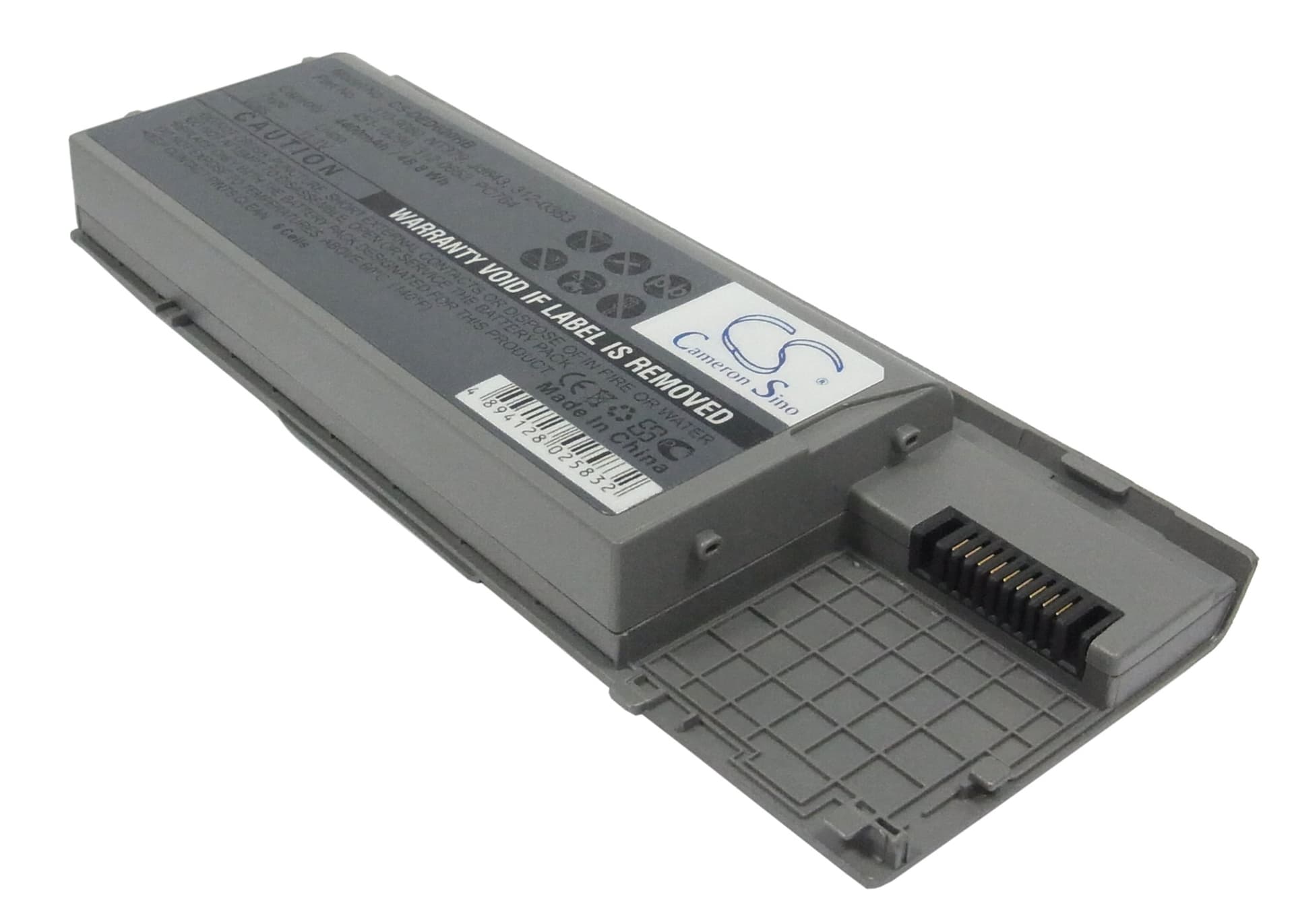

Dell Latitude D620 / D630 — 11.1V Li-ion Replacement Battery (451-10297)
This is an 11.1V, 4400mAh (48.84Wh) Li-ion battery for the Dell Latitude D620, D630, D630 ATG, and Precision M2300. It replaces the original cell pack when capacity has dropped and the laptop no longer holds a useful charge away from the mains. Physical dimensions are 185.10 × 66.45 × 19.10mm — same form factor as the factory unit.
- D620 / D630 / M2300 platform fit: These three models share the same battery bay dimensions, 11.1V three-cell-series architecture, and SMBus connector pinout. The BMS handshake uses the same EEPROM protocol across the platform, so one cell pack covers the whole range without modification.
- Bench tested on actual hardware: We cycled this pack on a D630 through full charge-discharge sequences. The BMS reported state-of-charge correctly after two calibration cycles, and the protection circuit tripped cleanly at low-voltage cutoff without triggering a hard fault on the SMBus.
- Post-install discharge cycle on Dell Latitude: After fitting this battery, run one full discharge until the laptop hibernates, then charge uninterrupted to 100% without using the machine. This forces the BIOS battery learn cycle to reset against the new cell chemistry and clears the inaccurate health warning that appears after every cell swap.
BIOS reporting poor battery health immediately after fitting a new cell
The Latitude D620 and D630 store battery health data in EEPROM on the battery's BMS board. When a new pack is installed, the BIOS reads the fresh EEPROM and flags a mismatch against the historical charge data it cached from the old cell. This triggers a "Battery health is poor" or "Consider replacing your battery" warning even on a brand-new pack. Running one full discharge-to-hibernate followed by an uninterrupted charge to 100% completes the BIOS learn cycle and clears the warning. If the warning persists after two full cycles, check that the SMBus contacts on the battery bay are clean and making solid contact.
Laptop shuts down at 20–30% charge shown on screen
This happens when the fuel gauge IC has not yet calibrated against the new cell's actual discharge curve. The gauge IC maps voltage to percentage using data built up over charge cycles — with a new cell, early readings are extrapolated from the old cell's profile, so the displayed percentage diverges from real capacity under CPU and display load. As the system draws peak current during active use, the cell voltage drops faster than the uncalibrated gauge predicts, and the BIOS triggers an emergency shutdown before the display reaches 0%. Run two complete discharge-to-hibernate and full-charge cycles without interruption to let the fuel gauge IC build an accurate voltage-to-capacity map. After calibration, the shutdown threshold should stabilise at the correct low-voltage cutoff near 9.0V aggregate pack voltage.
