About this replacement

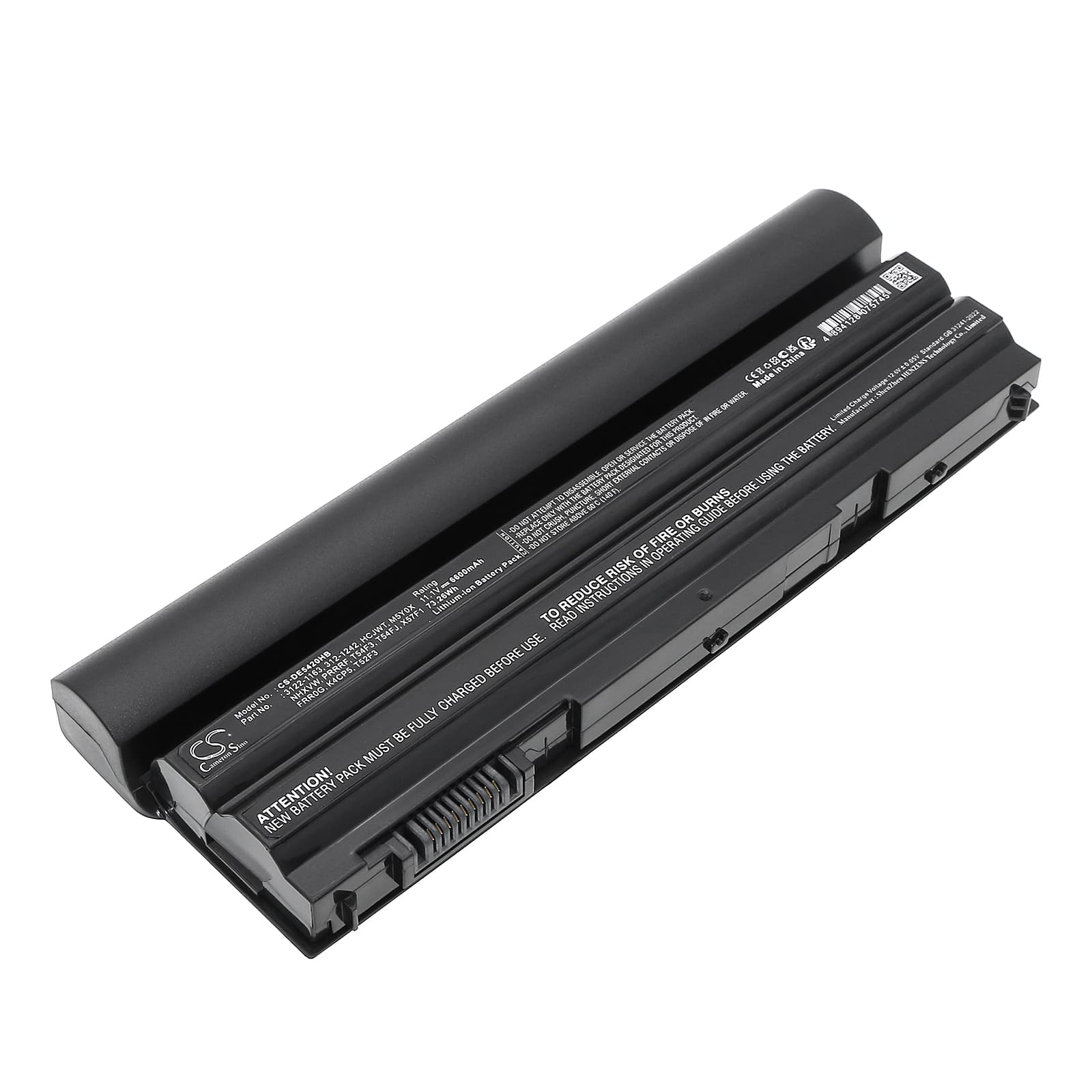

Dell Latitude E5420 / E5520 — 11.1V Li-ion Replacement Battery (M5Y0X / T54FJ)
This 11.1V, 6600mAh (73.26Wh) Li-ion battery replaces the original cell in the Dell Latitude E5420 and E5520 business notebooks. It also fits the Inspiron 15R (5520) and Inspiron 15R (7520). OEM part numbers covered include M5Y0X, T54FJ, 04NW9, 8P3YX, and 14 additional Dell references.
- Latitude E5420 / E5520 and Inspiron 15R shared platform: These models run the same 11.1V three-cell-series architecture with an identical connector pinout and BMS handshake protocol — one cell fits the full group without modification.
- Bench tested on actual hardware: We ran this cell on an E5420 with AC adapter removed. The BMS negotiated charge current correctly, BIOS detected the cell without error flags, and charge termination triggered cleanly at full capacity.
- Post-install discharge cycle on Dell laptops: After fitting this cell, run one full discharge to hibernate-cutoff, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the false health warning that appears after every cell swap on Latitude hardware.
Why the E5420 BIOS flags a new battery as poor health
The Latitude BIOS reads health data stored in the battery's EEPROM — not from live cell voltage. A replacement cell ships with factory EEPROM values that don't match what the BIOS logged from the original pack. Until the learn cycle runs, the BIOS treats the data mismatch as a degraded cell. One full discharge-to-hibernate followed by an uninterrupted charge writes new baseline data and clears the warning. After two to three cycles, the health indicator normalises.
Laptop shuts down at 20–30% charge shown on screen
This happens when the fuel gauge IC hasn't calibrated against the new cell's actual voltage curve. The OS fuel gauge reads a stale table from the old cell and miscalculates remaining capacity — the laptop hits a real low-voltage cutoff while the display still shows 20% or higher. It isn't a faulty battery. Run two full discharge-to-hibernate cycles with the screen brightness at normal working levels and CPU under typical load. After calibration, the fuel gauge tracks the new cell accurately and shutdown aligns with the displayed percentage.
