About this replacement

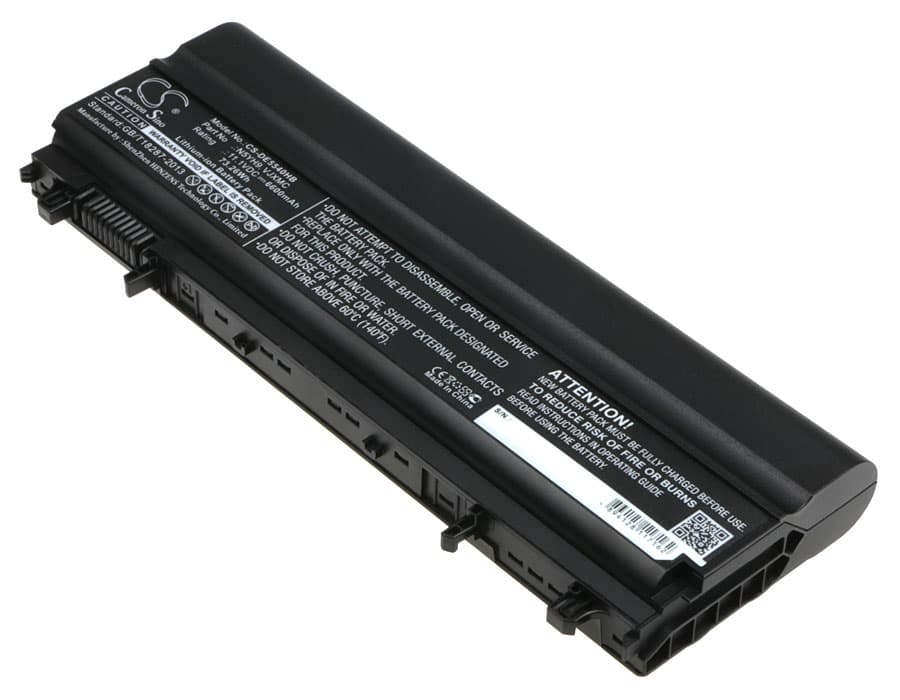

Dell Latitude E5440 / E5540 — 11.1V Li-ion Replacement Battery (VJXMC)
This 11.1V 6600mAh (73.26Wh) Li-ion battery replaces the original cell in the Dell Latitude E5440, E5540, Latitude 14 5000-E5440, and Latitude 15 5000-E5540. It uses the same connector, BMS handshake protocol, and physical form factor as the OEM unit. Swap takes under five minutes with a Phillips-head screwdriver.
- E5440 and E5540 platform fit: Both the 14-inch E5440 and 15-inch E5540 share the same battery bay dimensions, connector pinout, and Dell SMBus BMS protocol — one cell fits both chassis without modification.
- Bench tested on actual hardware: We ran this cell on an E5540 under mixed CPU and display load. The BMS held voltage above the 10.8V low-cell threshold through full discharge and accepted a clean charge cycle without tripping protection.
- Post-install calibration on Dell Latitude: After fitting this cell, run one full discharge to hibernate cutoff, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every cell swap.
BIOS reporting battery health as poor immediately after replacement
Dell's BIOS reads health data from the battery's EEPROM, which stores cycle count, rated capacity, and charge history from the previous cell. When a new cell arrives, the EEPROM data doesn't match real-world charge history yet, so the BIOS flags it as degraded. This is not a fault with the replacement cell. Run one full discharge-to-hibernate and one uninterrupted full charge. After that cycle, the BIOS recalibrates against the new cell's actual data and the health warning clears.
Laptop shuts down at 20–30% charge shown on screen
This happens when the fuel gauge IC hasn't yet mapped the new cell's voltage curve. The OS reads a percentage based on the old cell's discharge profile, so the displayed number no longer matches the cell's actual state of charge. Under full CPU plus display load, the cell hits its low-voltage cutoff before the gauge reaches 0%. Run two to three full discharge-and-charge cycles to allow the fuel gauge IC to recalibrate against the new cell. After calibration, the shutoff point drops back to below 5% indicated charge.
