About this replacement

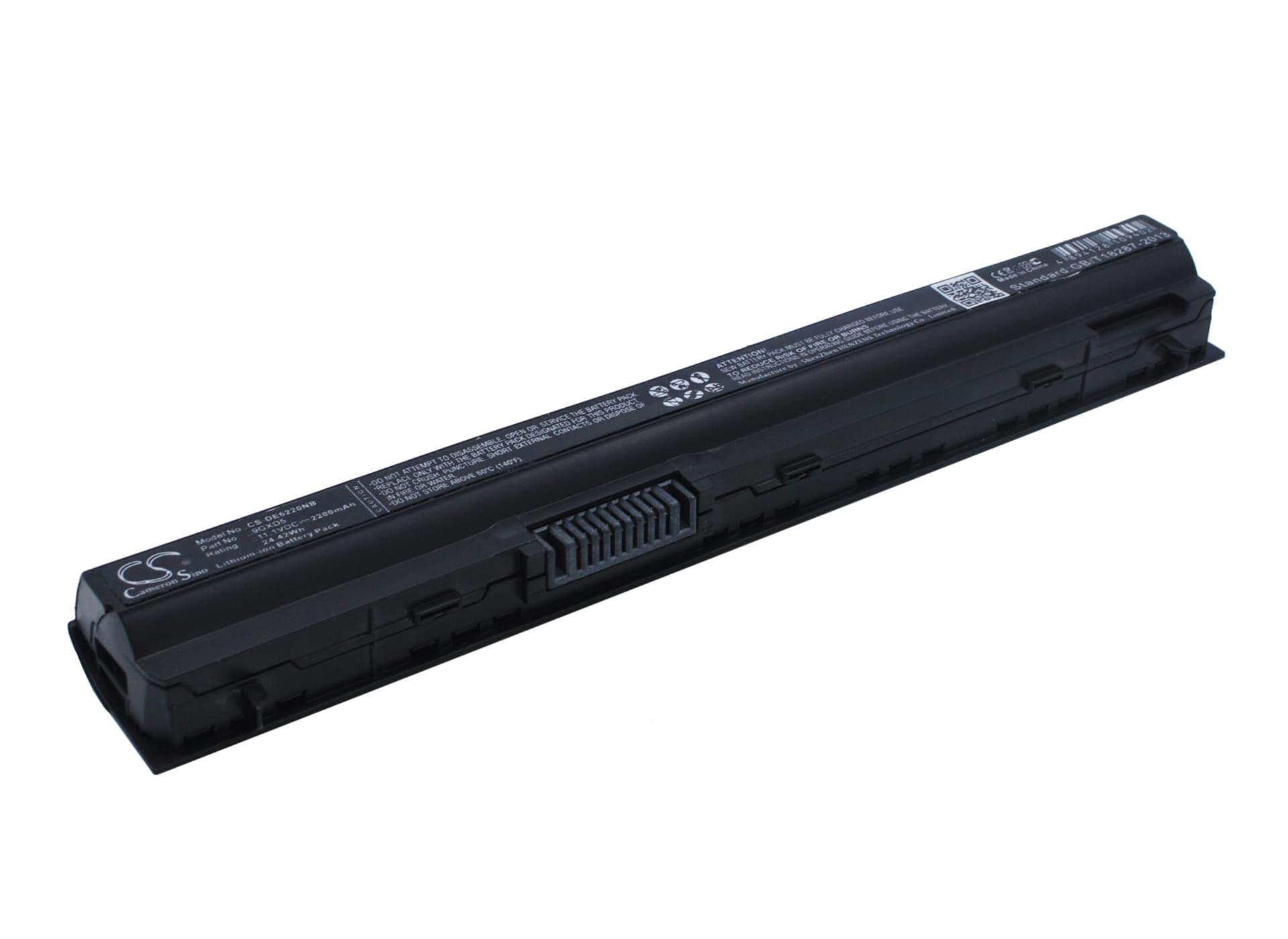

Dell Latitude E6120 / E6220 / E6230 / E6320 — 11.1V Li-ion Replacement Battery (9GXD5)
This is an 11.1V Li-ion replacement battery rated at 2200mAh (24.42Wh) for the Dell Latitude E6120, E6220, E6230, and E6320 series laptops. It matches the OEM voltage and connector spec for these ultraportable business notebooks. The battery installs directly with no tools and uses the same 9GXD5 part number cross-reference as the original Dell cell.
- E6120 / E6220 / E6230 / E6320 compatibility: These four Latitude models share the same 11.1V battery bay, connector pinout, and BMS communication protocol. The 9GXD5 part number spans all four because Dell used a single battery platform across this E6x20/E6x30 generation. OEM part numbers 9GXD5, R8R6F, RFJMW, and others in the 312-1239 / 451-11703 family all cross to this cell.
- Bench tested on actual hardware: We ran this cell on an E6220 and E6320 chassis. The BMS handshake completed on first boot, the fuel gauge IC registered the cell, and the charge controller cycled through to a full 100% charge without interruption or error flags.
- BIOS learn cycle after install: After fitting this battery, run the laptop down to hibernate cutoff on battery alone, then charge it uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every cell swap on Dell Latitude hardware.
Why the E6120 BIOS reports "Battery Not Recommended" after a new cell is fitted
Dell's BIOS reads EEPROM data embedded in the battery pack to verify cell identity. When a new cell arrives, that EEPROM data does not match the history the BIOS logged for the old pack, so it flags the battery as unrecognised or not recommended. This is a firmware check, not a fault with the replacement cell. Running one full discharge-to-hibernate followed by an uninterrupted charge to 100% lets the BIOS re-learn the cell and clears the warning on subsequent boots.
Laptop shuts down at 20–30% charge shown on new battery
This happens when the fuel gauge IC has not yet calibrated against the new cell's actual voltage curve. The gauge miscalculates remaining capacity and the laptop hits a voltage cliff under combined CPU and display load before the reported percentage reaches zero. It is not a defective cell. Complete two to three full discharge-and-charge cycles — after the second cycle, check that the BIOS reports a static Wh value near 24Wh and that the OS gauge tracks steadily down to below 10% before the next cutoff.
